Star Tech Headphone and microphone headset adapter 3.5mm M/F

Have you recently purchased a newer laptop or Ultrabook and now you can’t figure out where to plug in your favorite headset?

Most new laptops and Ultrabooks come equipped with a single 3.5mm 4-position (4pin) audio port that supports both audio input and output. A great number of headsets on the market come equipped with two separate headphone and microphone connectors that are not compatible with this new configuration.

The MUYHSMFF headset adapter features two 3.5mm 3-position ports that provide a separate headphone and microphone connection that can be connected to the single audio port on your laptop. Alternatively, you can also connect a separate microphone and powered speakers if you prefer to use Skype or chat online without using a headset.

Headset Connectivity

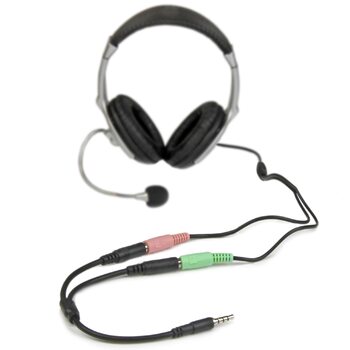

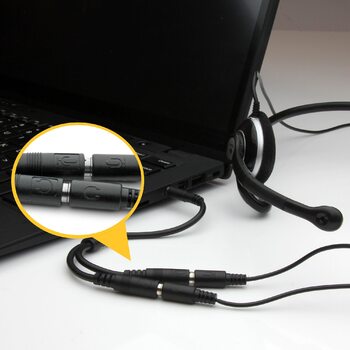

Simply connect the headphone plug from your headset into the audio output port marked with the headphone symbol, and connect the microphone plug into the audio input port marked with the microphone symbol. Plug the adapter into audio port on your laptop and you’re all set.

Microphone and Powered Speaker Connectivity

Want to work or game without using a headset?

You can also connect a microphone and powered speakers to your laptop using the adapter. Just plug in your microphone into the audio input port marked with the microphone symbol, and plug your powered speakers into the audio output port marked with the headphone symbol, and connect the adapter to the audio port on your laptop.

Keep in touch while you travel

Are you travelling for work or taking a trip?

The headset adapter features a compact and sturdy design that makes it the perfect solution for mobile applications.

Tuck the adapter in with your tablet or slip it inside another carrying case. It works great with tablets and smartphones that have a single audio port. Just connect the headphone and microphone plugs from your headset into the adapter, connect the adapter to your mobile device and start talking.

(MUYHSMFF)

This item comes with 5 years warranty

Physical Characteristics
Product Length  : 200 mm [7.9 in]
Product Width  : 6 mm [0.2 in]
Weight of Product  : 12 g [0.4 oz]
Wire Gauge  : 28 AWG

Prominence
Description CDW 75 - 1st Line  : StarTech.com Headset Adapter, Microphone and Headphone Splitter

Special Notes / Requirements
Note  : 3.5 mm Mini-Jack (4 position) male is configured per CTIA Standard

What's in the Box

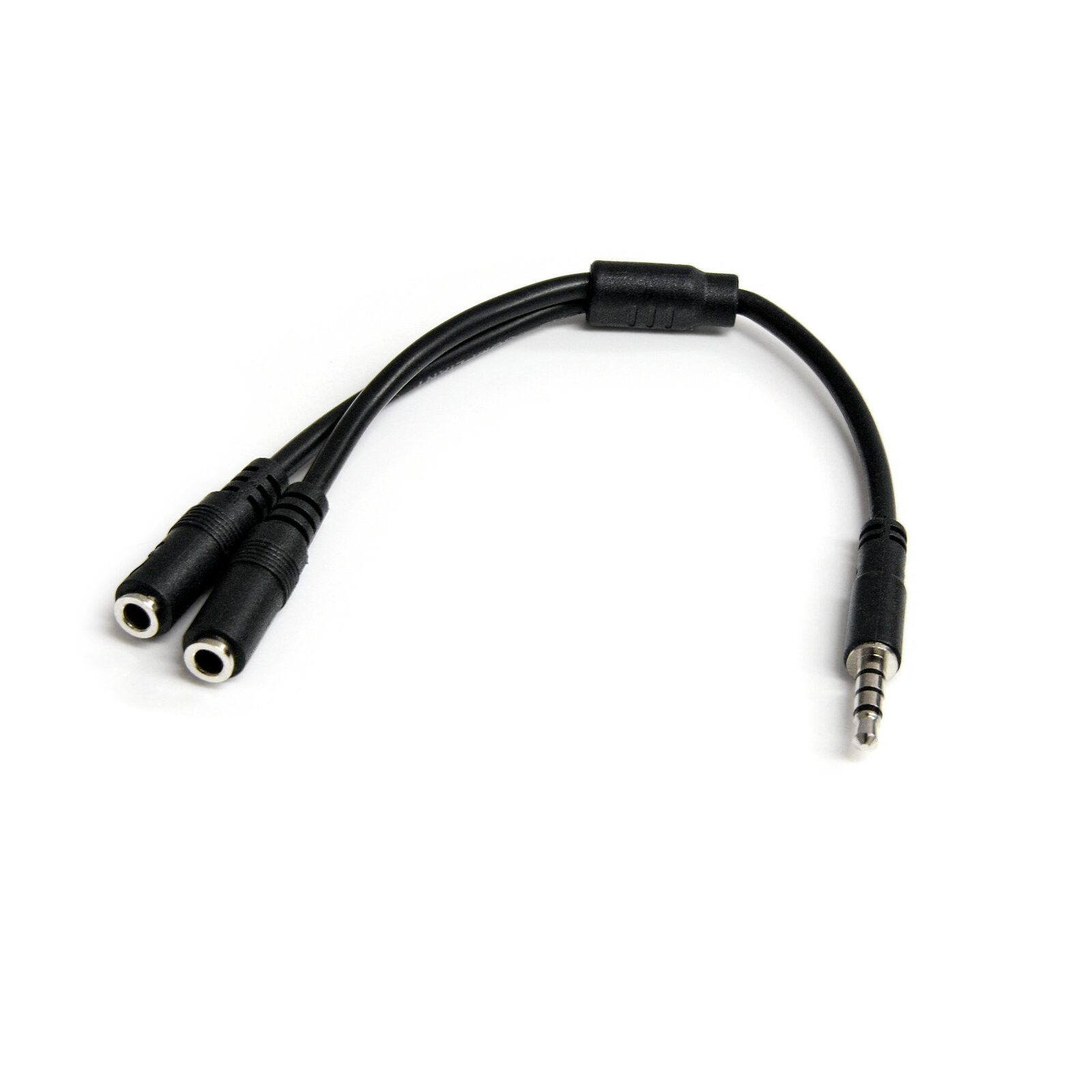

Included in Package  : 3.5mm 4 Pin to 2x 3 Pin 3.5mm Headset Splitter Adapter - M/F

Physical Characteristics
Product Height  : 0.6 cm [0.2 in]
Connector Style  : Straight
Color  : Black
Cable Length  : 200 mm [7.9 in]

Packaging Information
Shipping (Package) Weight  : 14 g [0.5 oz]
Package Width  : 9 mm [0.4 in]
Package Quantity  : 1
Package Length  : 12.5 cm [4.9 in]
Package Height  : 7 mm [0.3 in]

Hardware
Connector Plating  : Nickel
Cable Jacket Material  : PVC - Polyvinyl Chloride

Environmental
Storage Temperature  : -15°C to 75°C (-59°F to 167°F)
Humidity  : 30~60% RH

Connector(s)

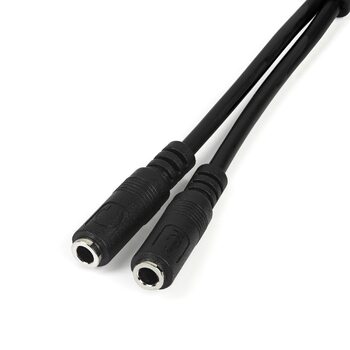

Connector B  : 3.5 mm Mini-Jack (3 Position) Female

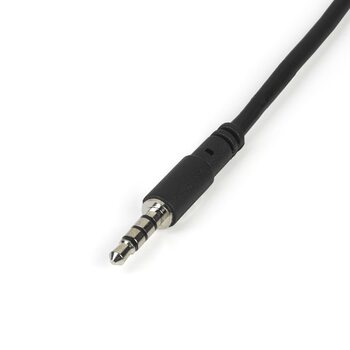

Connector A  : 3.5 mm Mini-Jack (4 Position) Male

Model # MUYHSMFF
Barcode # 065030843515
Brand Star Tech
Shipping Weight 0.0100kg
Shipping Width 0.130m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000008000m3
Type Headset Adapter
