Star Tech Full Motion TV Wall Mount - For up to 80" VESA Displays

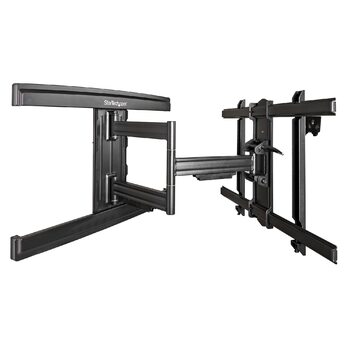

With its contemporary design, featuring a long extension arm with a large swivel range, this full motion TV wall mount for large-screen displays is the perfect choice for versatile viewing. You can extend the swiveling arm out to adjust your screen position, making it easy to view your display from numerous angles within the room.

Save Space

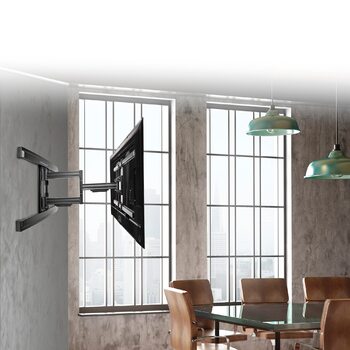

This adjustable wall mount TV bracket is ideal for a meeting space, lobby, boardroom, classroom or other venues. The monitor mount provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while freeing up valuable space. 

Robust Steel Construction

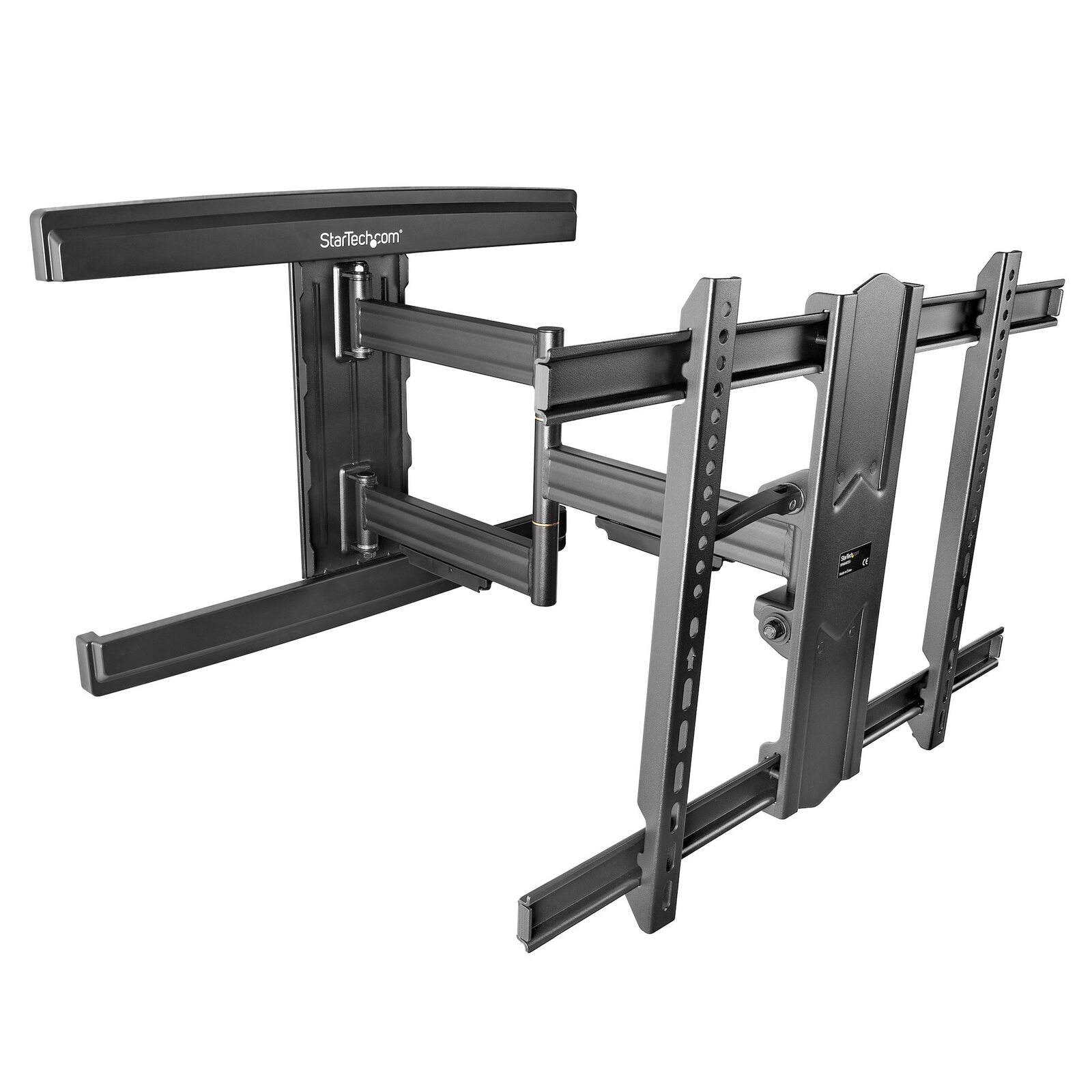

Engineered from high-grade steel, the flat-screen TV wall mount securely supports VESA mount displays, including curved TVs, 37" to 80" with a weight capacity of 110 lb. (50 kg).

Full-Motion Adjustment

With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 25.5" (65 cm) to adjust the position of your display. Swivel the arm with ease, up to 90 degrees to the left or right, to position your TV for comfortable viewing.

You can also retract the arm back, to nest against the wall. With its low-profile design, the articulating TV wall mount enables your display to sit just 2.8" (70 mm) from the wall.

Find the Right Viewing Angle

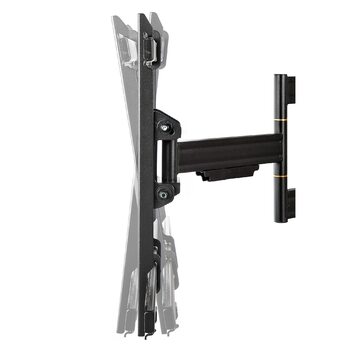

Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare.

The tilting TV wall mount also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after you've installed it, to ensure your display is level.

Easy to Install

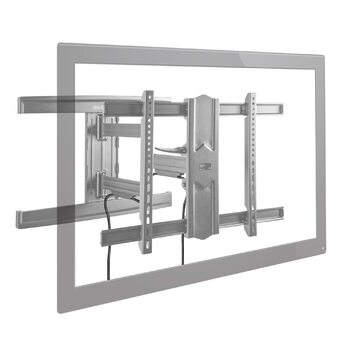

The universal swivel TV wall mount is easy to install. The television mounting brackets for flat screen displays feature a post-installation lateral shift, to help adjust and center the mount on the wall, even with off-center studs. Cable management keeps cables neatly organized.

(FPWARTS1)

This item comes with a 5 Years warranty

Packaging Information
Package Length: 740 mm [29.1 in]
Package Width: 546 mm [21.5 in]
Shipping (Package) Weight: 14220 g [502 oz]

Performance
Display Swivel: +90° / - 90°
Display Tilt: +2° / -15°
Fits Curved Display: Yes
Maximum Arm Extension: 650 mm [25.6 in]
Maximum Display Size: 80"
Minimum Arm Extension: 70 mm [2.8 in]
Minimum Display Size: 37"
Screen Level Adjustment: Screen Level Adjustment: +3° / -3°
Swivel / Pivot: +90° / -90°
Weight Capacity (Per Display): 50 kg [110.5 lb]

Physical Characteristics
Color: Black
Material: Steel
Product Height: 935 mm [36.8 in]
Product Length: 650 mm [25.6 in]
Product Width: 465 mm [18.3 in]
Weight of Product: 13000 g [458.9 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com TV Wall Mount for up to 80" VESA Mount Displays - Full Motion

What's in the Box
Included in Package: Decorative Covers : Hex Key : Large Spacers : M5 x 14 mm Screws : M6 x 14 mm Screws : M6 x 15 mm Screws : M6 x 30 mm Screws : M8 x 30 mm Screws

Packaging Information
Package Height: 95 mm [3.7 in]

Hardware
Wallmountable: Yes
VESA Hole Pattern(s): 600x400 mm : 400x400 mm : 400x300 mm : 400x200 mm : 300x300 mm : 300x200 mm : 200x200 mm : 200x100 mm
Mounting Options: Wall-Mount
Minimum Profile from Wall: 70 mm [2.8 in]
Cable Management: Yes
Articulating: Yes
# of Displays Supported: 1

What's in the Box
Included in Package: M8 x 50 mm Screws : Mounting Plates : Mounting Screws : Rectangular Washers : Round Washers, Large : Round Washers, Small : Small Spacers : TV Mounting Brackets : TV Wall Mount Assembly : User Manual : Wall Anchors : Wall Mounting Bracket : Wrench

Model # FPWARTS1
Barcode # 065030870337
Brand STAR TECH
Shipping Weight 14.2200kg
Shipping Width 0.740m
Shipping Height 0.100m
Shipping Length 0.550m
Shipping Cubic 0.040700000m3
Type Wall Mount
