4 X 2 HDMI 4K MATRIX SWITCHER 4K UHD 60Hz 4:4:4 18GBS

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

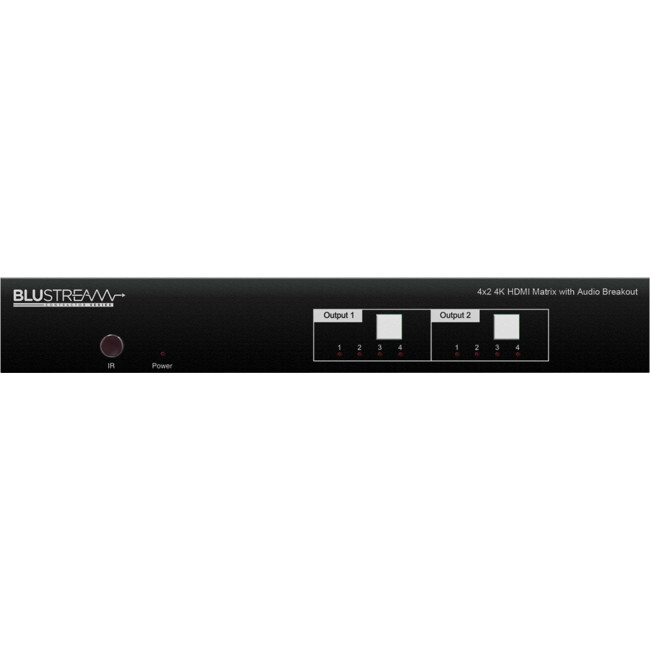

Our Contractor CMX42AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.

The CMX42AB supports HDMI2.0 and HDCP2.2, allowing distribution of four HDMI sources to two displays. This enables all sources to be viewed as required within a matrixconfiguration. The unit transmits all HDMI resolutions up toand including 4K 60Hz 4:4:4. The 4-Way matrix also includes audio breakout and EDID management.

Key Features:

  • Features 4x HDMI inputs which can be independently routedto 2x HDMI outputs
  • Supports HDMI2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
  • Control via front panel, IR and RS-232
  • IR routing
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP2.2 compliant

Specifications:

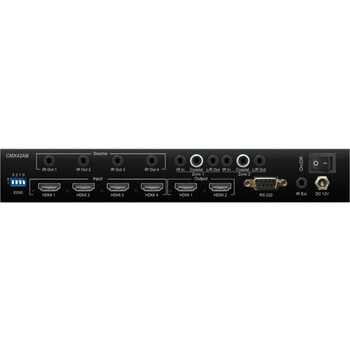

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
  • Video Output Connectors: 2x HDMI Type A, 19-pin, female, locking
  • Audio Output Connectors: 2x RCA (S/PDIF), 2x Analogue audio L/R (3.5mm stereo Jack)
  • RS-232 serial port: DB-9, female
  • IR Input ports: 3x 3.5mm stereo jack
  • IR Output ports: 4x 3.5mm mono jack
  • Mounting kit included
  • Unit Dimensions (WxDxH): 255mm x 104mm x 40mm (without feet or connections)
  • Unit Dimensions (WxDxH): 255mm x 115mm x 47mm (with feet and connections)
  • Shipping Weight: 1.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to60°C)
  • Power Supply: 12V/2A DC

Box Contents:

  • 1 x CMX42AB matrix
  • 1 x 12V/2A DC power supply

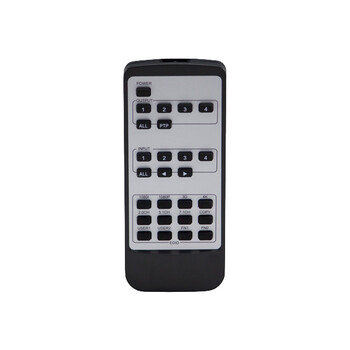

  • 1x Remote control
  • 4 x IR emitter
  • 3 x IR receiver
  • 1 x Mounting kit
  • 1 x Quick Reference Guide

(CMX42AB)

This item comes with a 12 months warranty

Model # CMX42AB
Barcode # 9340242002723
Brand BLUSTREAM
Shipping Weight 0.1600kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
Type Switcher
