70M HDBASET EXTENDER KIT WITH 2 WAY IR BLUSTREAM

70M HDBaseT Extender Set with Two Way IR

Features:

• HDMI v1.4 and HDCP compliant, support 1080p@60Hz, 3D, 4K
• Support 1080P@60Hz or VESA: 1920x1200@60Hz up to 70m (230ft)
• Dolby TrueHD and DTS-HD master audio pass through HDMIoutput
• Bi-Directional IR pass through
• POC, no power supply needed for the receivers
• With ESD Protection
• EIA/TIA-568-B termination (T568B) of cables is recommended for optimal performance
• Foxtel iQ2and iQ3 compatible

Specifications:

• Video Input Connectors TX: 1 x HDMI Type A, 19-pin, female,
• Video Input Connectors RX: 1x RJ-45
• Video Output Connectors TX: 1x RJ-45
• Video Output Connectors RX: 1 x HDMI Type A, 19-pin, female
• IR Input ports: 2x 3.5mm stereo jack, TX and RX
• IR Output ports: 2x 3.5mm stereo jack, TX and RX
• Dimensions (W x H x D): 104mm x 73mm x 27mm, without feet
• Shipping Weight: 0.2KG each
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°Cto 60°C)
• Power Supply: 12V/2A DC

Supplied with:

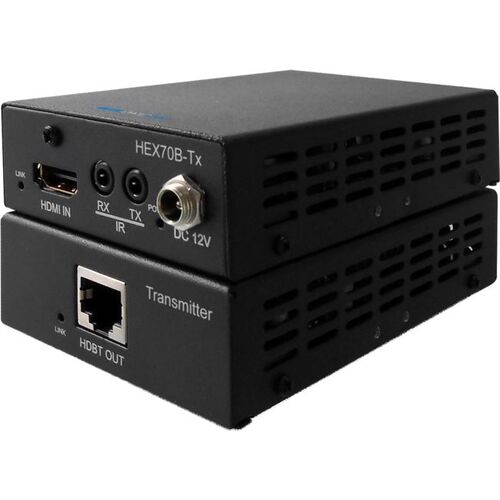

• 1 x HEX70B-Tx

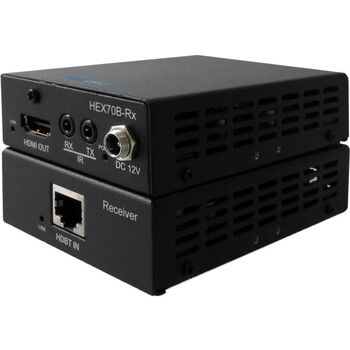

• 1 x HEX70B-Rx
• 4 x mounting ear
• 1 x 12V/2A power supply
• 1 x IR emitter cable
• 1 x IR receiver cable
