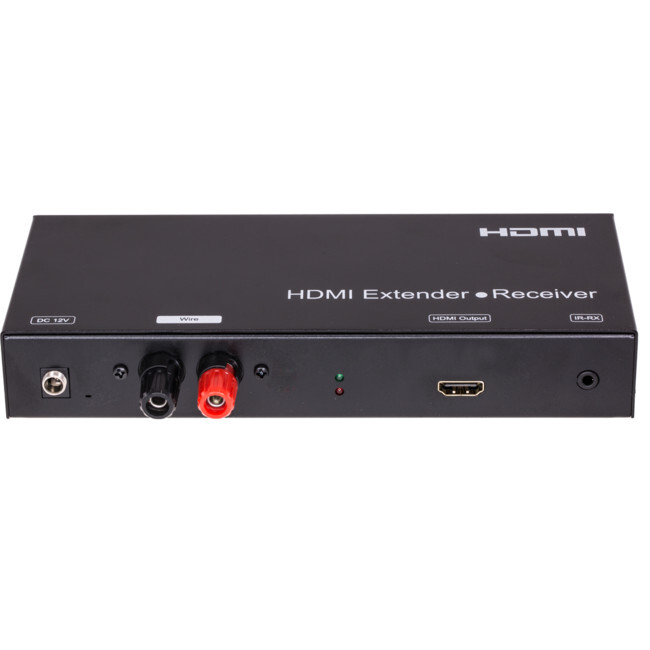

HDMI OVER ANY WIRE RECEIVER SPARE ONLY

Spare receiver for HDMIAW

Specifications:

• Operating Temperature Range: -5 to 35°C
• Operating Humidity Range: 5 to 90%RH (No condensation)
• Supported Audio Format: LPCM audio format
• Transmission Distance: 3800m via 2-conductor cable (Ideally 12AWG-19AWG)
• Supported Video Format:
  • DTV/HDTV: 480i/ 480p/ 576i/ 576p/ 720p/ 1080i/ 1080p
  • VESA: 800x600, 1024x768, 1280x768, 1280x960, 1280x1024
  • 1680x1050, 1920x1080, 1280x720, 1360x768, 1400x1050,1280x1024
• Connections on TX: 1x HDMI input, 1x HDMI loop out, IR-TX socket, 2x terminal post, power supply socket
• Connections on RX: 2x terminal post, 1x HDMI output, IR-RX socket, power supply socket
• Power Consumption: TX: 6.5 Watts, RX: 5.5 Watts
• Dimension: 206.2(L)x 110(W)x 33(H)mm
• IR Frequency: 38K- 56KHz
• Net Weight: TX: 545g, RX:548g

Note: This product can not be connected to 220V/380V highvoltage.
