1 CALL SURFACE MOUNT - SILVER EXTERNAL DOOR STATION AIPHONE

1 CALL SURFACE MOUNT - SILVER EXTERNAL DOOR STATION AIPHONE

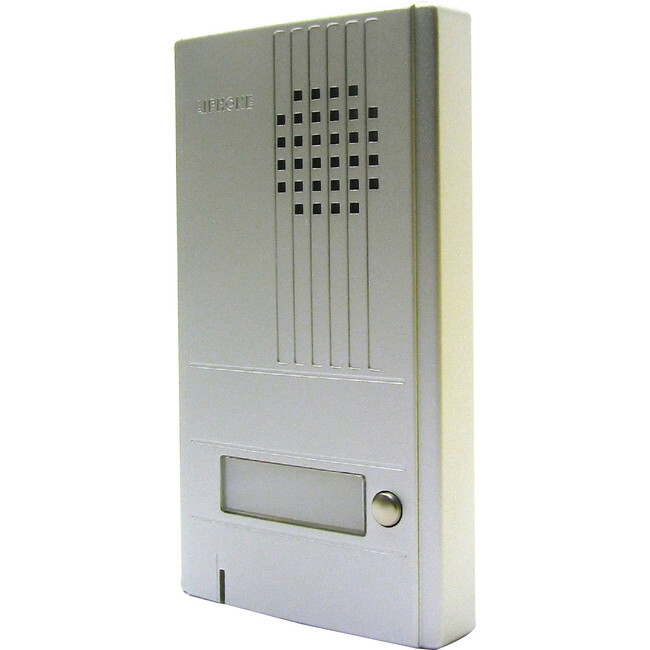

DA-1DS - Silver single call audio entry station
Simplified Two-Wire Door Entry Kit

Aiphone's DA series residential audio intercom provides audio comminication froma door station to an internal handset station. ( DA-1MD / DB-1MD )>

The DA Series features simple two wire cabling, AC operation by inexpensive plug pack and AC door release operation. >

The DA series is available either in boxed sets containing a single door station and room station or as individual components for 2 or 4 call door station and individual handsets.>

SPECIFICATIONS:

DA-1DS: approximately 270 g.
Wiring: 2 wires, polarised from door to DA-1MD.

Distance
From door to master station (Wire Diameter: 0.6 mm / 0.8 mm / 1.0 mm): 110 m / 200 m / 310 m
Master station to Power supply (Wire Diameter: 0.6 mm / 0.8 mm / 1.0 mm): 55 m / 100 m / 155 m
