12V 20AMP SOLAR REGULATOR

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

12V 20AMP SOLAR REGULATOR

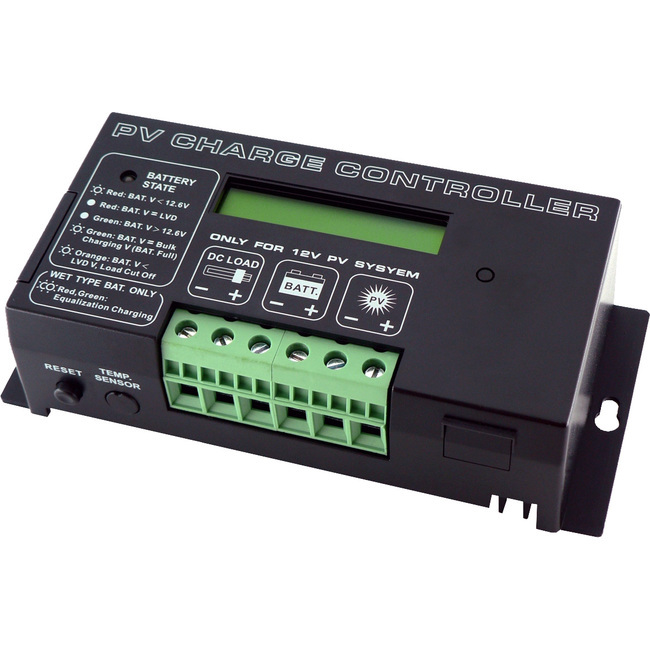

The SBC-7100 Series PV charge controller is designed for use with all types of photovoltaic panels and differenttypes of batteries, such as wet or sealed lead acid, lead calcium, lead antimony battery.

PV Panel 12V, 20A System, LCD & LED Display

The MCU ( Microprocessor controller) is programmed with3 stage charging algorithms and with 0~100% PWM (Pulse Width Modulation) duty cycles to provide the fastest, optimal charging current and voltages from PV panels according to the actual state of charge and type of battery.

Bulk, Absorption, Float and *Equalization* threshold charge voltage levels are user adjustable to meet specific battery manufacturer's recommendation. Hence, maximum PV charging efficiency and longer the service life span of thebattery are ensured.

Electronic blocking of back current to PV and overcharging battery protection are standard. Ampere Hour logging read outs in three sets, today and last two days are shown on the LCD. This is useful to check the conditionof PV data for efficiency and actual capacity of your system.

*Equalization* Charging is only for Wet type lead acid battery; automatically cycles once a month for 2 hours. Equalization Charging can be de-activated or re-activated manually.

DC Output (for Small DC Load)

The DC output terminal has many value added night-lightmode programs, please see user manual at our website for detail descriptions. The DC output has dusk to dawn automatic on-off operations. There are 10 selectable multiple on-off programs, each with different power-on durations for various needs or lighting schedules. The battery low voltage level disconnect and reconnect settingsare user adjustable.

Features:

  • User adjustable charging voltages between 12.0 to 16.5V.
  • Suitable for most types of heavy duty 12V battery.
  • Microprocessor control PWM and 3 stage charging algorithms.
  • Bulk, Absorption & Float Charge status on LCD Display.
  • Ampere Hour logging read outs in 3 sets, today and last 2 days.
  • 5 State LED Indications of battery levels.
  • Electronic Overcharge Protection & Back Current Blocking to PV panel.
  • Over Temperature Protection of PV Charge Controller's electronic circuit.
  • Dusk to Dawn automatic ON-Off with 10 selectable on-off programs.
  • Adjustable battery low voltage level disconnect and reconnect for DC output.
7120
Battery Voltage
Max. PV panel open circuit voltage
Continuous charge / load current
20 A
Maximum charge current ( 5 mins. )
25 A
Maximum load current ( 5 mins. )
25 A
Operation Current ( no load and PV )
30 mA
Voltage across terminals ( PV to Battery )
0.8 V
Voltage across terminals ( Battery to Load )
0.4 V
Electronic Blocking
Yes
Battery Reverse Polarity Protection
Yes
Overcharge & Over-Discharge Protection
Yes
Battery Status LED indication
5 - State LED indications
Charging Status LCD indication
3 - State LCD Display
Recommended wire size
#12 AWG
Weight
0.47 Kgs
Dimension ( W xH x D )
150 x 45 x 85 mm
Fuse
30 A
Operating Ambient Temperature
-10 to 50 °C
Over Temperature Protection
Yes
Battery charging float voltage setting
Adjustable from 12.0 - 15.0 V
Battery charging bulk voltage setting
Adjustable from 12.0 - 16.0 V

Includes:
1 x Solar Regulator

(SBC7120)

Standard Consumer Warranty
Model # SBC7120
Barcode # 9319236915240
Brand MANSON
Shipping Weight 0.4300kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.003000000m3
Type Regulator
