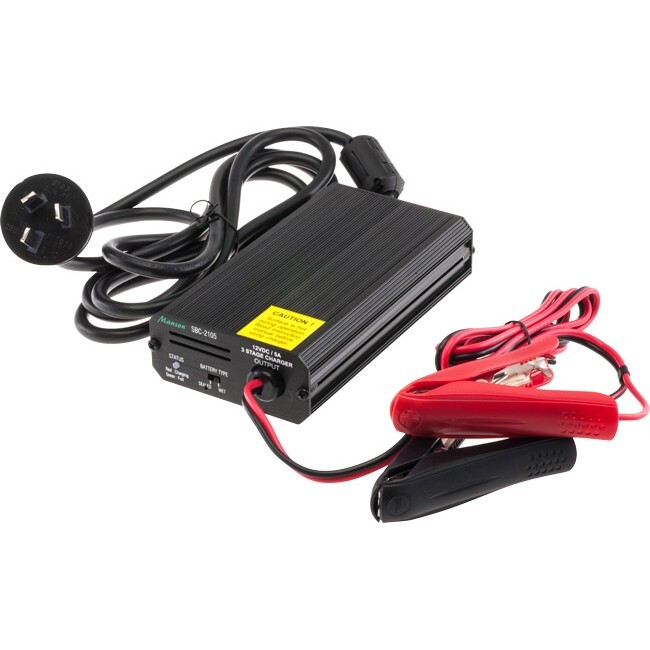

12V 5A SLA BATTERY CHARGER

12V 5A SLA BATTERY CHARGER

This compact, robust and light weight battery charger gives a complete and fast charge to sealed and wet type of lead acid battery.

In the Bulk Charge Stage, it charges the battery at a constant maximum current until the battery voltage increases to a slightly higher level and switches to the Absorption Mode at which the battery is then kept at this voltage while the charging current decreases to a low value.

When the battery is fully charged, the charger is then switched to the Floated Charge voltage where it can be maintained indefinitely. At the Float Charge Mode, the charger will make up for the loss of self discharge of the battery.

This charger has two selections to cover a wide range of sealed (VRLA) and the wet type of lead acid battery. In addition to the standard short circuit, over load, over temperature protections, it has electronic reversed polarity protection, output over voltage protection, and battery low voltage protection to prevent damage to the charger and the battery.

Features

• 3 Stage (IUOU) Switching Mode Lead Acid Battery Charger.
• 2 Selectable Bulk Absorption-Float Charge Settings forSealed & Wet battery
• LED indicators for charging and Full/ Float mode.
• Wide Input Tolerance for fluctuating mains voltage
• Protections to the charger and battery. Output Short Circuit, Over Load, Over Temperature, Reverse Polarity
• Protection to the battery. OVP (Over Voltage Protection) the charger will cut off output when output voltage is over 15.5V, this gives complete protection the battery
• Battery Under-Voltage Protection. When voltage of thecharged battery is less than 7.5V, the charger will stop charging the battery which may be of wrong rating (6V) or faulty or heavily exhuasted


Includes:
1 x Battery Charger
