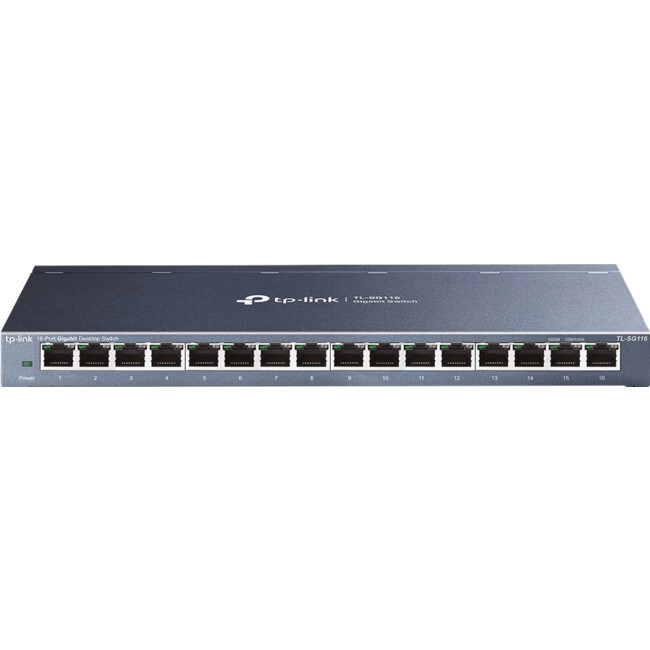

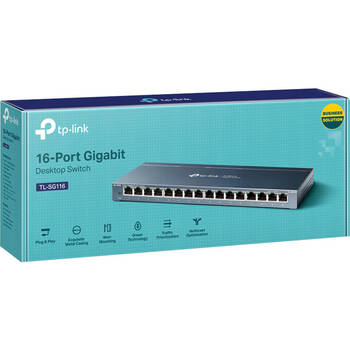

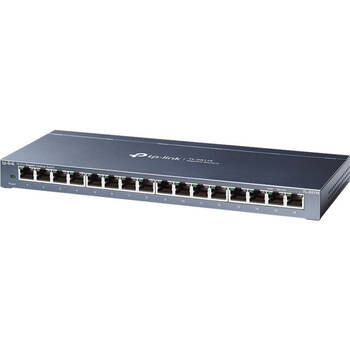

16 PORT GIGA DESKTOP SWITCH

16 PORT GIGA DESKTOP SWITCH

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you with an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.

HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface
16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity: Fanless
Power Consumption
Maximum: 10.0W
External Power Supply
External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions (W x D x H): 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

PERFORMANCE
Packet Forwarding Rate: 23.8Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mb
Jumbo Frame: 10KB

SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method: Store and Forward

OTHERS
Certification; CE, FCC,RoHS
Package Contents
16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
