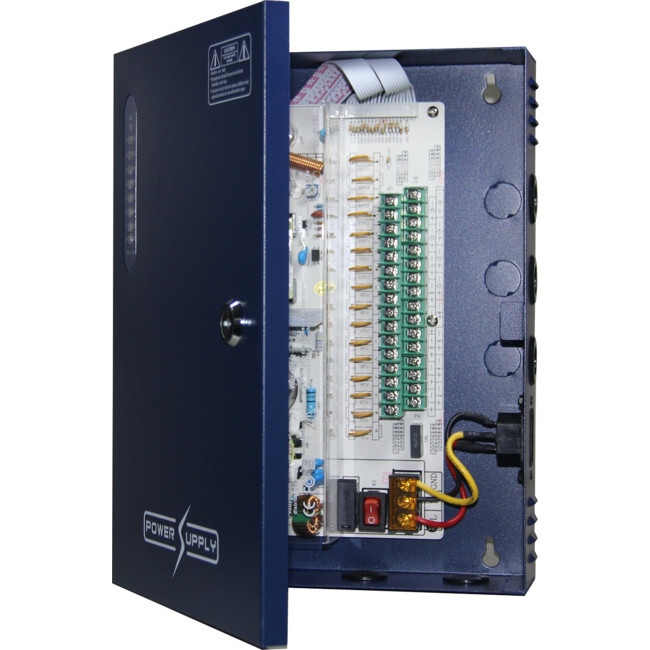

16 WAY 12V DC 16A POWER SUPPLY WITH PFC SURGE PROTECTION

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

16 WAY 12V DC 16A POWER SUPPLY WITH PFC SURGE PROTECTION

Features

  • Universal AC input range: 96-264VAC, 47~63Hz

  • Each channel is protected separately. There is one tube fuse (Glass fuse) for the mainboard and PTC (Polymeric temperature control) fuse for every individual channel.

  • Short circuit, over current and overload protection

  • Models with a power larger than 60W are configured with PFC function.

  • Meet the European energy efficiency standard

  • 5kA surge protection

  • High-quality cooling fin to reduce power consumption

  • External LED indicators for each channel output

  • Extra AC jack on the side of the box (AC power lead is not included)

  • Built-in EMI wave filter with 100% full load burn-in test

  • Using 105°C long life electrolytic capacitors

  • Wall type blue baking finished shell

Specifications

  • Input: 93 - 264V AC

  • Output: DC 12V 16A

  • Operating temperature: 30&cC~70°C

  • Size: 290mm (H) x 215mm (W) x 65mm (D)

(PW1612B16)

Standard Consumer Warranty
Model # PW1612B16
Barcode # 9328202018083
Brand DOSS
Shipping Weight 2.5900kg
Shipping Width 0.700m
Shipping Height 0.400m
Shipping Length 0.500m
Shipping Cubic 0.140000000m3
Type DC Power Supply
