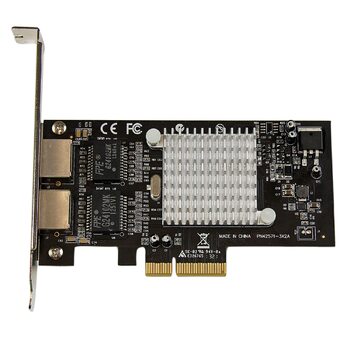

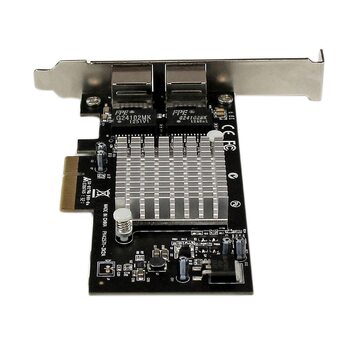

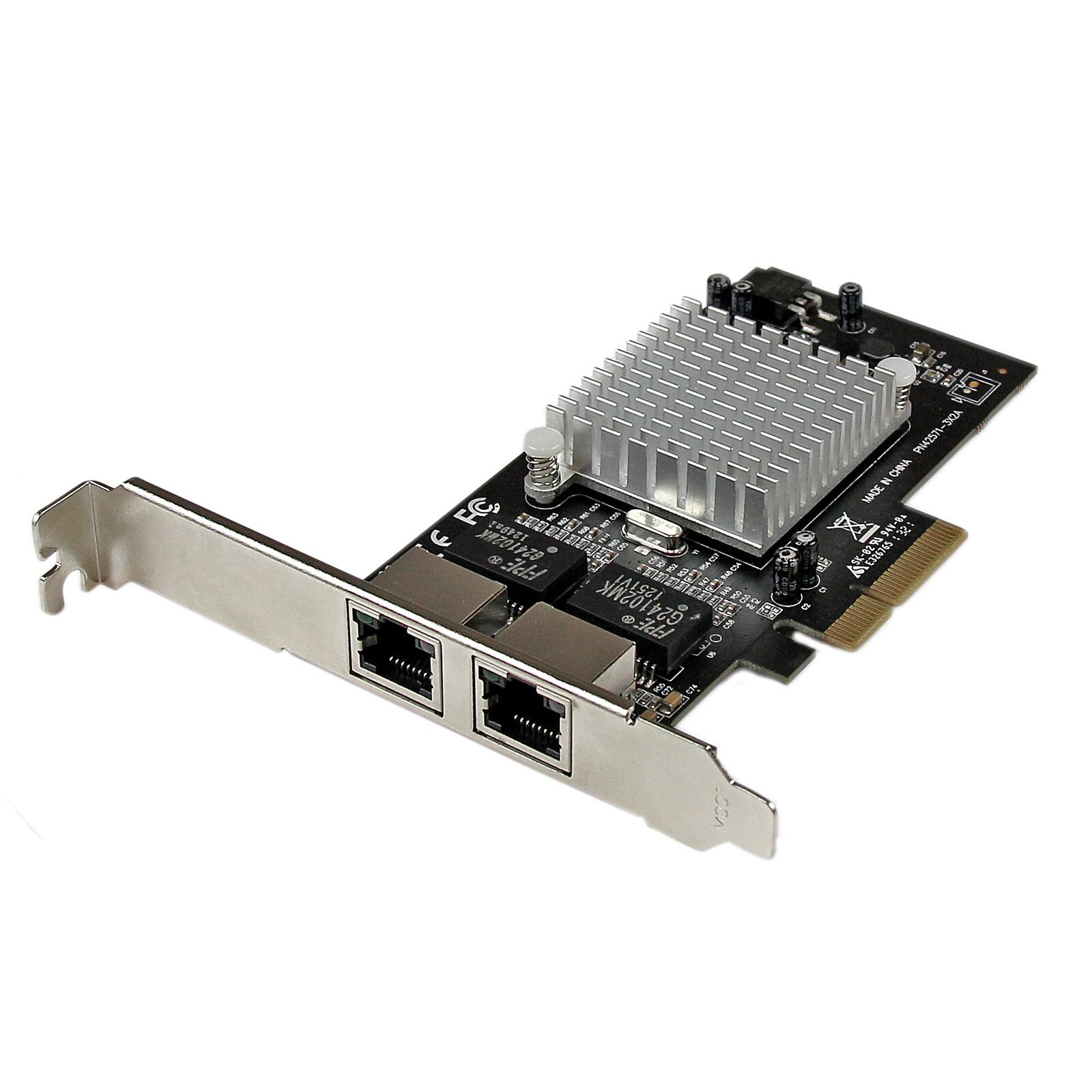

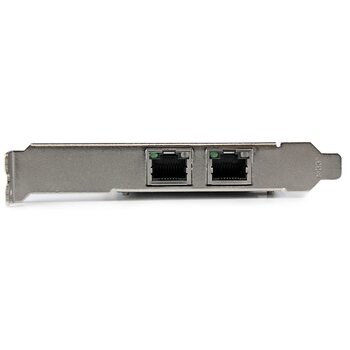

2 Port PCIe (x4) GbE Network Card - Intel Chipset

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.

Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

(ST2000SPEXI)

This item comes with a 24 months warranty

This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system

Connector(s)
Connector Type(s): PCI Express x4 Male
External Ports: RJ-45 Female

Environmental
Humidity: 5~85% RH
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Hardware
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket incl.)
Chipset ID: Intel - I350-AM2
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab : PCI Express Base Specification 2.1
Interface: RJ45 (Gigabit Ethernet)
Port Style: Integrated on Card
Ports: 2

Indicators
LED Indicators: 10/100/1000 Mbps Indicator : Link / Activity

Packaging Information
Package Height: 29 mm [1.1 in]
Package Length: 14.4 cm [5.7 in]
Package Width: 17.2 cm [6.8 in]
Shipping (Package) Weight: 165 g [5.8 oz]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Jumbo Frame Support: 9K max.
Maximum Data Transfer Rate: 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
MTBF: 432,400 hours
Promiscuous Mode: Yes
Supported Protocols: IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging)

Physical Characteristics
Material: Steel
Product Height: 12.1 cm [4.8 in]
Product Length: 67 mm [2.6 in]
Product Width: 19 mm [0.7 in]
Weight of Product: 80 g [2.8 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com Dual Port Gigabit PCIe Network Card w/ Intel i350 Chip

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.4.x to 4.11.x LTS versions only

Special Notes / Requirements
System and Cable Requirements: Available PCI Express x4 or higher (x8, x16) slot

What's in the Box
Included in Package: 2 Port Network Card : Driver CD : Instruction Manual : Low Profile Bracket

Model # ST2000SPEXI
Barcode # 065030852739
Brand STAR TECH
Shipping Weight 0.1700kg
Shipping Width 0.140m
Shipping Height 0.030m
Shipping Length 0.170m
Shipping Cubic 0.000718000m3
Type Lan Card
