3 PORT GIGA POWERLINE ADAPTER KIT AV1300

3 PORT GIGA POWERLINE ADAPTER KIT AV1300

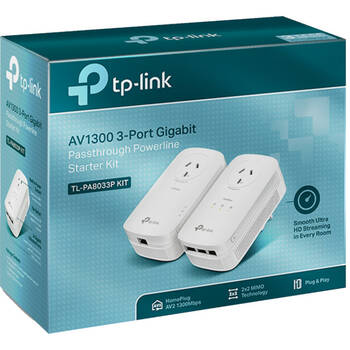

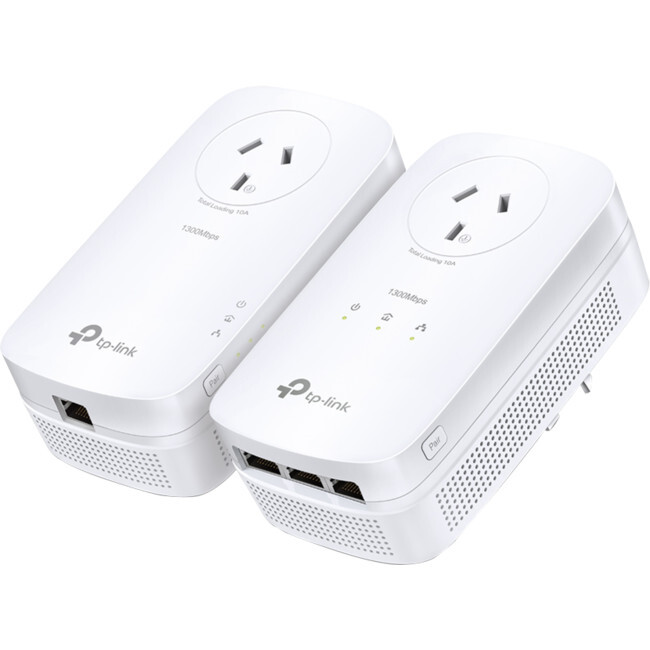

AV1300 3-Port Gigabit Passthrough Powerline Starter Kit

HomePlug AV2 standard compliant, high-speed data transfer rates of up to 1300Mbps1, supports all your online needs

Line-Neutral/Line-Ground 2×2 MIMO with Beamforming ensures larger range, higher transmission capacity and more stable connections

3-gigabit ports create secure wired networks for desktops, smart TVs or games consoles

Integrated power socket ensures no power outlet goes to waste

Plug and play, no configuration required

Patented Power-Saving Mode automatically reduces power consumption by up to 85%2

• Plug Type: AU

• Standards and Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Interface: TL-PA8030P: 3 * Gigabit Ethernet Port,Power Socket/TL-PA8010P: 1 * Gigabit Ethernet Port, Power Socket

• Button: Pair Button

• LED Indicator: Power, Powerline, Ethernet

• Dimensions ( W x D x H ): 5.2×2.8×1.7 in. (131×72×42 mm)

• Range: 300 Meters over electrical circuit

• Power Output to Integrated Socket: 10A

• Modulation Technology: OFDM (PLC)

• Encryption: Powerline Security: 128-bit AES

• Certification: CE, RoHS

• System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux

Package Contents:

• Powerline Adapter TL-PA8010P, TL-PA8030P

• 2x 6.5 ft. (2 m) Ethernet Cable

• Quick Installation Guide

Environment:

• Operating Temperature: 0°C~40°C (32°F ~104°F)

• Storage Temperature: -40°C~70°C (-40°F ~158°F)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing

Power Consumption:

• Maximum: 5.53W

• Typical: 5.32W

• Standby: 1.36W
