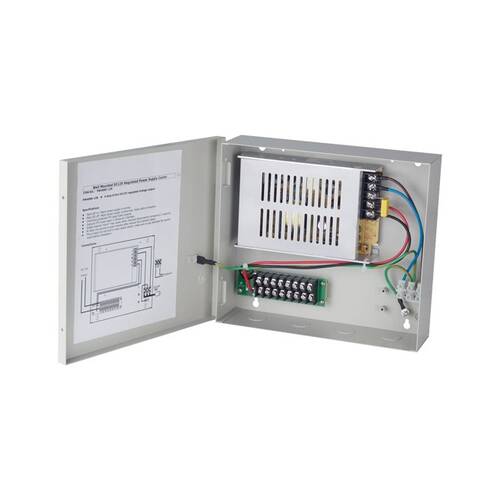

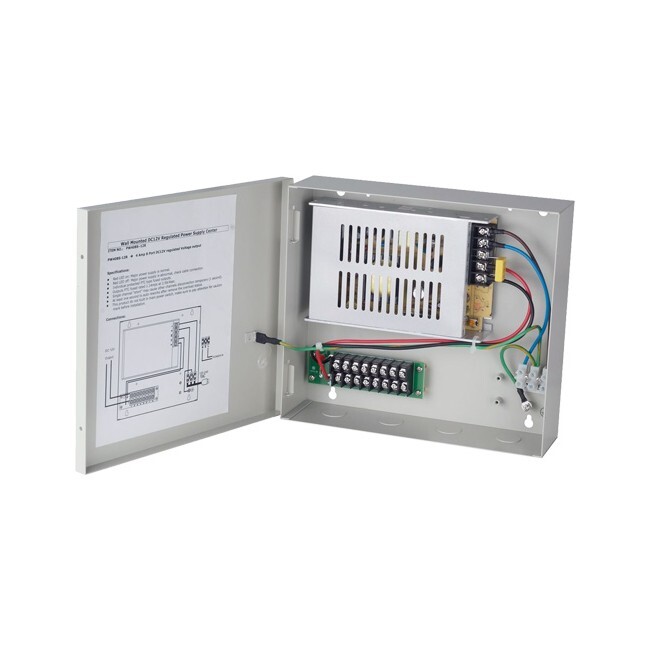

4A 8 PORT DC12V REGULATED PS PANEL POWER WALL MOUNTING BOX

PW408S-12R PORT DC12V REGULATED POWER SUPPLY

4Amp 8 port DC12V Regulated Wall Mounting Power Supply

Specifications:

• Red LED on: Mains power supply is normal.

• Red LED off: Mains power supply abnormal, check incoming supply and cable connections.

• Individual protected PTC type fused outputs.

• Outputs PTC fused rated 1.1Amps at 2.5A/4sec.

• A single channel ¡§short¡¨ may cause a temporary disconnection (1 sec.) of other channels.

• At least one second to auto rework, after removing an overload condition.

• This product does not contain a built-in main power switch, take additional care when connecting or isolating incoming mains supply. Not all warning labels.

• Overall Dimension: 224 x 200 x 60 mm
