7-Pt Industrial USB 3.0 Hub w/ Ext. Power Supply

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

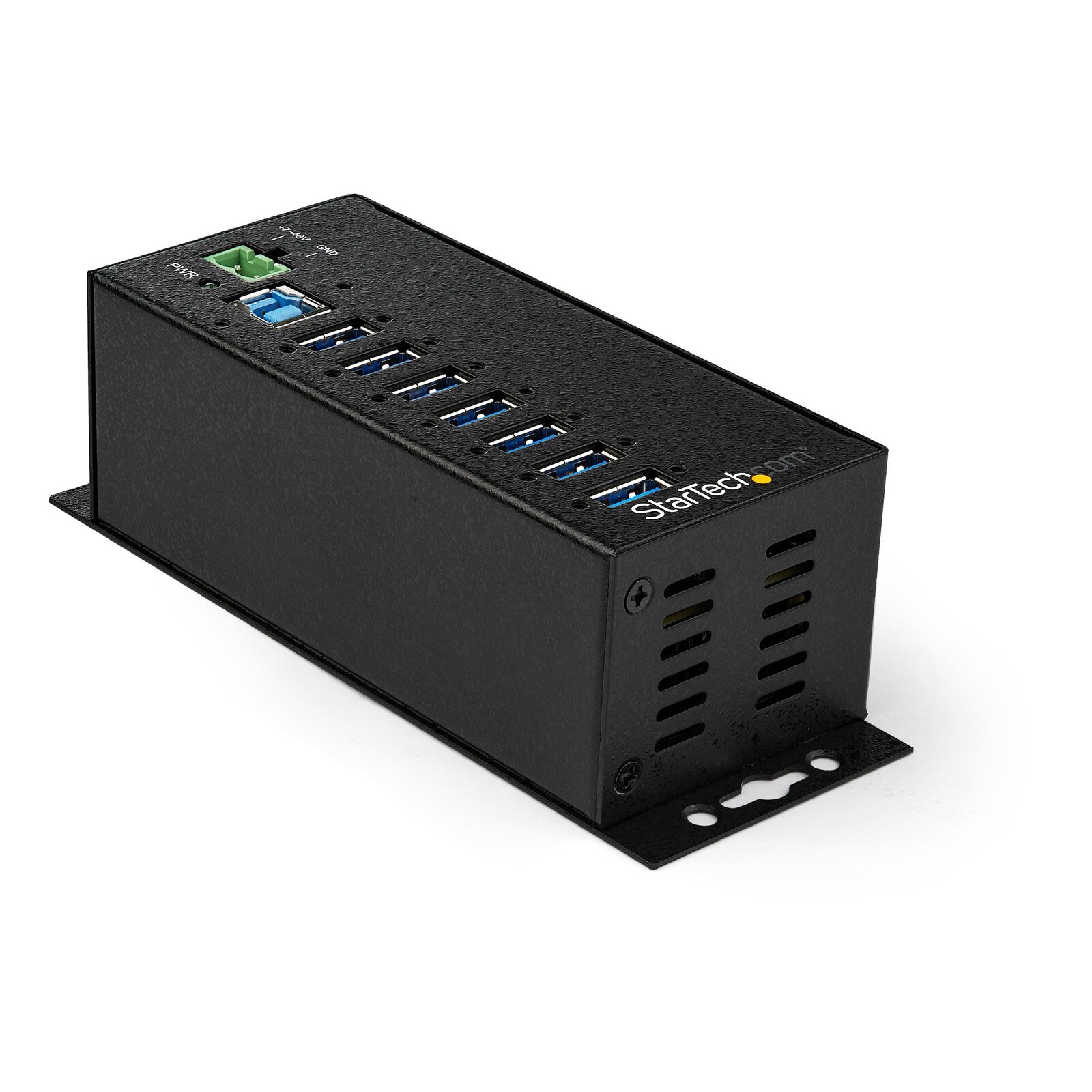

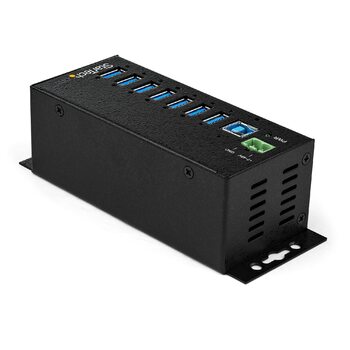

7-Pt Industrial USB 3.0 Hub w/ Ext. Power Supply

This TAA compliant 7-port industrial USB 3.0 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 10-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.

It supports wide-range 10-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.

(HB30A7AME)

This item comes with a 24 months warranty

With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Packaging Information
Package Height: 7 cm [2.8 in]
Package Length: 29.4 cm [11.6 in]
Package Width: 19 cm [7.5 in]
Shipping (Package) Weight: 1.3 kg [2.9 lb]

Performance
Device Power Consumption (In Watts): 41 Watts
ESD Protection: +/-15kV (Air) : +/-8kV (Contact)
Maximum Data Transfer Rate: 5 Gbps
MTBF: 126,106 Hours
Surge Protection: 350W on the DFP and UFP
Total Available Power Output (In Watts): 35W
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

Physical Characteristics
Cable Length: 2 m [6.6 ft]
Form Factor: Industrial
Material: Steel
Product Height: 4.5 cm [1.8 in]
Product Length: 14.5 cm [5.7 in]
Product Width: 5.5 cm [2.2 in]
Weight of Product: 326 g [11.5 oz]

Power
Input Current: 1.4A
Input Voltage: 100 - 240 AC
Output Current: 3.25A
Output Voltage: 20V DC
Plug Type: Terminal Block (2 Wire)
Power Consumption (In Watts): 65W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 7 Port USB Hub w/ Power - Industrial - Mountable USB 3.0 Hub

Software
OS Compatibility: OS Independent; No additional drivers or software required

Special Notes / Requirements
Note: If connected to a USB 2.0 host port, performance may be limited : This product is intended for use with terminal block power only – Standard AC adapter not available
System and Cable Requirements: Host computer with an available USB 3.0 port

What's in the Box
Included in Package: 6.6 ft [2 m] USB 3.0 Host Cable

Indicators
LED Indicators: Power (Green)

Hardware
USB-C Host Connection: No
USB-C Device Port(s): No
Ports: 7
Interface: USB 3.0
Industry Standards: USB Battery Charging Specification Rev. 1.2
USB 3.2 Gen 1 - Backwards compatible with USB 3.0, 2.0, and 1.1
Fast-Charge Port(s): Yes
Chipset ID: Genesys Logic - GL3523
Bus Type: USB 3.0

Environmental
Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Humidity: 5 to 95% RH

Connector(s)
Connector Type(s): USB Type-B (9 pin) USB 3.0 Female : USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Female : Terminal Block (2 Wire)

What's in the Box
Included in Package: DIN Rail Brackets : Mounting Screws : Power Adapter (NA/JP, ANZ, UK, EU) : Quick-Start Guide : USB Hub

Model # HB30A7AME
Barcode # 065030881876
Brand STAR TECH
Shipping Weight 1.3300kg
Shipping Width 0.290m
Shipping Height 0.070m
Shipping Length 0.190m
Shipping Cubic 0.003910000m3
Type Hub/Splitter Box
