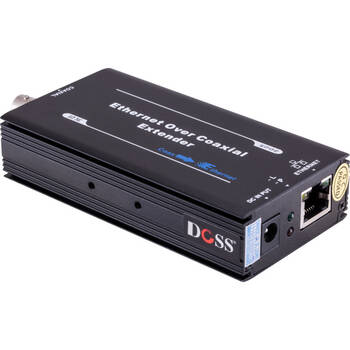

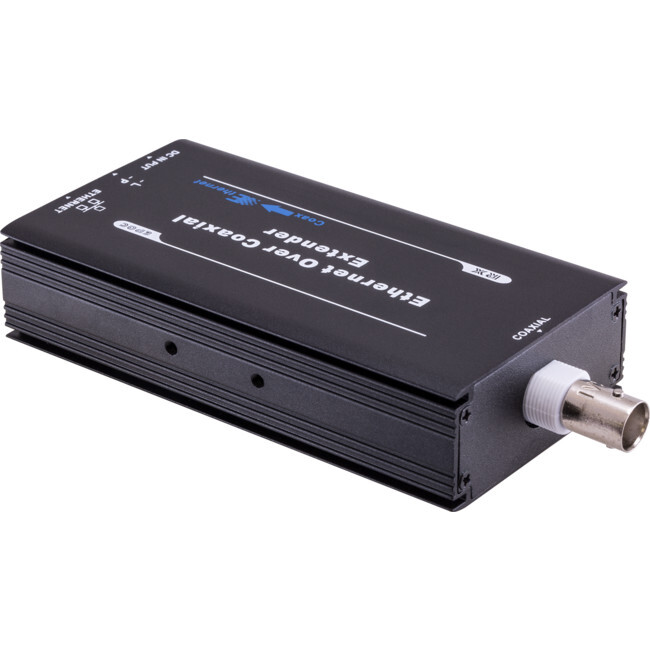

ACTIVE ETHERNET &POE OVER COAX RECEIVER ONLY UPTO 1KM DVR END

Single Channel Ethernet and Power Receiver over Single Coaxial Cable

• Ethernet transmission distance reaches max up to 1000 meters

• Power transmission distance reaches max up to 1000 meters

• Meet standards of EEE802.3 10BASE-T, IEEE802.3u 100BASE-TX

• Support IEEE802.3af standard; automatically detect and recognize IEEE802.3af standard PD equipment and provide power to PD equipment

• High-speed modem technology, the physical bandwidth is up to 100Mbps (bidirectional)

• Multi-stage strong surge and lightning protection design

• Low power consumption, automatic error-correction coding technology

• Easy to install, plug-and-play mode, fast network connection

• Include extra 53VDC/1.25A power adaptor
