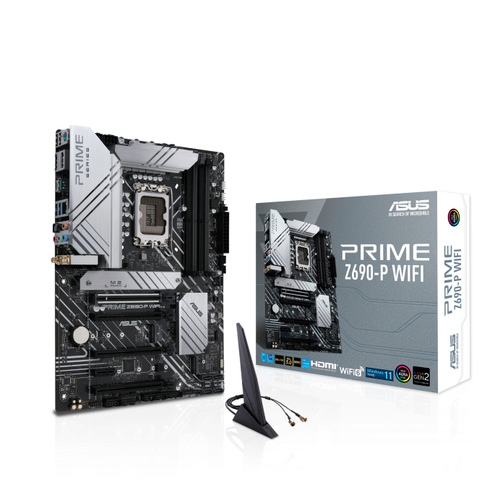

Asus Prime Z690-P Wi-Fi Intel LGA 1700 ATX DDR5 Motherboard

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery

Features:

  • Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4

  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

  • Next-gen connectivity: DDR5, PCIe® 5.0, Intel® WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support

  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Includes:

  • 2 x SATA 6Gb/s cables

  • 1 x ASUS Wi-Fi moving antenna

  • 1 x I/O Shield

  • 1 x M.2 Rubber Package

  • 2 x M.2 SSD screw packages

  • 1 x Support DVD

  • 1 x User guide

(MBA-Z690-P-PRIME-WF)

Standard Consumer Warranty

  • Colour: Black

  • Chipset: Z690

  • 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

  • Dual Channel Memory Architecture

  • Supports Intel® Extreme Memory Profile (XMP)

  • 1 x DisplayPort

  • 1 x HDMI®

  • Intel® 12th Gen Processors

  • 1 x PCIe 5.0/4.0/3.0 x16 slot

  • Intel® Z690 Chipset

  • Intel® 12th Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280/22110

  • Intel® 12th Gen processors support PCIe 4.0 x4 mode

  • Realtek 2.5Gb Ethernet

  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

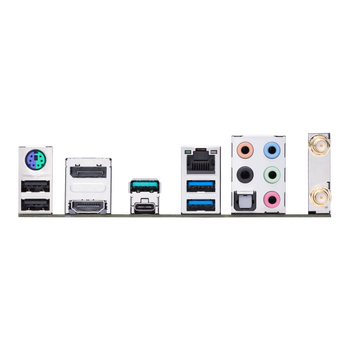

  • Rear USB (Total 6 ports)

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

  • 1 x USB 3.2 Gen 2 port (1 x Type-A)

  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • Supports up to 24-Bit/192 kHz playback

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

  • 1 x USB 3.2 Gen 2 port (1 x Type-A)

  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • 1 x DisplayPort

  • 1 x HDMI® port

  • 1 x Wi-Fi Module

  • 1 x Realtek 2.5Gb Ethernet port

  • 5 x Audio jacks

  • 1 x Optical S/PDIF out port

  • 1 x PS/2 Keyboard/Mouse combo port

  • ASUS 5X PROTECTION III

  • DIGI+ VRM (- Digital power design with DrMOS)

  • LANGuard

  • Overvoltage Protection

Model # MBA-Z690-P-PRIME-WF
Barcode # 4711081469629
Brand ASUS
Shipping Weight 1.6800kg
Shipping Width 0.340m
Shipping Height 0.070m
Shipping Length 0.270m
Shipping Cubic 0.006560000m3
