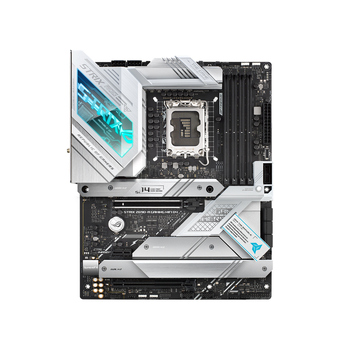

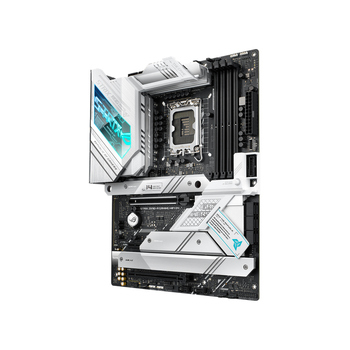

Asus Rog Strix Z690-A GAMING Wi-Fi D4 Intel LGA 1700 ATX DDR4 Motherboard

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 DrMos, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2x2 Type-C®, SATA and AURA Sync RGB lighting

Features:

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors

  • Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

  • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot

  • High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard

  • Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2x2 Type-C®

  • Intelligent Control:  ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance

  • DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button

  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers

  • Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III

  • Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

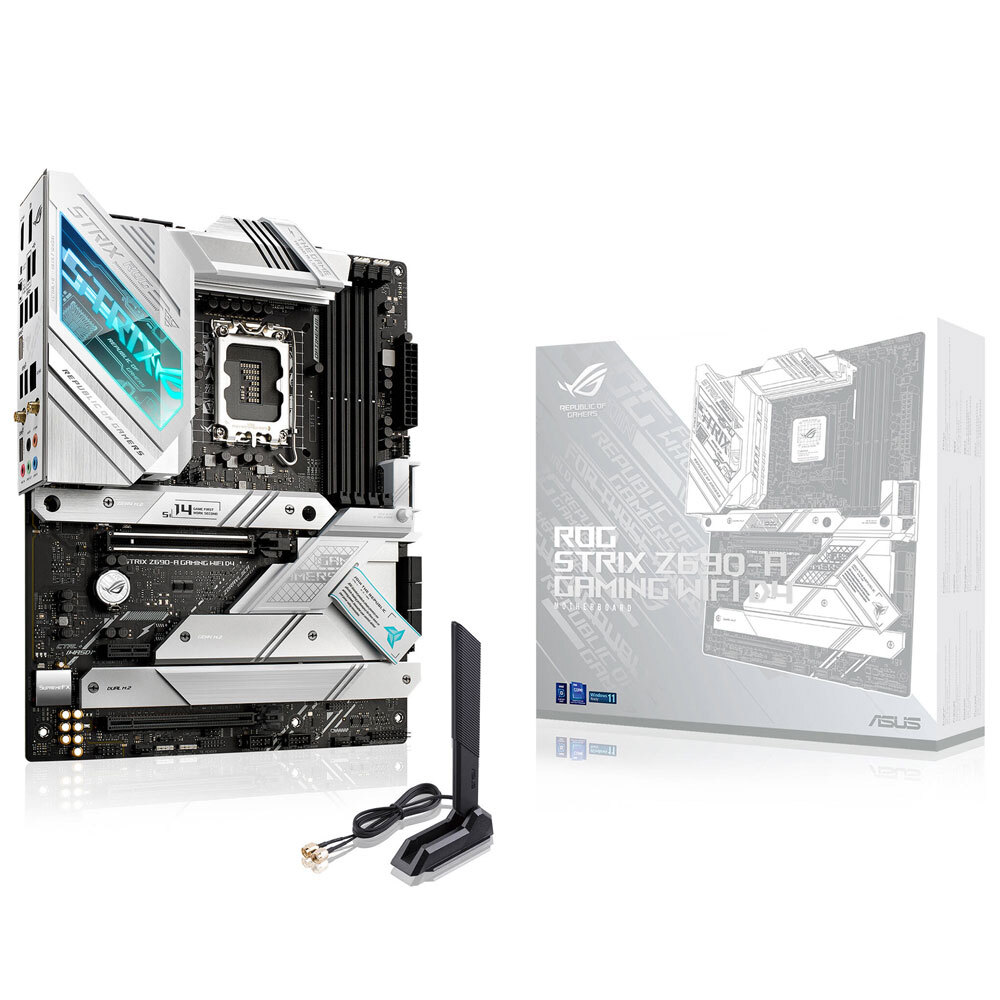

Includes:

  • 4 x SATA 6Gb/s cables

  • 1 x ASUS Wi-Fi moving antennas

  • 1 x Cable ties pack

  • 1 x M.2 Rubber Package

  • 1 x M.2 Q-Latch package

  • 1 x ROG key chain

  • 1 x ROG Strix stickers

  • 1 x ROG Strix thank you card

  • 1 x Support DVD

  • 1 x User guide

(MBA-Z690-A-ROG-WFD4)

Standard Consumer Warranty

  • Colour: Black

  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

  • Intel®   Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

  • Supports Intel® Turbo Boost   Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  • Intel® Turbo Boost Max   Technology 3.0 support depends on the CPU types.

  • Dual Channel Memory Architecture

  • Supports Intel® Extreme Memory Profile (XMP)

  • *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information, refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  • Intel® 12th Gen Processors

  • Intel® 12th Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280/22110

  • Intel® 12th Gen processors support PCIe 4.0 x4 mode.

  • Intel® Z690 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**

  • 6 x SATA 6Gb/s ports***

  • Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

  •  When M.2_4 is operating in SATA mode, SATA6G_2 will be disabled.

  • RAID configuration and optical disc drives are not supported on the SATA6G_E1-2 ports.

  • Wireless & Bluetooth

  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

  • Supports 2.4/5GHz frequency band

  • Bluetooth v5.2

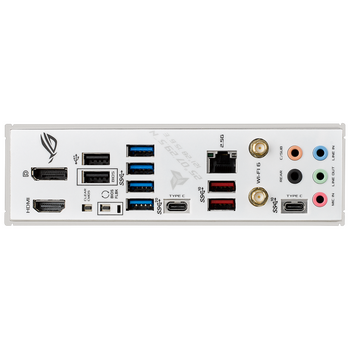

  • Rear USB:

  • Total 10 ports

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

  • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • Front USB:

  • Total 7 ports

  • 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

  • 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports

  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

  • Impedance sense for front and rear headphone outputs

  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

  • Supports up to 32-Bit/384 kHz playback

  • Audio Features

  • SupremeFX Shielding Technology

  • Savitech SV3H712 AMP

  • Premium audio capacitors

  • Audio cover

  • Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

  • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Model # MBA-Z690-A-ROG-WFD4
Barcode # 4711081446477
Brand ASUS
Shipping Weight 2.3200kg
Shipping Width 0.340m
Shipping Height 0.070m
Shipping Length 0.280m
Shipping Cubic 0.006569000m3
