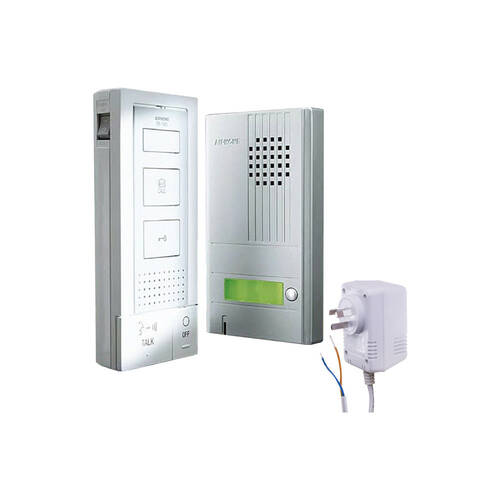

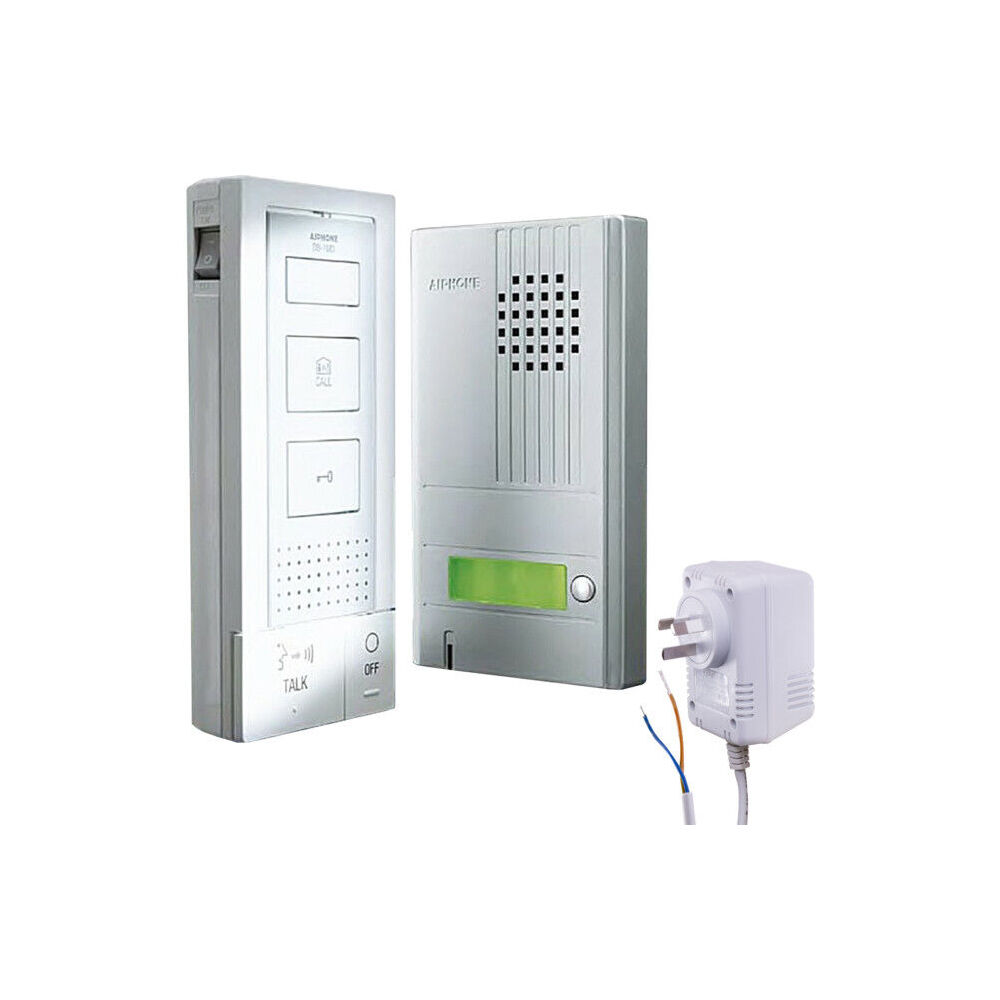

Aiphone Audio Handsfree Intercom Kit Includes 16VAC1500/5 Power Supply DBS1AK

Aiphone DBS-1AK – Entry Security for Your Residence

Simplified Two-Wire Door Entry Kit with 16VAC power supply included

Aiphone's DB series residential audio intercom provides audio communication from a door station to up to 5 internal handsfree stations.
The DB Series features simple two-wire cabling, AC operation by inexpensive plug pack and AC door release operation.
Available in boxed sets or as individual components for 2 or 4 call door stations and individual handsets.

FEATURES:
Two button and 4 button door stations available (silver only)
Option button can trigger second door release or entrance light
Connect up to 4 additional sub stations
Chime tone calling
All call between internal stations
Electric Door Release connects via 2 wires from door station
No extra power supply required for door release (requires AC door strike)
Can use existing doorbell/chime wiring (disconnect from transformer)
Internal stations include Door Release & function button
Optional call extension sounder

SPECIFICATIONS:
Power Source: AC 15V, included in kit
Power Supply: 15V AC 1100mA (1 per 2 units)
Calling: Electronic tone

Communication:
Approx. 1 min
AUTOMATIC (Hands-Free): Momentarily press TALK button
MANUAL (Press-to-talk/Release-to-listen): Press TALK for 1 sec or more

Weight:
DB-1MD: approx. 370g
DB-1SD: approx. 370g

Wiring:
2 wires, polarised from door to DB-1MD
6 wires, polarised DB-1MD to DB-1SD

Distance:
From door to master station:
• 0.6 mm: 110 m
• 0.8 mm: 200 m
• 1.0 mm: 310 m
From master station to power supply:
• 0.6 mm: 55 m
• 0.8 mm: 100 m
• 1.0 mm: 155 m
From master to furthest sub:
• 0.6 / 0.8 / 1.0 mm: 100 m

Includes:
1 x Intercom Kit

(21810312)

12 Months

Model # 21810312
Barcode # 0677478410305
Brand AIPHONE
Shipping Weight 1.4400kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
Type Audio Intercom
