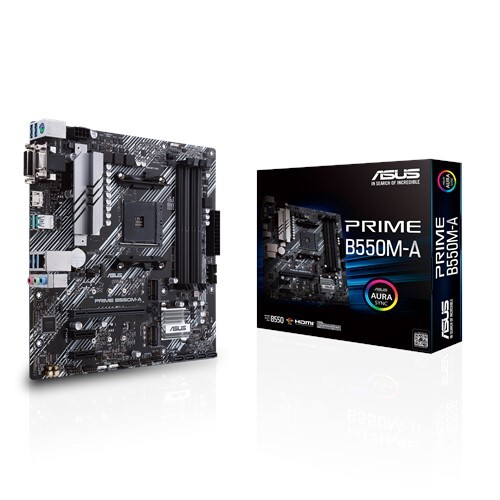

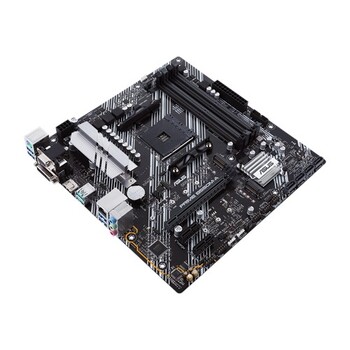

ASUS AMD PRIME B550M-A (WI-FI)

AMD B550 (Ryzen AM4) micro ATX motherboard with dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, HDMI/D-Sub/DVI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A, and Aura Sync RGB headers support

Features:

  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors

  • Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+

  • Ultrafast connectivity: Dual M.2, PCIe 4.0, Intel® WiFi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A

  • Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware

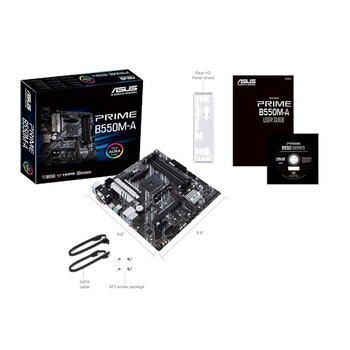

Includes:

  • 1x Asus Amd B550 Prime B550M-A (Ryzen Am4) Matx Mb

(MBA-B550M-A-PRIME)

Standard Consumer Warranty

  • Colour: Black

  • Dimensions approx.: 24.4 x 24.4 cm

  • CPU: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *

  • Chipset: AMD B550

  • Memory: 4 x DIMM, Max. 128GB, DDR4

  • 1  x D-Sub

  • 1  x DVI-D

  • 1  x HDMI 2.1(4K@60HZ)

  • AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 (x16 mode)

  • AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

  • 1 x PCIe 3.0 x16 (x16 mode)

  • AMD B550 Chipset

  • 2 x PCIe 3.0 x1

  • Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports

  • AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

  • AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :

  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

  • AMD B550 Chipset :

  • 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

  • 4 x SATA 6Gb/s port(s),

  • Support Raid 0, 1, 10

  • LAN: Realtek RTL8111H 1Gb Ethernet

  • Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

  • USB Ports: Rear USB Port ( Total 6  )

  • BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

  • Manageability: WOL by PXE

  • Operating System: Windows® 10 64-bit

  • Form Factor: mATX Form Factor

Model # MBA-B550M-A-PRIME
Barcode # 4718017755528
Brand ASUS
Shipping Weight 0.9600kg
Shipping Width 0.270m
Shipping Height 0.050m
Shipping Length 0.270m
Shipping Cubic 0.003936000m3
