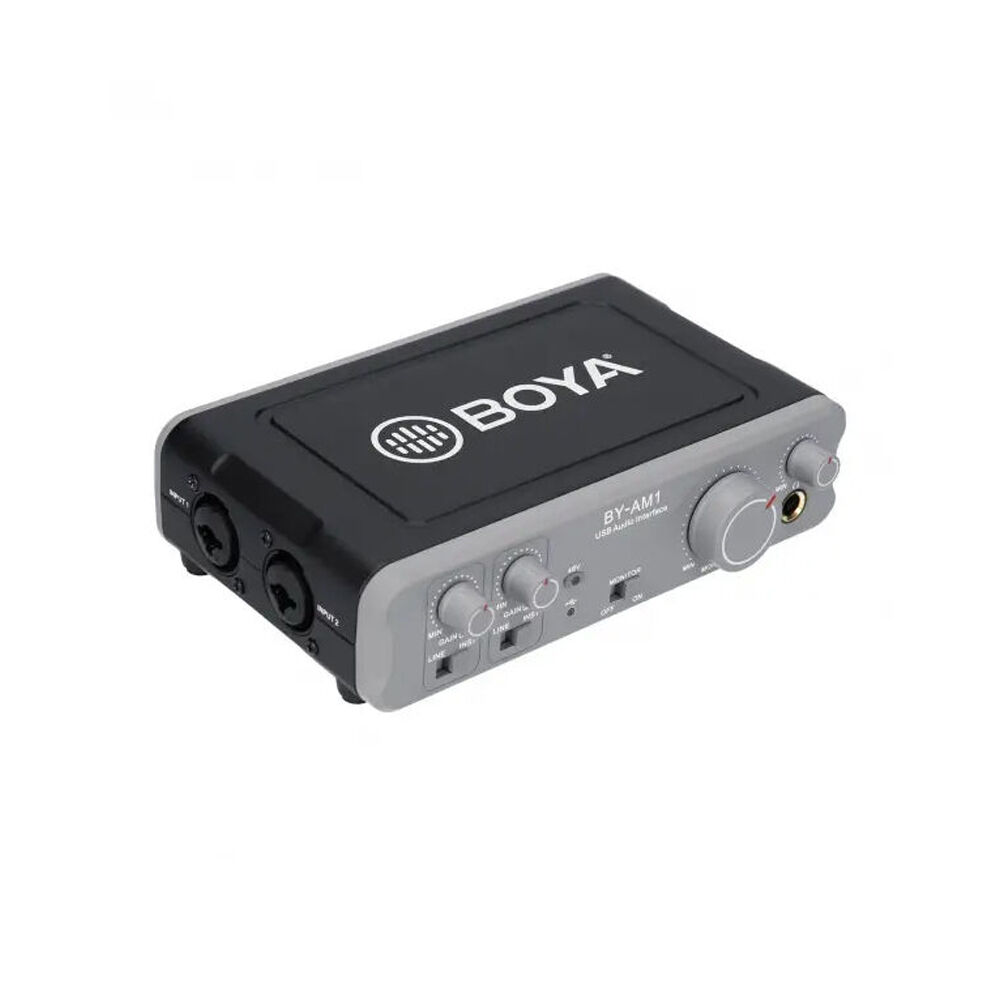

Boya By-AM1 Dual Channel Audio Mixer Sound Card 160x105cm For XLR Mic Black

Boya By-AM1 Dual Channel Audio Mixer Sound Card 160x105cm For XLR Mic Black

The BY-AM1, a dual-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphones, which allows you to easily mount and control input devices and to transmit the output signal to your computer.

Thanks to built-in 6.35mm/XLR combo inputs, it conveniently accepts the signal directly from XLR microphones or electric instruments, like guitar and bass.

It can support 44.1k-192kHz sampling rates audio without any sound compromise when connecting to XLR microphone and instruments input devices.

Thanks to the 6.35mm headphone monitoring jack and supplied 6.35mm to 3.5mm audio adapter, you can hear your live input signal with no distracting echo or latency adapter through the headphones.

It can provide 48V phantom power for XLR passive microphone. Built-in 1/4" mounting screw on the base can be attached to a tripod or other accessories.

Dimensions: 160 x 105 x 41.5mm
Weight: 408.5g

Included in the box:
- 2m USB-A to USB-B cable - 6.35mm to 3.5mm TRRS audio adapter
Specifications:

Microphone Inputs

• Frequency Response: 20Hz-20kHz±0.1dB
• Maximum Input Level: 9dBu at minimum gain

Line Inputs

• Frequency Response: 20Hz-20kHz±0.1dB
• Maximum Input Level: 15dBu at minimum gain
• Gain Range: 50dB
• Impedance: 47KΩ

Microphone Inputs

• Frequency Response: 20Hz-20kHz±0.1dB
• Maximum Input Level: 8dBu at minimum gain

Headphone Outputs

• Frequency Response: 75dB
• THD: ＜0.01%
• S/N: 6dBu
• Maximum Input Level: <10Ω
• Sampling Rates: 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz
• USB Connection: USB 2.0 (USB B)
• Power Requirements: Powered by Computers
• Power Supply: 48V Phantom Power

Line/Monitor Outputs

• Frequency Response: 80dB
• THD: ＜0.01%
• S/N: 10dBu
• Maximum Input Level: 47Ω


Includes:
1 x Audio Mixer
