2pc Boya By-WM8 Pro-K1 Dual-Channel Wireless Receiver/Transmitter - Black

2pc Boya By-WM8 Pro-K1 Dual-Channel Wireless Receiver/Transmitter - Black

The BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Receiver is upgraded addition of UHF Dual-Channel Wireless Microphone System and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

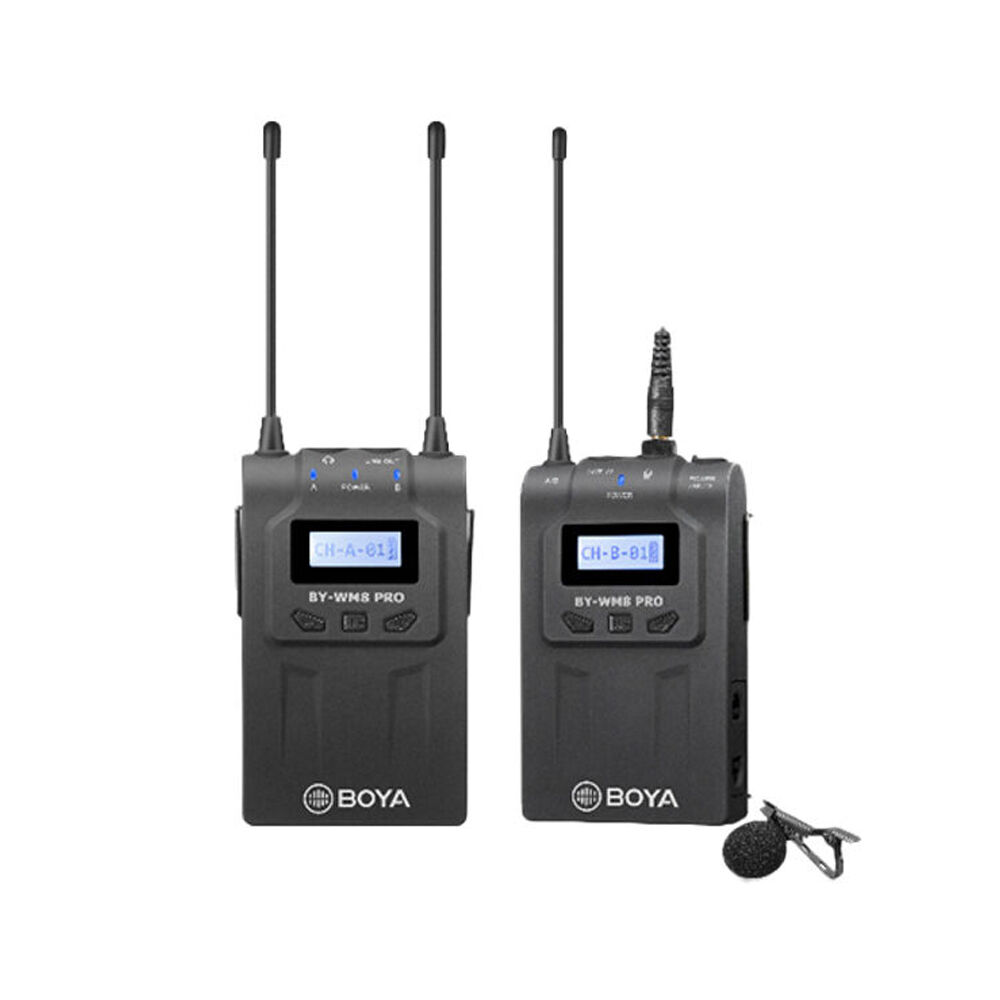

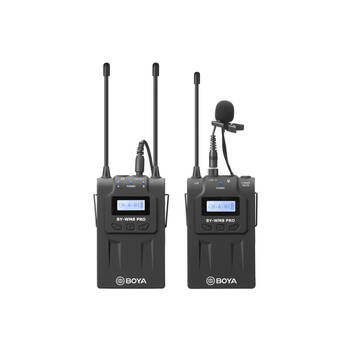

The BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Receiver system consists of a bodypack transmitter, a camera-mount receiver, and one omni-directional lavalier microphone. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case.

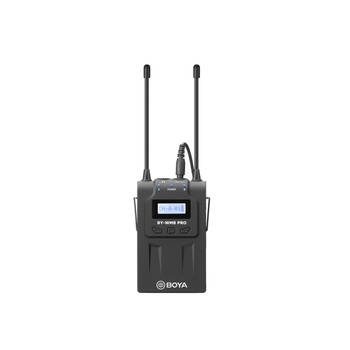

The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped with a crystal-controlled PLL synthesizer, a muting function, a 1/8" mic input and a 1/8" line-in jack.

The BOYA BY-WM8 Pro-K1 Dual-Channel Wireless Receiver features:

• Digital Companding Circuitry
• User-friendly menu operation with more control options
• Auto-Lock function avoids accidental changing of settings
• One Mic input and one Line Input for transmitter
• Monitoring of receiver via headphones directly
• Wide range of accessories adapts the system to most of requirements

• Dual-Channel Wireless Receiver
• Consists of One Transmitter and One Receiver
• UHF transmission with 48UHF channels
• Ideal for ENG/EFP, DSLR Video
• Broadcast Quality Sound
• Operation range can reach up to 100m
• Adjustable MONO and Stereo mode
• Powered by one 2 x AA batteries for both transmitter and receiver

• ​​​​Oscillator Type: PLL
• Transmitter Range A  : 556.71MHz - 575.98MHz
• Transmitter Range B: 576.39MHz - 595.66MHz
• Channels: 48
• Frequency Response: 40Hz to 18 kHz (+/-3dB)
• Operation Range: 100m without obstacle
• Antenna: 1/4 inch wire antenna
• Audio Input Connector: 3.5mm Mini Jack
• Signal to noise ratio: 70dB or more
• Distortion: 0.5% or less
• Headphone Output Level: 30mW
• Audio Output Level: -60dBV
• Power Supply: 2 x AA Batteries
• Operation Time: Approximately 4 hours
• Dimensions: 20.8 x 6.7 x 2.9cm
• Weight: 90g without batteries

Includes:
1 x Receiver
1 x Transmitter
