CHIME HANDSET INTERCOM SLAVE UNIT - AIPHONE

CHIME HANDSET INTERCOM SLAVE UNIT - AIPHONE

The Aiphone IE series handset intercom is suitable for home and business use. There are five different models of handsets master stations to suit different applications

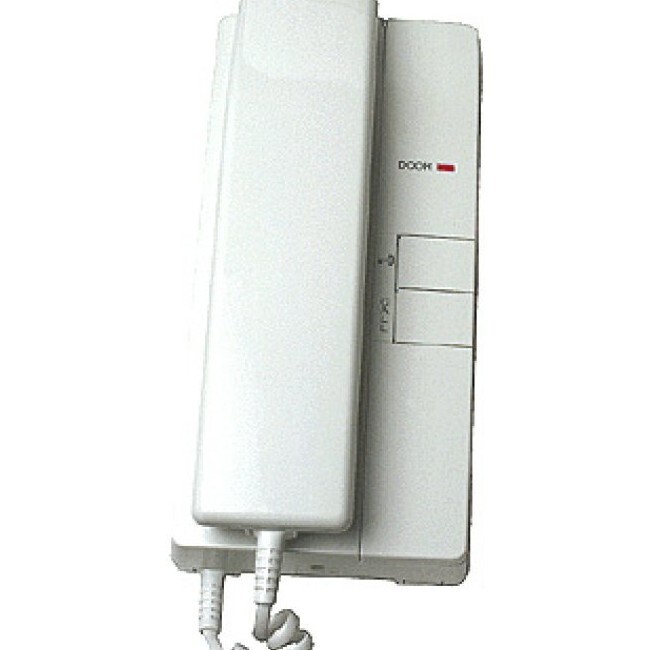

The IEH-1CD audio handset sub master station for use withthe IE1GDU and IE2ADU master stations; max of two per system.

FEATURES:

• Two and Four tone electronic chime
• Chime volume adjustment on handsets
• Answer the door from any room station
• All Call internal calling between handsets
• Door release button (additional hardware required)
• AC or DC power source ( 12-16V AC or 12-24V DC )
• Wiring::- 2 non polarized to door station, plus 2 to door release. and 6 wires in loop between rooms Distance 150 mtrs. ( 0.65mm - 22AWG), 360mtrs ( 1.0mm )
• Optional chime extension
• Can be used with IE or IF door stations
• Size: 100 x 210 x 68mm ( WHD)
