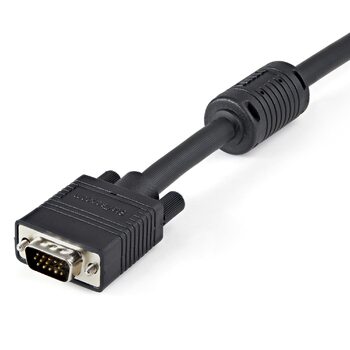

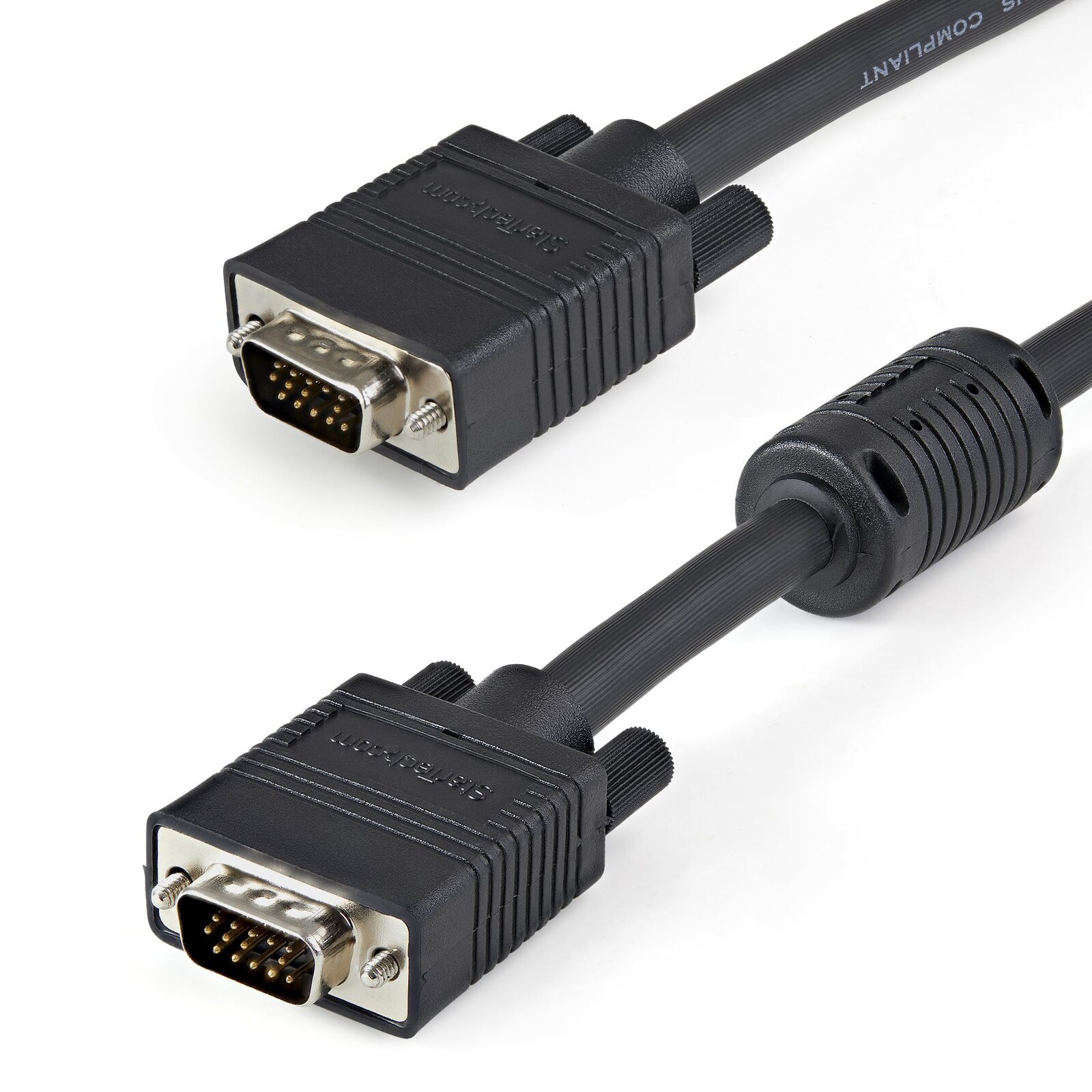

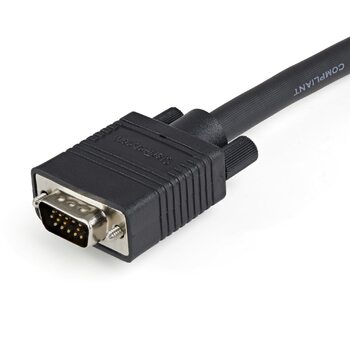

Star Tech 1m Coax High Resolution Monitor VGA Cable - HD15 M/M

This item comes with 5 years warranty

Star Tech 1m Coax High Resolution Monitor VGA Cable - HD15 M/MThe MXTMMHQ1M High Resolution VGA Cable (1-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above. This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.

Packaging Information
Shipping (Package) Weight  : 0.2 kg [0.5 lb]

Performance
Impedance  : 75 Ohm

Physical Characteristics
Cable Length  : 1 m [3.3 ft]
Cable OD  : 9 mm [0.4 in]
Color  : Black
Max Connector Dimension  : 34 mm [1.3 in]
Product Height  : 5 mm [0.2 in]
Product Length  : 1 m [3.3 ft]
Product Width  : 5 mm [0.2 in]
Weight of Product  : 195 g [6.9 oz]
Wire Gauge  : 28 AWG

What's in the Box
Included in Package  : 1 m Coax High Resolution Monitor VGA Cable - HD15 M/M
Nuts

Packaging Information
Package Width  : 20 cm [7.9 in]
Package Quantity  : 1
Package Length  : 22 cm [8.7 in]
Package Height  : 17 mm [0.7 in]

Hardware
Regulatory Approvals  : UL2919
Number of Ferrites  : 1
Fire Rating  : CMG Rated (General Purpose)
Connector Plating  : Nickel
Cable Shield Material  : Aluminum-Mylar Foil with Braid
Cable Jacket Material  : PVC - Polyvinyl Chloride

Environmental
Storage Temperature  : -20 to 80 °C
Operating Temperature  : 0 to 60 °C
Humidity  : 0 - 80 %RH

Connector(s)
Connector B  : VGA (15 pin, High Density D-Sub) Male
Connector A  : VGA (15 pin, High Density D-Sub) Male
