Star Tech 6 ft DisplayPort to DVI Cable - M/M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

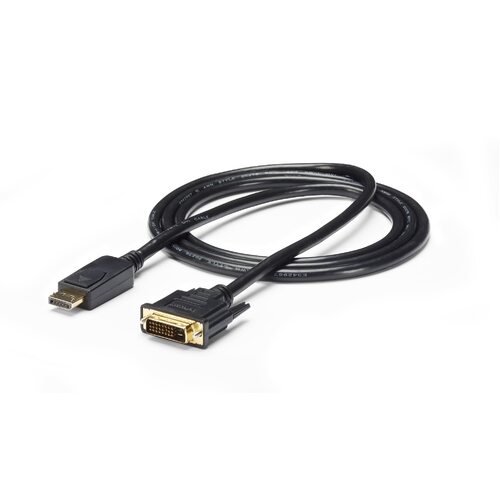

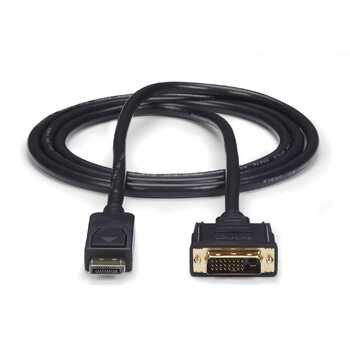

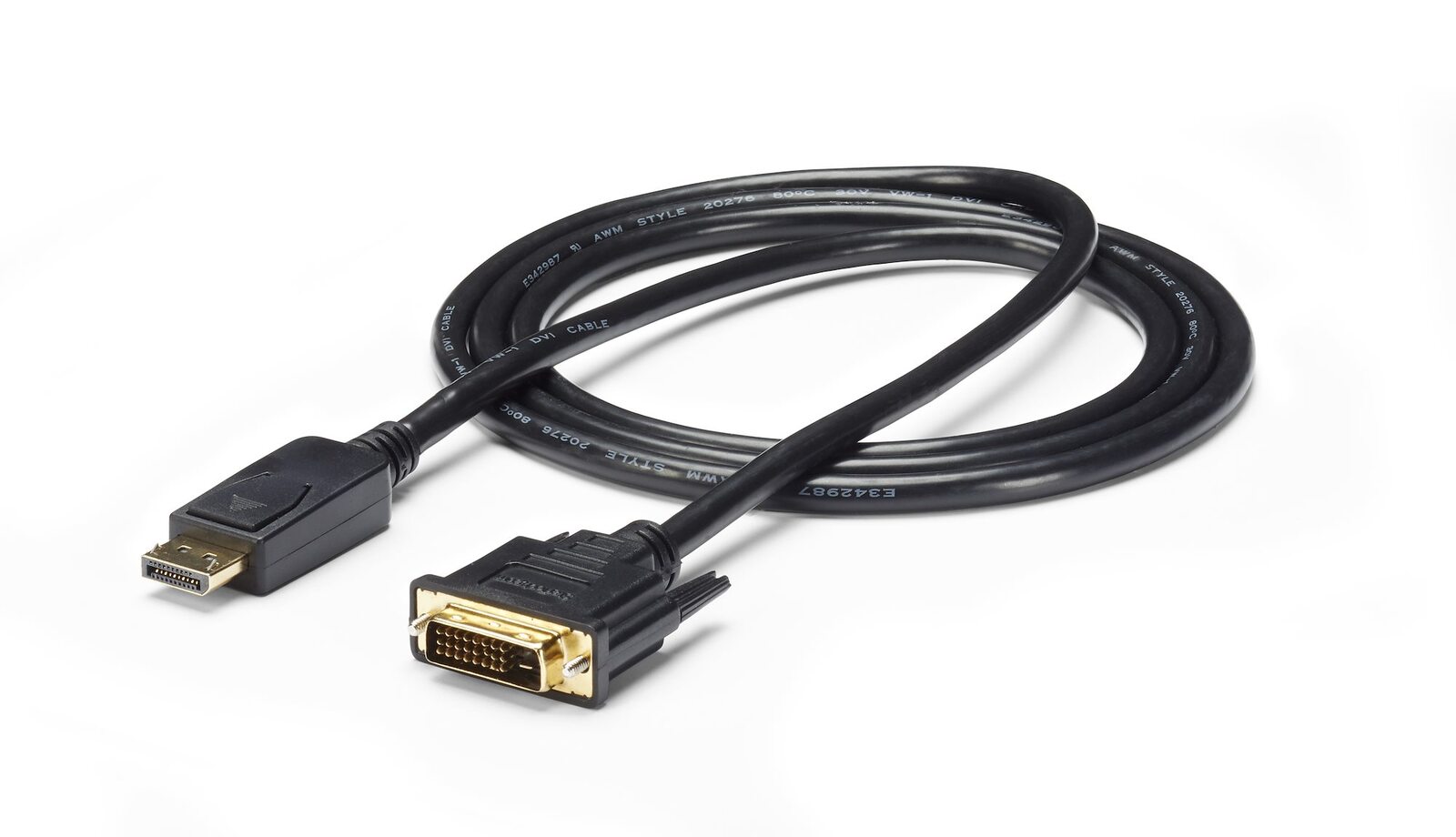

Star Tech 6 ft DisplayPort to DVI Cable - M/M

The DP2DVI2MM6 6 ft DisplayPort® to DVI Adapter Cable lets you connect a DVI Display or Projector to a DisplayPort video card/source. Providing a connection distance of 6ft, the cable features male DVI and DisplayPort connectors, allowing you to make a direct video card-to-display connection, as opposed to having to use an adapter with a separate cable.

The DP to DVI cable is a convenient, cost-effective solution for taking full advantage of your DVI display, without the expense of upgrading to a DisplayPort monitor. The cable offers high quality construction and supports high bandwidth video resolutions up to 1920x1200 or HDTV resolutions up to 1080p.

DP2DVI2MM6 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

(DP2DVI2MM6)

This item comes with a 3 Years warranty

Performance
Audio Specifications: DVI - No Audio Support
Maximum Digital Resolutions: 1920x1200 / 1080p

Physical Characteristics
Cable Length: 1.8 m [6 ft]
Color: Black
Product Height: 1.5 cm [0.6 in]
Product Length: 1.8 m [6 ft]
Product Width: 40 mm [1.6 in]
Weight of Product: 143 g [5 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com 6' DisplayPort to DVI Cable - DP to DVI-D Monitor Adapter M/M

Special Notes / Requirements
Note: DP++ (DisplayPort++) port is required on video card or video source for DVI and HDMI pass-through.

What's in the Box
Included in Package: 6 ft DisplayPort to DVI Cable - M/M

Packaging Information
Shipping (Package) Weight: 152 g [5.4 oz]
Package Width: 20 cm [7.9 in]
Package Length: 22 cm [8.7 in]
Package Height: 31 mm [1.2 in]

Hardware
Connector Plating: Gold
Cable Jacket Material: PVC - Polyvinyl Chloride
AV Output: DVI-D - Single-Link
AV Input: DisplayPort - 1.2
Audio: No
Active or Passive Adapter: Passive

Environmental
Storage Temperature: -10°C to 80°C (14°F to 176°F)
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Humidity: 10%-85%RH

Connector(s)
Connector B: DVI-D (25 pin) Male
Connector A: DisplayPort (20 pin) Male

Model # DP2DVI2MM6
Barcode # 065030840248
Brand STAR TECH
Shipping Weight 0.1500kg
Shipping Width 0.220m
Shipping Height 0.030m
Shipping Length 0.200m
Shipping Cubic 0.001320000m3
Type DisplayPort Cable
