Star Tech 6ft Mini DisplayPort to DVI Adapter - Mini DP to DVI - Black

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

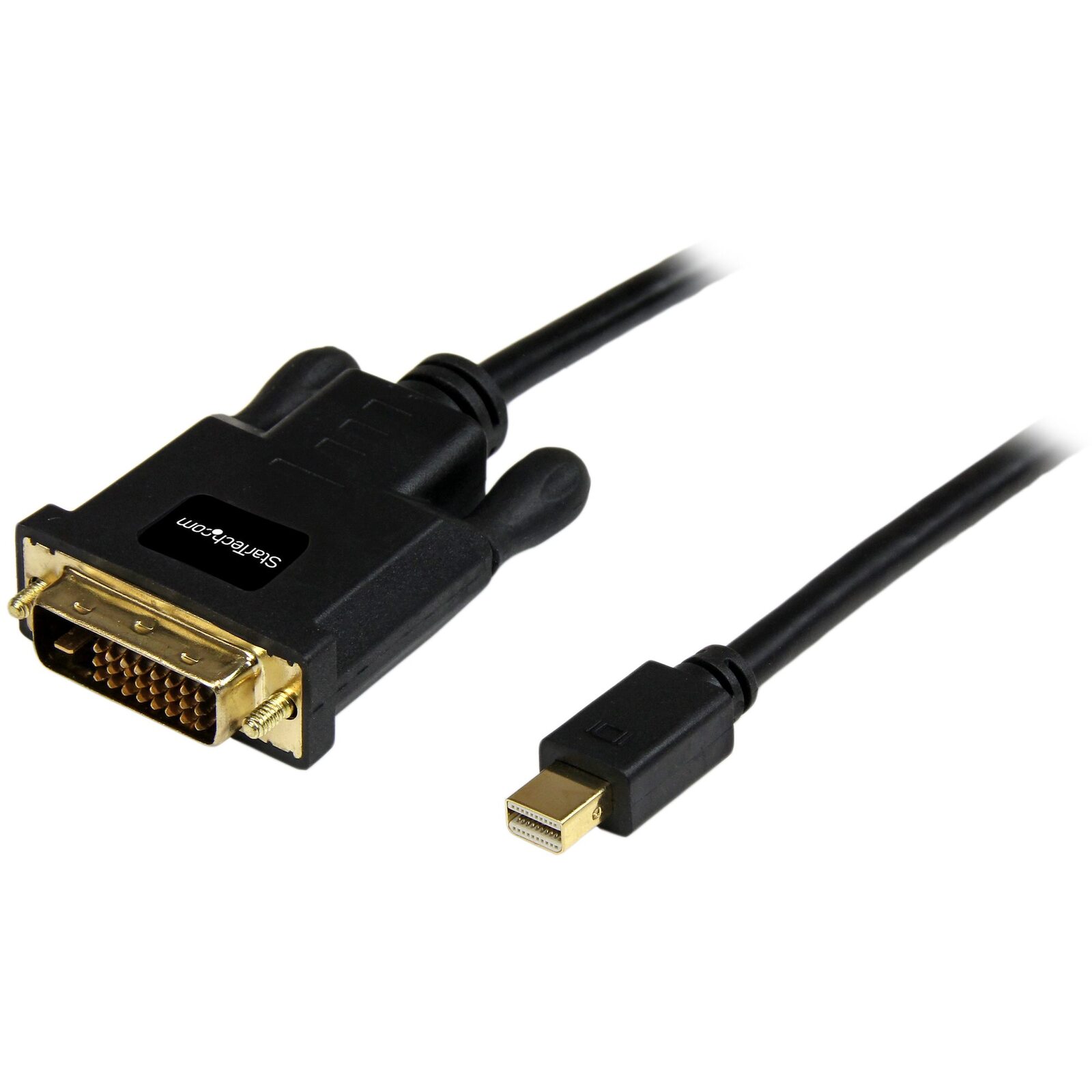

Star Tech 6ft Mini DisplayPort to DVI Adapter - Mini DP to DVI - Black

The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

(MDP2DVIMM6B)

This item comes with a 3 Years warranty

Performance
Maximum Cable Length: 1.8 m [6 ft]
Maximum Digital Resolutions: 1920x1200 / 1080p
MTBF: 2,405,577 hours
Wide Screen Supported: Yes

Physical Characteristics
Cable Length: 1.8 m [6 ft]
Color: Black
Product Height: 1.5 cm [0.6 in]
Product Length: 1.8 m [6 ft]
Product Width: 40 mm [1.6 in]
Weight of Product: 101.3 g [3.6 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com 6ft Mini DisplayPort to DVI Adapter Cable - Mini DP to DVI-D

Special Notes / Requirements
System and Cable Requirements: DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through

What's in the Box
Included in Package: Mini DisplayPort® to DVI Adapter

Performance
Audio Specifications: DVI - No Audio Support

Packaging Information
Shipping (Package) Weight: 125 g [4.4 oz]
Package Width: 16 cm [6.3 in]
Package Length: 24 cm [9.4 in]
Package Height: 20 mm [0.8 in]

Hardware
Chipset ID: NXP - 3361
AV Output: DVI-D - Single-Link
AV Input: Mini DisplayPort - 1.2
Audio: No
Active or Passive Adapter: Passive

Environmental
Storage Temperature: -10°C to 70°C (14°F to 158°F)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Humidity: 40%-85%RH

Connector(s)

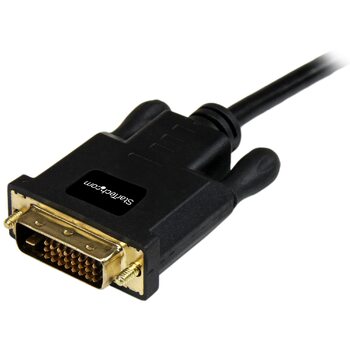

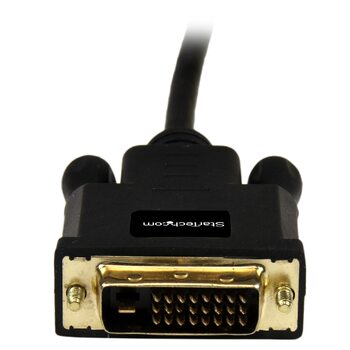

Connector B: DVI-D (25 pin) Male

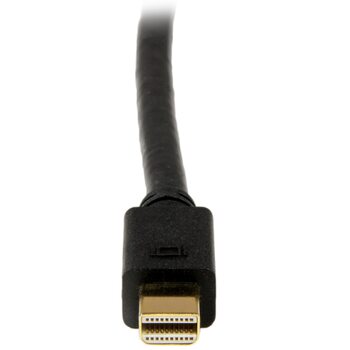

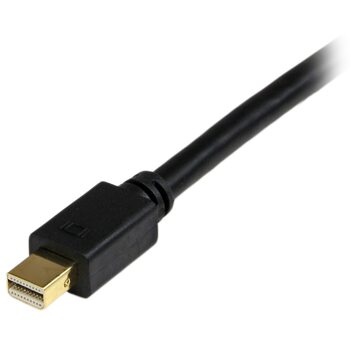

Connector A: Mini-DisplayPort (20 pin) Male

Model # MDP2DVIMM6B
Barcode # 065030851466
Brand STAR TECH
Shipping Weight 0.1300kg
Shipping Width 0.240m
Shipping Height 0.020m
Shipping Length 0.160m
Shipping Cubic 0.000768000m3
Type DisplayPort Cable
