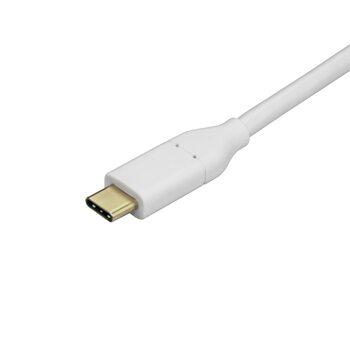

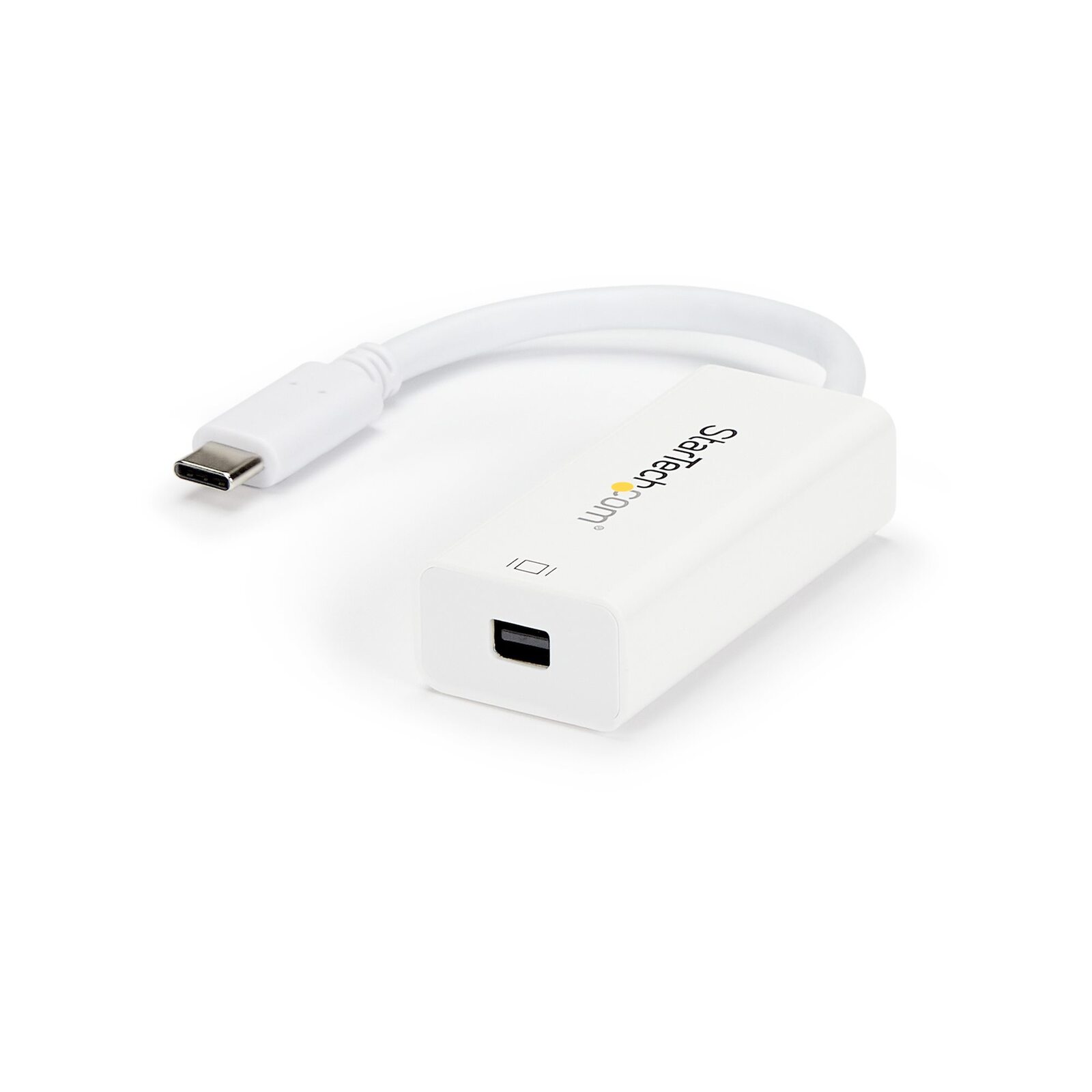

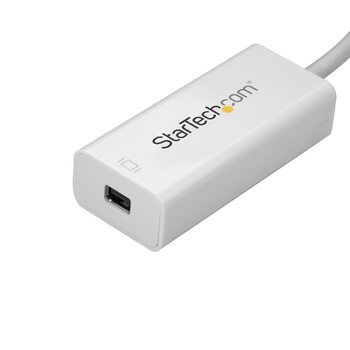

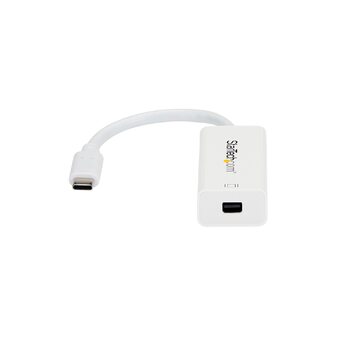

Star Tech USB-C to Mini DisplayPort Adapter - 4K 60Hz - White

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech USB-C to Mini DisplayPort Adapter - 4K 60Hz - White

This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

Enjoy High-Definition Resolution up to 4K at 60Hz

Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to deliver the astonishing quality of UHD to your 4K 60Hz display.

You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.

Hassle-Free Connection for Your USB Type-C Laptop

This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

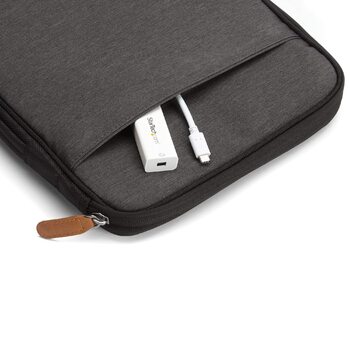

Lightweight Design for Easy Portability

The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road. 

(CDP2MDP)

This item comes with a 3 Years warranty

Performance
Maximum Cable Distance To Display: 2 m [6.6 ft]
Maximum Digital Resolutions: 4K (3840 x 2160) @ 60 Hz
Supported Resolutions: 1024 x 768
1280 x 720
1920 x 1080 @ 144hz
1920 x 1200
2560 x 1440
2560 x 1600
3840 x 2160 @ 60Hz
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes

Physical Characteristics
Cable Length: 14 mm [0.6 in]
Color: White
Material: Plastic
Product Height: 1.6 cm [0.6 in]
Product Length: 180 mm [7.1 in]
Product Width: 27 mm [1.1 in]
Weight of Product: 23 g [0.8 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com USB C to Mini DisplayPort Adapter - USB C to Mini DP - 4K 60Hz

Special Notes / Requirements
System and Cable Requirements: This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters : This adapter will not support Thunderbolt displays : Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter

What's in the Box
Included in Package: USB-C to Mini DisplayPort adapter

Performance
Audio Specifications: DisplayPort - 7.1 Channel Audio

Packaging Information
Shipping (Package) Weight: 31 g [1.1 oz]
Package Width: 12.5 cm [4.9 in]
Package Length: 22.5 cm [8.9 in]
Package Height: 0.1 mm [0 in]

Hardware
Chipset ID: NXP - PTN5100
Pericom - PI3DPX1203
AV Output: Mini DisplayPort - 1.2
AV Input: USB-C
Audio: Yes
Active or Passive Adapter: Passive

Environmental
Storage Temperature: -10°C to 70°C (14°F to 158°F)
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Humidity: 10%-85%RH

Connector(s)
Connector A: USB-C (24 pin) DisplayPort Alt Mode Input Male : Mini-DisplayPort (20 pin) Output Female

Model # CDP2MDP
Barcode # 065030875813
Brand STAR TECH
Shipping Weight 0.0300kg
Shipping Width 0.230m
Shipping Height 0.010m
Shipping Length 0.130m
Shipping Cubic 0.000299000m3
Type AV Adapter/Converter
