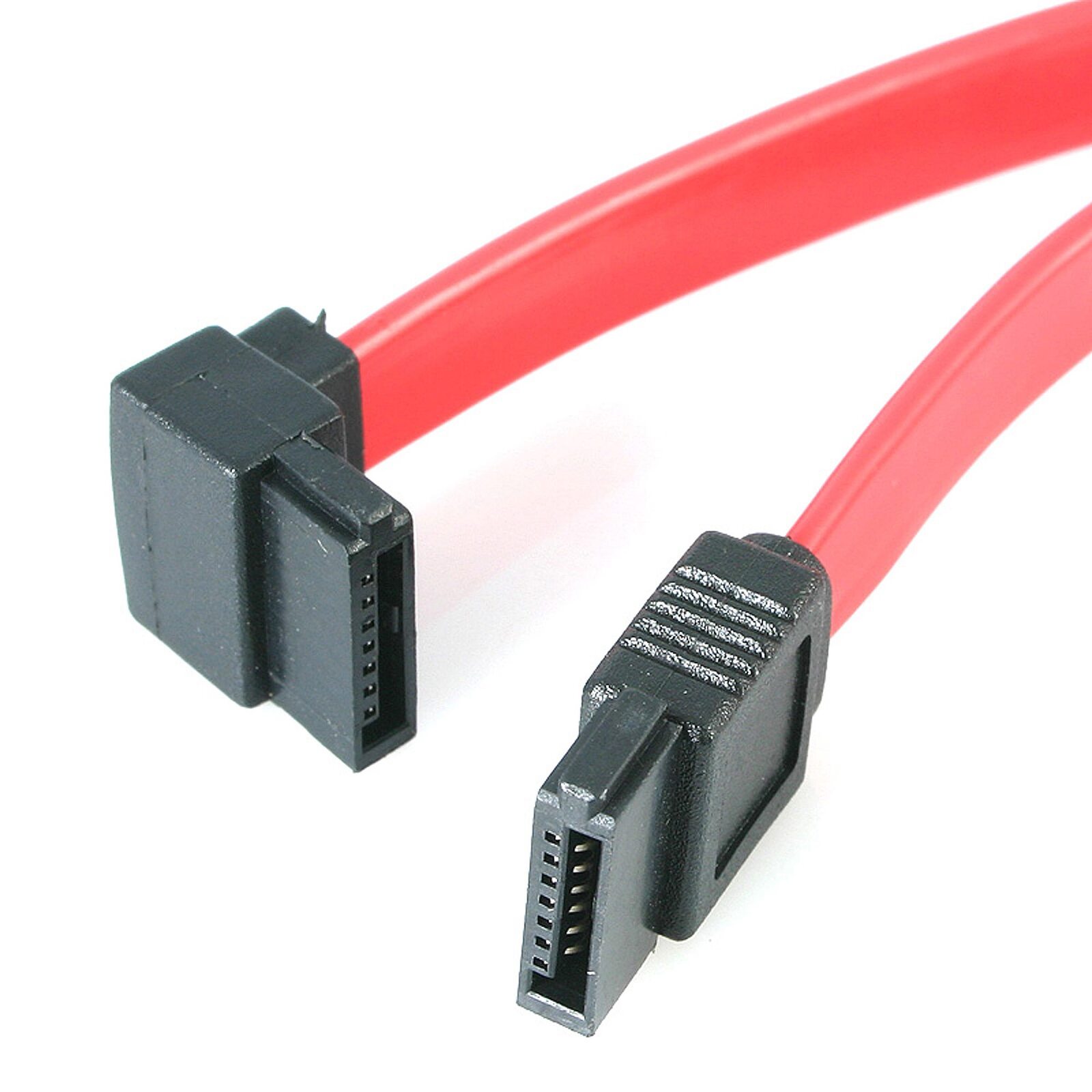

12in SATA to Left Angle SATA Serial ATA Cable

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

The SATA12LA1 Left Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a left-angled SATA receptacle, providing a simple 12-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.

The left-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.

Constructed of only top quality materials and designed for optimum performance and reliability

(SATA12LA1)

Standard Consumer Warranty
Constructed of only top quality materials and designed for optimum performance and reliability

Physical Characteristics
Connector Style: Straight to Left Angle
Product Height: 6.2 mm [0.2 in]
Product Length: 304.8 mm [12 in]
Product Width: 1.2 cm [0.5 in]
Weight of Product: 12 g [0.4 oz]
Wire Gauge: 26 AWG (0.404 mm)

Prominence
Description CDW 75 - 1st Line: StarTech.com 12in SATA to Left Angle SATA Serial ATA Cable

What's in the Box
Included in Package: 12in SATA to Left Angle SATA Serial ATA Cable

Physical Characteristics
Color: Red
Cable Length: 304.8 mm [12 in]

Performance
Type and Rate: SATA III (6 Gbps)

Packaging Information
Shipping (Package) Weight: 17 g [0.6 oz]
Package Width: 21.9 cm [8.6 in]
Package Quantity: 1
Package Length: 12.8 cm [5 in]
Package Height: 0.6 mm [0 in]

Hardware
Number of Conductors: 7
Cable Jacket Material: PVC - Polyvinyl Chloride

Environmental
Storage Temperature: 24°C to 25°C (75.2°F to 77°F)
Operating Temperature: 20°C to 80°C (68°F to 176°F)
Humidity: 50% relative humidity

Connector(s)
Connector B: SATA (7 pin, Data) Receptacle
Connector A: SATA (7 pin, Data) Receptacle

Model # SATA12LA1
Barcode # 065030842723
Brand STAR TECH
Shipping Weight 0.0200kg
Shipping Width 0.130m
Shipping Height 0.010m
Shipping Length 0.220m
Shipping Cubic 0.000286000m3
Type Cable
