Star Tech USB Serial Hub - 4Port USB to DB9 RS232 Serial Adapter Hub
or 4 payments of $62.00 with Learn more
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop insta
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
Star Tech USB Serial Hub - 4Port USB to DB9 RS232 Serial Adapter Hub

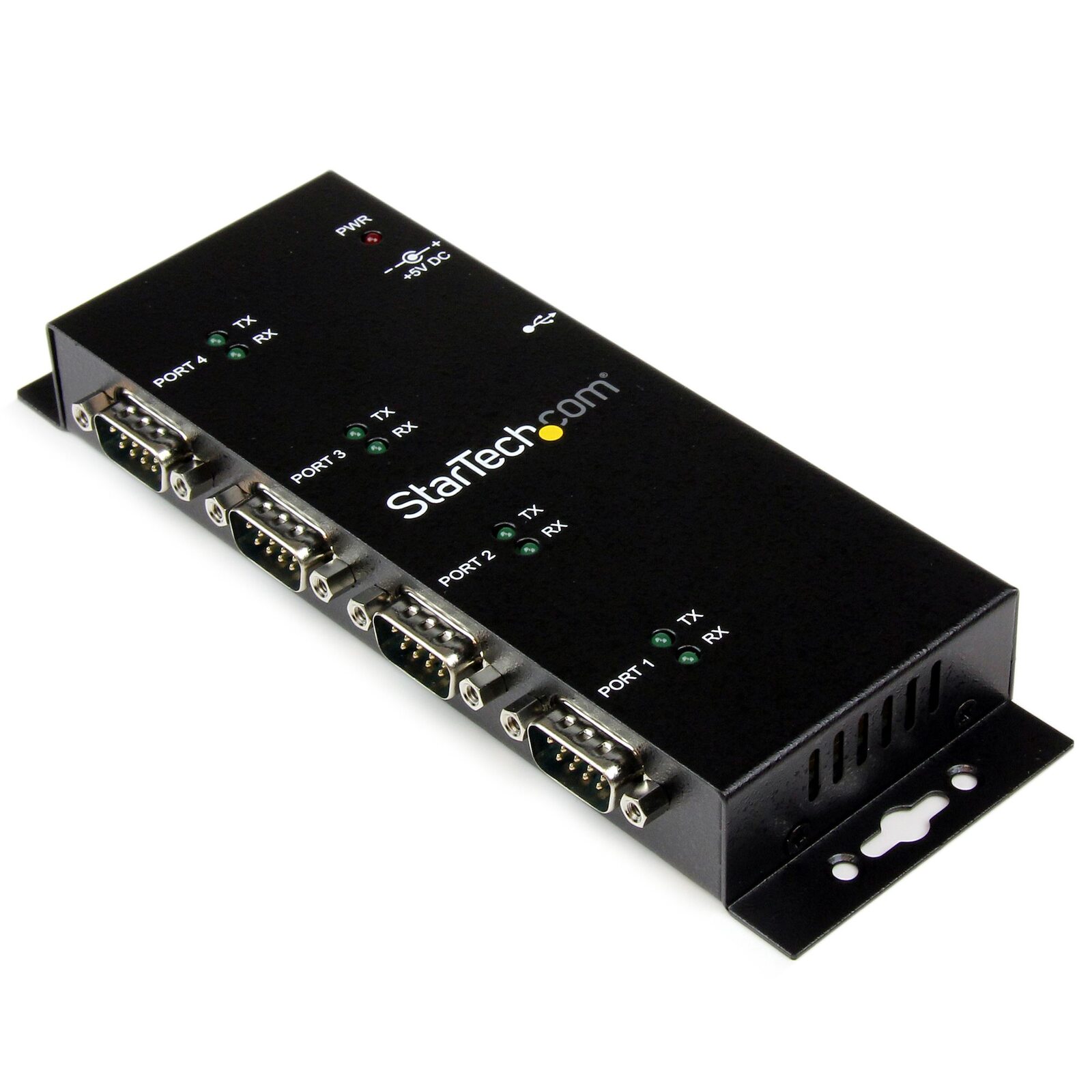

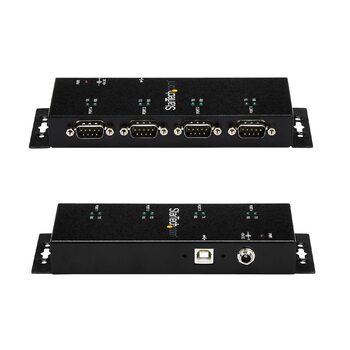

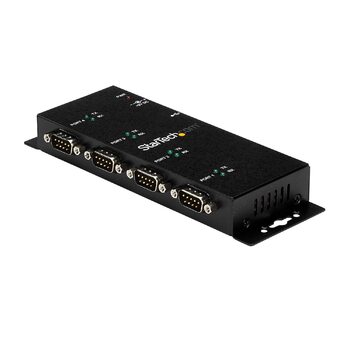

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.

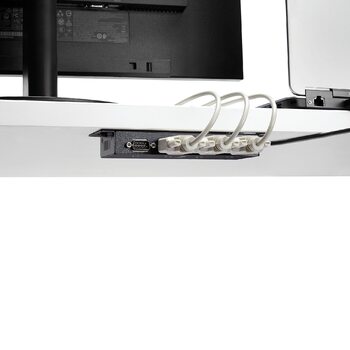

Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
(ICUSB2324I)
This item comes with a 2 Years warranty
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Performance
Data Bits : 7, 8
FIFO : 256 Bytes
Max Baud Rate : 921.6 Kbps
Maximum Data Transfer Rate : 921.6Kbps
MTBF : 282713.5 hours
Parity : Odd, Even, Mark, Space, None
Serial Protocol : RS-232
Stop Bits : 1, 2
Physical Characteristics
Color : Black
Material : Steel
Product Height : 2.3 cm [0.9 in]
Product Length : 17.8 cm [7 in]
Product Width : 5.9 cm [2.3 in]
Weight of Product : 300 g [10.6 oz]
Power
Input Voltage : 5V DC
Plug Type : M
Power Source : USB-Powered
Software
OS Compatibility : Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0
Linux 2.4.x to 4.11.x LTS Versions only
What's in the Box
Included in Package : 6 ft USB A to B cable
DIN rail kit
Driver CD
Instruction Manual
USB to RS-232 Serial Adapter
Packaging Information
Shipping (Package) Weight : 518 g [18.3 oz]
Package Width : 21.6 cm [8.5 in]
Package Length : 15.2 cm [6 in]
Package Height : 50 mm [2 in]
Indicators
LED Indicators : Each, Tx/Rx Activity indicators
Hardware
Ports : 4
Port Style : External Hub
Interface : Serial
Chipset ID : FTDI - FT4232HL
Bus Type : USB 2.0
Environmental
Storage Temperature : -20°C to 85°C (-4°F to 185°F)
Operating Temperature : 0°C to 55°C (32°F to 131°F)
Humidity : 5~95% RH
Connector(s)
Connector Type(s) : USB B (4 pin) Female
DB-9 (9 pin, D-Sub) Male
Model # | ICUSB2324I |
Barcode # | 065030848343 |
Brand | STAR TECH |
Shipping Weight | 0.5200kg |
Shipping Width | 0.150m |
Shipping Height | 0.050m |
Shipping Length | 0.220m |
Shipping Cubic | 0.001642000m3 |
Type | Adapter |
