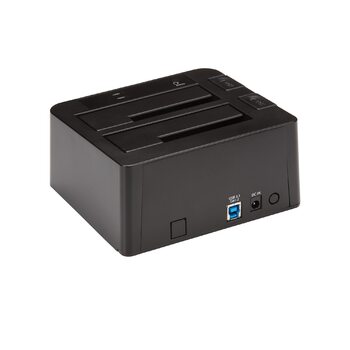

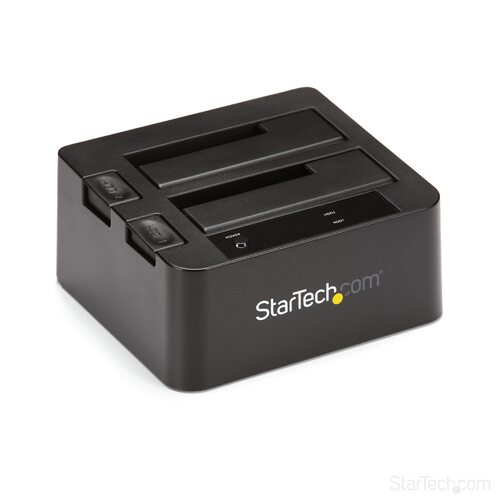

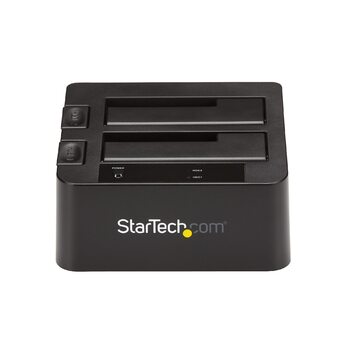

Star Tech 2-bay USB 3.1 SATA dock with UASP - Tool-free & trayless

Get unprecedented performance and storage capacity with this USB 3.1 Gen 2 (10 Gbps) dual-drive docking station. It supports both 2.5” and 3.5” form factor solid-state and hard drives, with a high capacity storage capability of 12TB (6TB per drive).

Harness the speed of USB 3.1 Gen 2

USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

Top-loading design for easy drive access

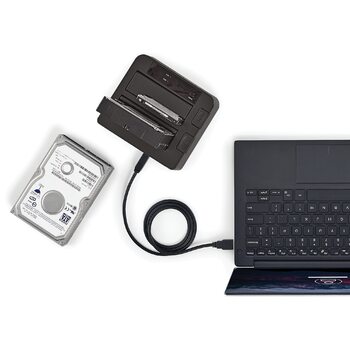

It’s never been easier to dock and swap drives from your desktop computer or laptop. Simply insert your drives into the top loading slot, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

Convenient compatibility

The dual-drive docking station comes with a USB Type-A to B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices.  It also supports UASP for enhanced performance.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5” or 3.5” IDE hard drive into a SATA hard drive dock.

(SDOCK2U313)

This item comes with a 2 Years warranty

Harness the speed of USB 3.1 Gen 2

Indicators
LED Indicators  : HDD Activity
Power

Packaging Information
Package Height  : 12 cm [4.7 in]
Package Length  : 21 cm [8.3 in]
Package Width  : 19 cm [7.5 in]
Shipping (Package) Weight  : 980 g [34.6 oz]

Performance
4Kn Support  : Yes
Max Drive Capacity  : Currently tested with hard drives up to 6TB at 7200 RPM
Maximum Data Transfer Rate  : 10 Gbps
TRIM Support  : Yes
Type and Rate  : SATA III (6 Gbps)
USB 3.1 Gen 2 - 10 Gbit/s
UASP Support  : Yes

Physical Characteristics
Color  : Black
Material  : Plastic
Product Height  : 7 cm [2.8 in]
Product Length  : 13.2 cm [5.2 in]
Product Width  : 14.8 cm [5.8 in]
Weight of Product  : 502 g [17.7 oz]

Power
Center Tip Polarity  : Positive
Input Current  : 1.3A
Input Voltage  : 100 - 240 AC
Output Current  : 3000 mA
Output Voltage  : 12V DC
Plug Type  : M
Power Consumption (In Watts)  : 36
Power Source  : AC Adapter Included

Prominence
Description CDW 75 - 1st Line  : StarTech.com USB 3.1 (10Gbps) Dual-Bay Dock for 2.5"/3.5" SATA Drives

Software
OS Compatibility  : OS independent; No software or drivers required

Special Notes / Requirements
Note  : Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.

What's in the Box
Included in Package  : Power Adapter Plugs (NA/EU/UK/AUS)
Quick Install Guide
Universal Power Adapter - 49.5 inches (cable)

Hardware
Number of internal 3.5 inch bays  : 2
Number of Drives  : 2
Number of 2.5 inch bays  : 2
Interface  : USB 3.1 Gen 2
Fan(s)  : No
Drive Size  : 2.5in & 3.5in
Drive Installation  : Removable
Compatible Drive Types  : SATA
Chipset ID  : ASMedia - ASM1352R
Bus Type  : USB 3.1 Gen 2

Environmental
Storage Temperature  : -20°C to 50°C (-4°F to 122°F)
Operating Temperature  : 5°C to 35°C (35°F to 95°F)
Humidity  : 20% ~ 80% RH

Connector(s)
Host Connectors  : USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female
Drive Connectors  : SATA Data & Power Combo (7+15 pin) Receptacle

What's in the Box
Included in Package  : USB 3.1 A-to-B Cable - 41 inches
USB 3.1 Dual-drive HDD Dock

Model # SDOCK2U313
Barcode # 065030861663
Brand STAR TECH
Shipping Weight 0.9800kg
Shipping Width 0.210m
Shipping Height 0.120m
Shipping Length 0.190m
Shipping Cubic 0.004788000m3
Type Dock
