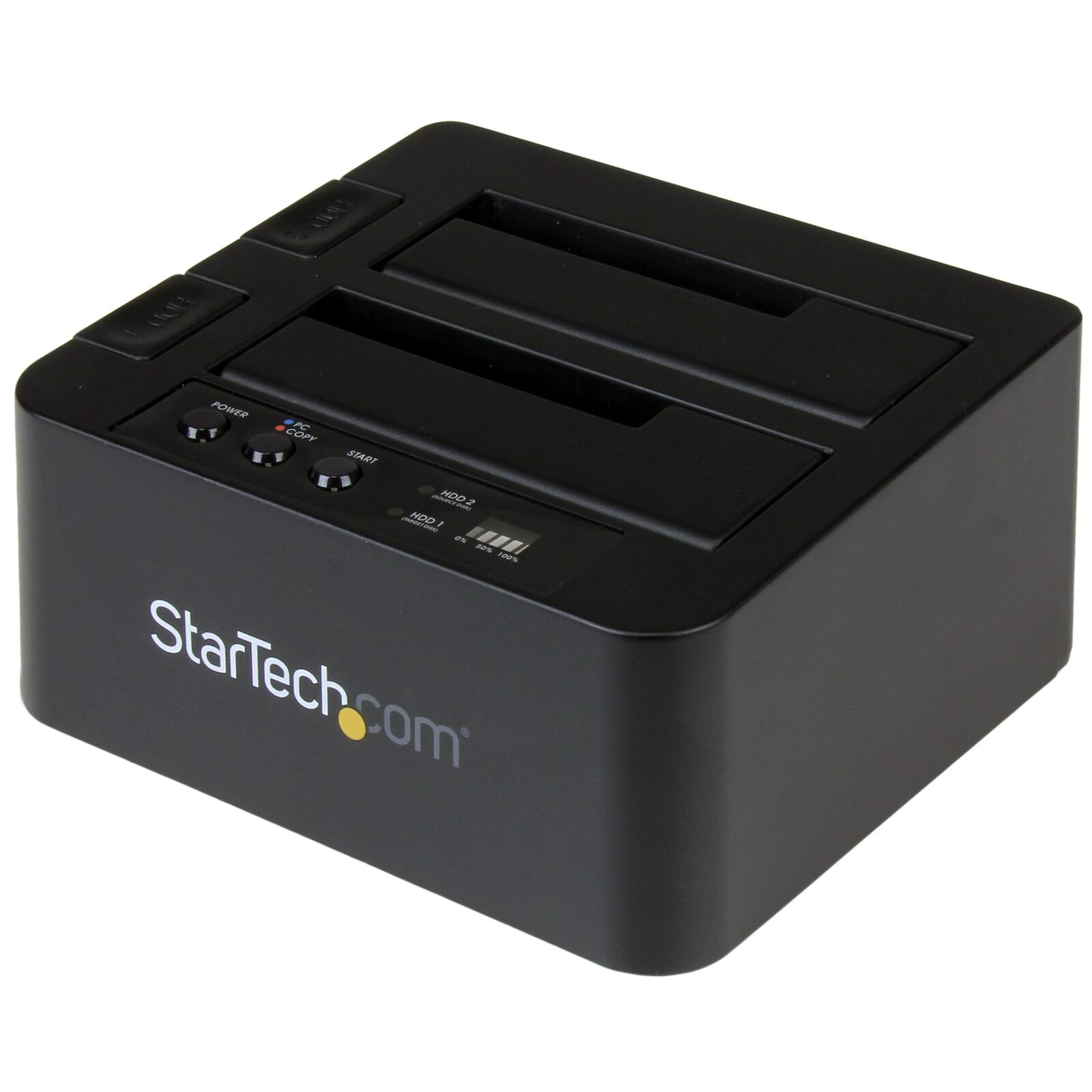

Star Tech USB 3.1 HDD Cloner and Dock for 2.5"/3.5" SATA SSD/HDD

Duplicate drives quickly, at rates of up to 28GB per minute for SSDs, without having to connect to your computer. This duplicator dock offers standalone drive cloning that makes it easy to back up your data and make exact images of your drives. You can also connect the dock to your computer through USB 3.1 (10Gbps), to dock and swap your drives as part of a scalable storage solution.

Clone your drives at high speed

Duplicating a hard drive or solid-state drive is an effective way to migrate your operating system and data from one drive to another, or create an exact copy for safeguarding your important data. This drive duplicator lets you create a sector-by-sector clone of your drive, including partitions and boot sector information, to ensure data integrity and consistency for sensitive operations such as data recovery.

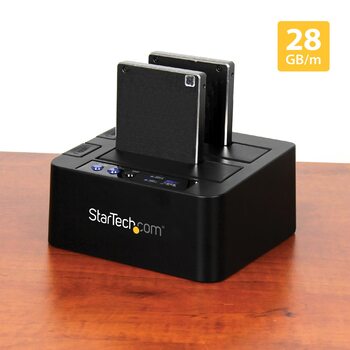

The duplicator dock saves you valuable time with SSD duplication speeds of up to 28GB per minute. You can duplicate a 2.5” or 3.5” SATA SSD or HDD easily, without having to connect the duplicator to a host computer.

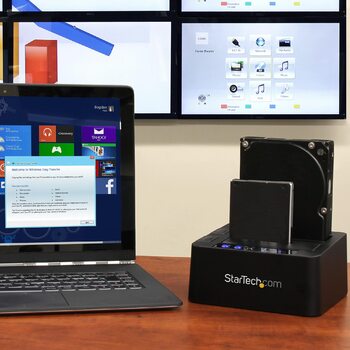

Transfer files quickly between the dock and your PC

The duplicator dock also provides an external storage solution, letting you dock your drives through USB 3.1 Gen 2 with UASP support, enabling fast data transfer rates of up to 10Gbps. Each drive slot individually supports a high-capacity hard drive or solid-state drive, tested up to 6 TB.

Includes two USB cables for versatility

The duplicator dock comes with two USB cables for flexible use with the latest laptops and tablets equipped with a USB-C™ port, as well as legacy devices. It includes both USB-C to B and USB-A to B cables. The duplicator dock is also compatible with a Thunderbolt™ 3 USB-C port.

Designed for easy use

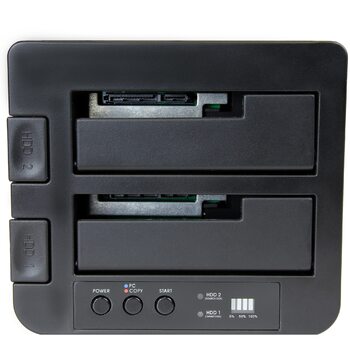

The dock features a top-loading, toaster-style design that makes it easy to insert your drives. It also features drive doors to help stabilize drives that are inserted into the slot and prevent foreign objects from getting into the drive slots.

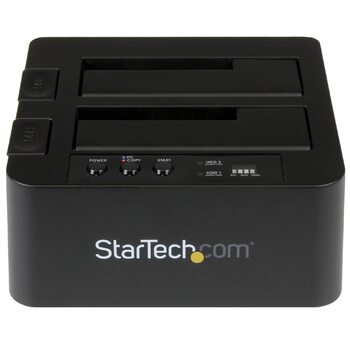

Both tool-less and tray-less, the duplicator dock helps to ensure quick and hassle-free drive insertions. LED indicators let you know, at a glance, the current state of the duplication process, including the specific duplication mode, the HDD status and clone progress. The HDD ejection button enables fast and simple drive removal.

For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

SATA to 2.5in or 3.5in IDE Drive Adapter - SAT2IDEADP
2.5in SATA to Mini SATA SSD Adapter - SAT2MSAT25
M.2 SSD to 2.5in SATA Adapter - SAT32M225

(SDOCK2U313R)

This item comes with a 2 Years warranty

You can also connect the dock to your computer through USB 3.1 (10Gbps), to dock and swap your drives as part of a scalable storage solution

Indicators
LED Indicators  : Mode
Power

Packaging Information
Package Height  : 88 mm [3.5 in]
Package Length  : 16.6 cm [6.5 in]
Package Width  : 30 cm [11.8 in]
Shipping (Package) Weight  : 992 g [35 oz]

Performance
4Kn Support  : Yes
Duplication Modes  : Sector by Sector (Whole Drive)
Duplication Speed  : 28GBpm
Hardware Raid Supported  : No
Hot Swap Capability  : Yes
Max Drive Capacity  : Tested with up to 6TB drives
Maximum Data Transfer Rate  : 10Gbps
Port Multiplier  : No
TRIM Support  : Yes
Type and Rate  : SATA III (6 Gbps)
USB 3.1 Gen 2 - 10 Gbit/s
UASP Support  : Yes

Physical Characteristics
Color  : Black
Material  : Plastic
Max Drive Height  : 25.4 mm [1 in]
Product Height  : 7 cm [2.8 in]
Product Length  : 14.2 cm [5.6 in]
Product Width  : 13.2 cm [5.2 in]
Weight of Product  : 508 g [17.9 oz]

Power
Center Tip Polarity  : Positive
Input Current  : 1.5A
Input Voltage  : 100 - 240 AC
Output Current  : 3000 mA
Output Voltage  : 12V DC
Plug Type  : M
Power Consumption (In Watts)  : 36
Power Source  : AC Adapter Included

Indicators
LED Indicators  : HDD Status
Clone

Hardware
Number of Drives  : 2
Interface  : USB 3.1 Gen 2
Fan(s)  : No
Drive Size  : 2.5in & 3.5in
Drive Installation  : Removable
Compatible Drive Types  : SATA
Chipset ID  : ASMedia - ASM1352R
Bus Type  : USB 3.1 Gen 2

Environmental
Storage Temperature  : -20°C - 50°C (-4°C to 122°C)
Operating Temperature  : 5°C - 35°C (41°C to 95°C)
Humidity  : 20%RH ~ 80%RH

Connector(s)

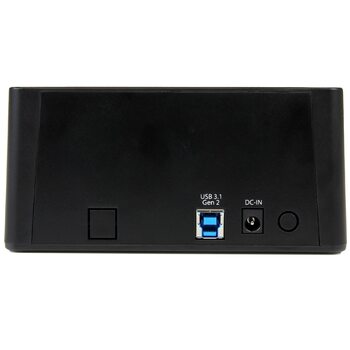

Host Connectors  : USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female
Drive Connectors  : SATA Data & Power Combo (7+15 pin) Receptacle

Prominence
Description CDW 75 - 1st Line  : StarTech.com USB 3.1 Hard Drive Duplicator Dock - 2.5" & 3.5" SATA SSD/HDDs

Software
OS Compatibility  : OS independent; No software or drivers required

Special Notes / Requirements
Note  : Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.

What's in the Box
Included in Package  : quick start guide
universal power adapter (NA/EU/UK/AU) - 40.75 inches (cable)
USB 3.0 A to B cable - 40.75 inches
USB 3.1 duplicator docking station
USB-C to B cable - 40 inches

Model # SDOCK2U313R
Barcode # 065030863551
Brand STAR TECH
Shipping Weight 0.9900kg
Shipping Width 0.170m
Shipping Height 0.090m
Shipping Length 0.300m
Shipping Cubic 0.004382000m3
Type Dock
