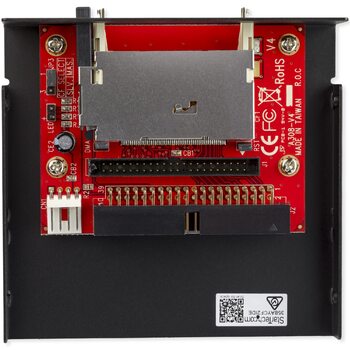

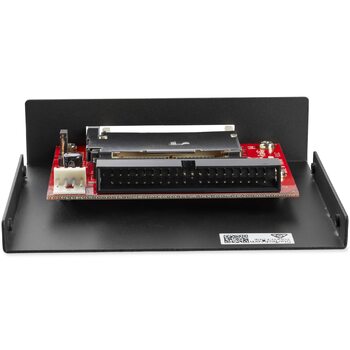

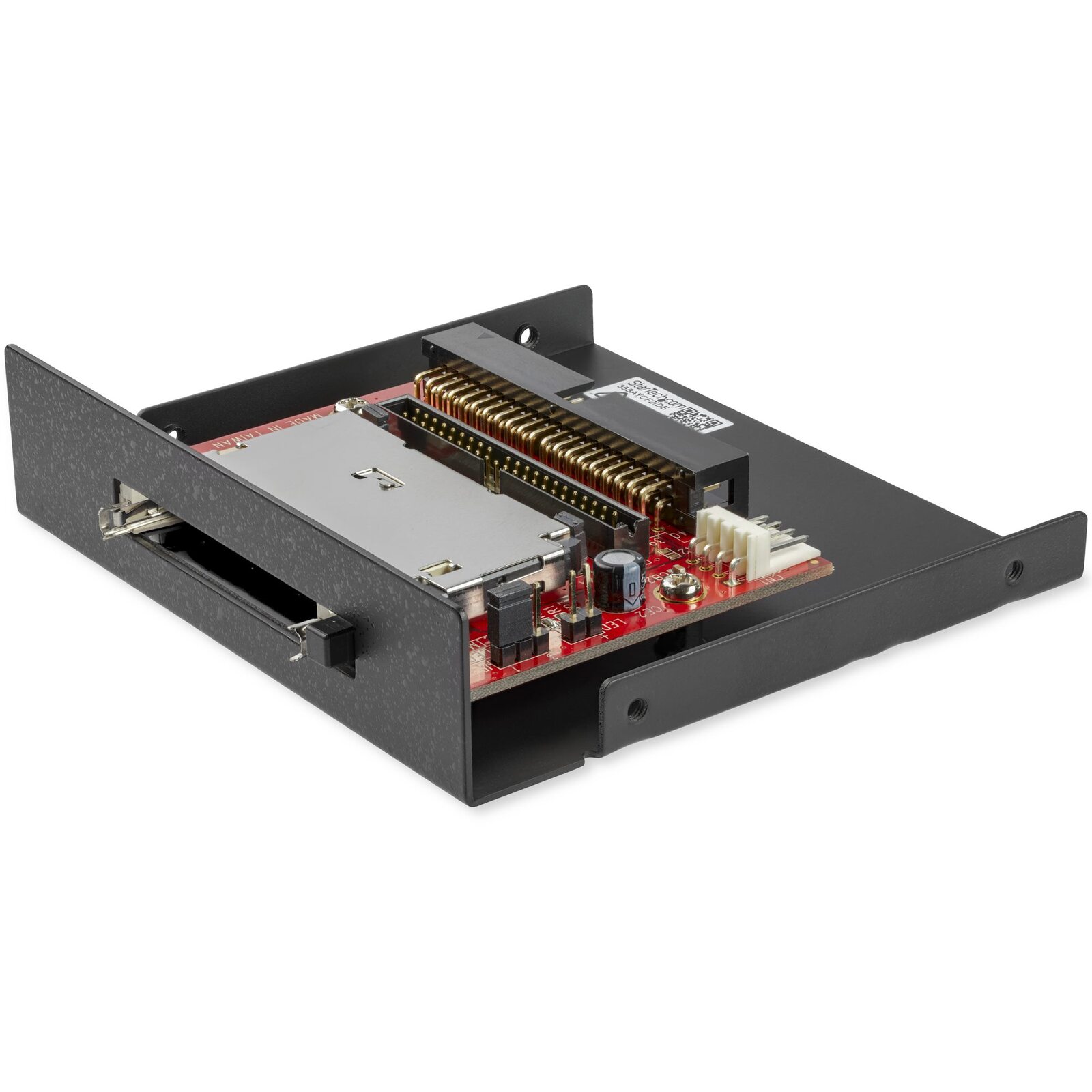

Star Tech 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive.

The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection.

Designed and constructed to provide a reliable media card platform, the CF IDE adapter

(35BAYCF2IDE)

This item comes with a 2 Years warranty

Star Tech 3.5in Drive Bay IDE to Single CF SSD Adapter Card ReaderThis Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter

Physical Characteristics
Product Width  : 10 cm [3.9 in]
Weight of Product  : 129 g [4.6 oz]

Prominence
Description CDW 75 - 1st Line  : StarTech.com 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader

Software
OS Compatibility  : OS independent; No software or drivers required

Special Notes / Requirements
Note  : This product does not support hot-swapping of flash cards while the PC is powered on. You must turn-off your computer to switch cards.

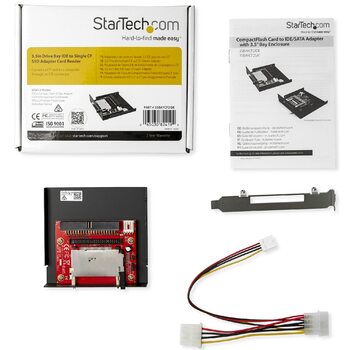

What's in the Box
Included in Package  : 3.5” Enclosure
Compact Flash to IDE Adapter

Physical Characteristics
Product Length  : 97 mm [3.8 in]
Product Height  : 25 mm [1 in]

Performance
Memory Media Type  : CF (Compact Flash I/II Card)
Maximum Data Transfer Rate  : 133 MBps

Packaging Information
Shipping (Package) Weight  : 215 g [7.6 oz]
Package Width  : 48 mm [1.9 in]
Package Length  : 22 cm [8.7 in]
Package Height  : 15.8 cm [6.2 in]

Hardware
Interface  : IDE

Environmental
Storage Temperature  : -55°C to 85°C (-67°F to 185°F)
Operating Temperature  : -55°C to 85°C (-67°F to 185°F)
Humidity  : 5% ~ 85% RH

Connector(s)
Host Connectors  : SP4 (4 pin, Small Drive Power) Male
IDE (40 Pin, EIDE/PATA) Male
Drive Connectors  : CompactFlash (50 pin) Slot

What's in the Box
Included in Package  : Full Profile Expansion Slot Bracket
Instruction Manual
SP4 to LP4 Molex Power Cable

Model # 35BAYCF2IDE
Barcode # 065030824194
Brand STAR TECH
Shipping Weight 0.2200kg
Shipping Width 0.220m
Shipping Height 0.050m
Shipping Length 0.160m
Shipping Cubic 0.001760000m3
Type Card Reader
