Star Tech USB to Audio Converter External SPDIF Sound Card

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech USB to Audio Converter External SPDIF Sound Card

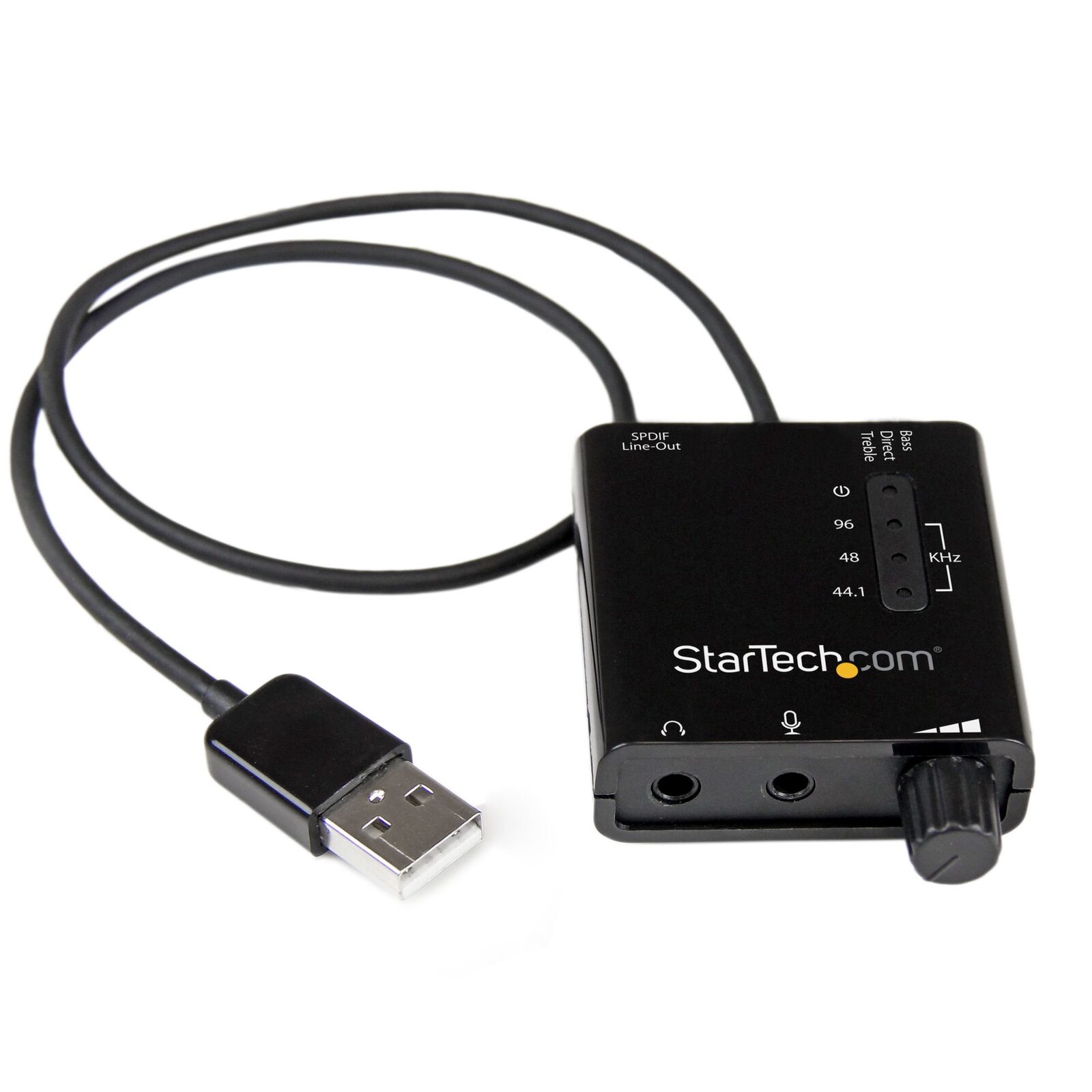

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.

For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).

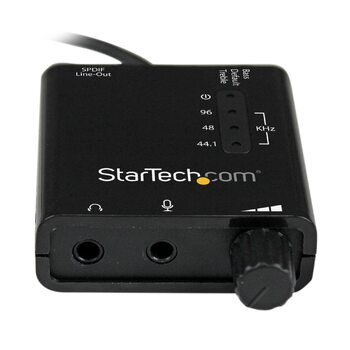

This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.

Please note that the microphone input is stereo only.

(ICUSBAUDIO2D)

This item comes with a 2 Years warranty

This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone

Performance
Audio Specifications  : 96 KHz / 24-bit Sample Rate

Approx 91dB SNR (A-weighting)

16-100ohm Headphone Drive Ability

Physical Characteristics
Cable Length  : 406.5 mm [16 in]
Color  : Black
Material  : Plastic
Product Height  : 1.6 cm [0.6 in]
Product Length  : 47 mm [1.9 in]
Product Width  : 46 mm [1.8 in]
Weight of Product  : 33 g [1.2 oz]

Power
Power Source  : USB-Powered

Software
OS Compatibility  : Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS X® 10.6 to 10.8


Special Notes / Requirements
Note  : 5.1 surround sound output is supported in Windows only
Microphone is stereo only.
System and Cable Requirements  : Available USB Port

What's in the Box
Included in Package  : Instruction Manual
Software CD
USB Stereo Audio Adapter

Packaging Information
Shipping (Package) Weight  : 106 g [3.7 oz]
Package Width  : 17.3 cm [6.8 in]
Package Length  : 14.3 cm [5.6 in]
Package Height  : 32 mm [1.3 in]

Indicators
LED Indicators  : Power
Playback / Recording sample rate

Hardware
Chipset ID  : Cmedia CM6533
Bus Type  : USB 2.0

Environmental
Storage Temperature  : 0°C to 70°C (32°F to 158°F)
Operating Temperature  : 0°C to 60°C (32°F to 140°F)
Humidity  : 10~90% RH (Non-Condensing)

Connector(s)
Connector Type(s)  : USB Type-A (4 pin) USB 2.0 Male
3.5mm Mini-Toslink (SPDIF, Optical) Female
3.5 mm Mini-Jack (4 Position) Female
3.5 mm Mini-Jack (3 Position) Female

Model # ICUSBAUDIO2D
Barcode # 065030852296
Brand STAR TECH
Shipping Weight 0.1100kg
Shipping Width 0.140m
Shipping Height 0.030m
Shipping Length 0.170m
Shipping Cubic 0.000792000m3
