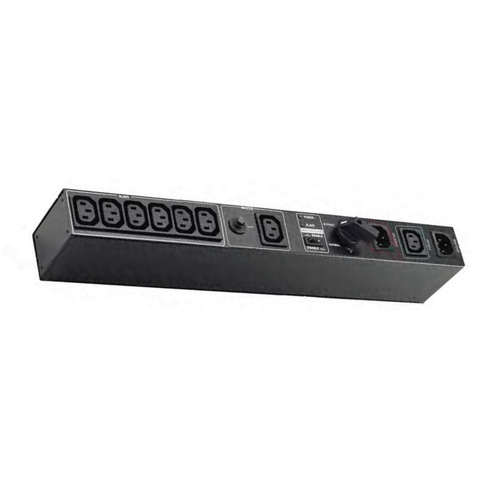

Powershield External Maintenance Bypass Switch For 1/2000VA UPS

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

PowerShield offers a versatile range of MBS solutions (Maintenance Bypass Switch) and PDUs (Power Distribution Units) for all types of UPS applications.

A correctly designed MBS enables a technician to perform maintenance on a UPS at any time, without interruption to normal business operations with no need to shut down your critical electrical load. While in the “Bypass” position the UPS will still receive power from the mains (or alternative power source) so that the technician can perform maintenance procedures, without interruption to the load.

Features:

  • No downtime. Routine maintenance can be performed at any hour

  • A PDU (Power Distribution Unit) with 7 outlets for distribution to your load

  • Rackmount - MBS can be mounted both horizontally or vertically (ORU) into a rack

  • Wallmount option, vertically or horizontally

  • UPS Mountable. Designed to attach to PowerShield Centurion RT and Commander RT ranges.

  • Suitable for all UPS topologies including offline, line interactive and true online double conversion

Includes:

  • 1x Powershield External Maintenance Bypass Switch

(UPPS-PSMBS2K)

Standard Consumer Warranty

  • Colour: Black

  • UPS Rating: 1-2KVA

  • Input connector - plug: 10A IEC 320 C14

  • Input lead (x1): 10Amp Australian Plug to IEC 320 C13

  • Dimensions approx.: 80 x 440 x 50 mm

Model # UPPS-PSMBS2K
Barcode # 9346909000750
Brand POWERSHIELD
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Type Power Distribution Unit
