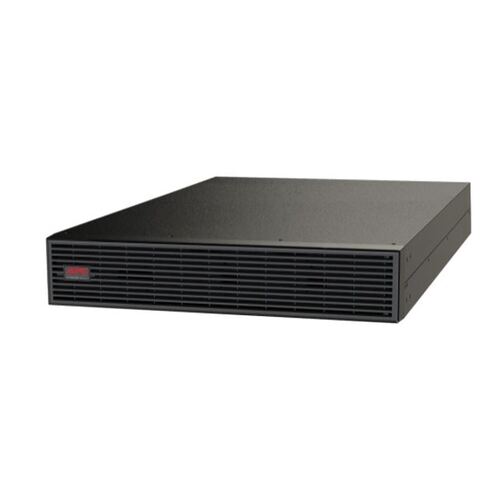

APC Easy UPS On-Line SRV 3000VA/2400W Rackmount Battery Backup Power
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Features:
-
Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
-
Automatically starts up the connected equipment upon the return of utility power.
-
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
-
Minimizes installation costs by enabling the use of smaller generators and cabling.
-
Provide easy-to-read status of the unit and utility power conditions.
-
Text and mimic diagrams that display modes of operation, system parameters and alarms.
-
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
-
Warns when a battery is not available to provide backup power.
-
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
-
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
-
Allows you to easily monitor your utility power and manage your UPS.
Includes:
-
Basic UPS signalling RS-232 cable
-
CD with software
-
Rack mounting brackets
-
Rack mounting support rails
-
USB cable
-
User manual
(UPAPC-SRV3KRILRK)
-
Colour: Black
-
Max Configurable Power (Watts): 2.4kWatts / 3.0kVA
-
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
-
Efficiency at Full Load: 88.0 %
-
Output Voltage Distortion: 3 %
-
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
-
Other Output Voltages: 220 V, 240 V
-
Load Crest Factor: 3 : 1
-
Topology: Double conversion online
-
Waveform type: Sine wave
-
Battery type: Lead-acid battery
Model # | UPAPC-SRV3KRILRK |
Brand | APC |
Shipping Weight | 66.8000kg |
Shipping Width | 0.480m |
Shipping Height | 0.800m |
Shipping Length | 0.600m |
Shipping Cubic | 0.230400000m3 |
Type | Smart-UPS |
