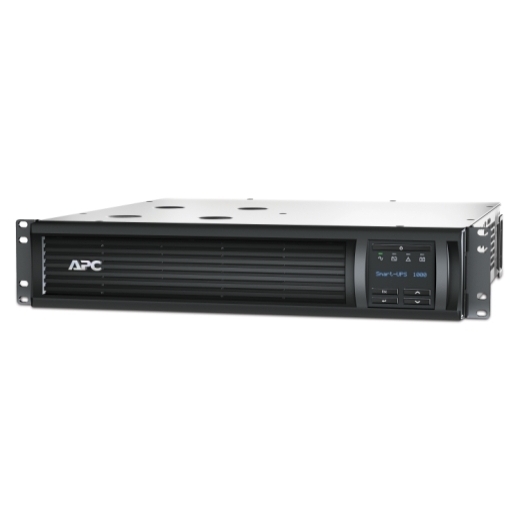

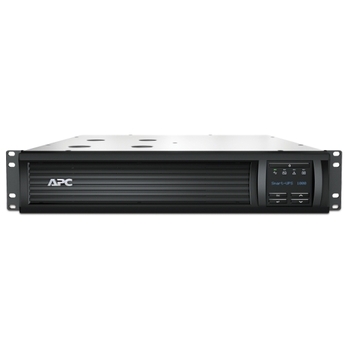

APC Smart-UPS 1000VA/700W Rack Mount UPS Battery Backup
or 4 payments of $386.25 with Learn more
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
APC Smart-UPS 1000VA, Rack Mount, LCD 230V with SmartConnect Port.
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Features:
Run time for load: 700W
Min-max: 70-700 W
Max. Capacity Used: 100%
Output power capacity: 700 Watts / 1.0kVA

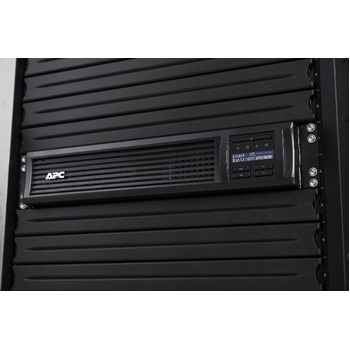

Rack Height: 2U

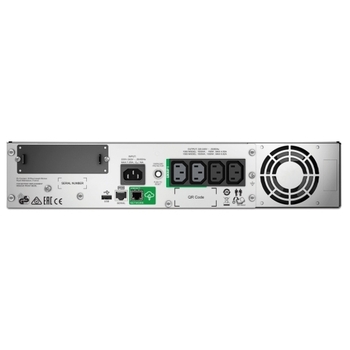

Output Connections
- (2) IEC Jumpers (Battery Backup)
- (4) IEC 320 C13 (Battery Backup)
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: IEC 320 C14
- Cold-start capable: Provides temporary battery power when the utility power is out.
- Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
- Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency: Reduces utility costs, generates less heat.
- Intelligent Card Slot: Customize UPS capabilities with management cards.
- Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartConnect: Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Manageability
- Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
- Serial connectivity: Provides management of the UPS via a serial port.
- Audible alarms: Provides notification of changing utility power and UPS conditions.
- USB connectivity: Provides management of the UPS via a USB port (not available on all models).
- LED status indicators: Quickly understand unit and power status with visual indicators.
Includes:
- 1x Documentation CD
- 1x Installation Guide
- 1x Rack Mounting Support Rails
- 1x USB Cable
(UPAPC-SMT1000RMI2UC)
Output
-
Max Configurable Power (Watts): 700 Watts / 1.0kVA
-
Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
-
Output Voltage Distortion: Less than 5 %
-
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
-
Other Output Voltages: 220 V, 240 V
-
Topology: Line interactive
-
Waveform type: Sine wave
-
Transfer Time: 6 ms typical : 10 ms maximum
Input
-
Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
-
Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V
-
Number of Power Cords: 1
-
Other Input Voltages: 220 V, 240 V
Batteries & Runtime
-
Battery type: Lead-acid battery
-
Typical recharge time: 3hour(s)
-
Replacement Battery: APCRBC157
-
Expected Battery Life (years): 4 - 6
-
RBC Quantity: 1
-
Battery Charge Power (Watts): 112 Watts
-
Runtime: View Runtime Graph
-
Efficiency: View Efficiency Graph
Communications & Management
-
Interface Port(s): RJ-45 Serial, SmartSlot, USB
-
Control panel: Multifunction LCD status and control console
-
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
-
Emergency Power Off (EPO): Optional
-
Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
-
Surge energy rating: 459Joules
-
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
-
Maximum Height: 86MM, 8.6CM
-
Maximum Width: 432MM, 43.2CM
-
Maximum Depth: 477MM, 47.7CM
-
Net Weight: 22.5KG
-
Shipping weight: 31.45KG
-
Shipping Height: 251MM, 25.1CM
-
Shipping Width: 594MM, 59.4CM
-
Shipping Depth: 603MM, 60.3CM
-
Colour: Black
-
Units per Pallet: 8.0
Environmental
-
Operating Temperature: 0 - 40 °C
-
Operating Relative Humidity: 0 - 95 %
-
Operating Elevation: 0 - 3048meters
-
Storage Temperature: -15 - 45 °C
-
Storage Relative Humidity: 0 - 95 %
-
Storage Elevation: 0 - 15240meters
-
Audible noise at 1 meter from surface of unit: 45.0dBA
-
Online thermal dissipation: 56.0BTU/hr
Model # | UPAPC-SMT1000RMI2UC |
Barcode # | 731304332985 |
Brand | APC |
Shipping Weight | 31.4500kg |
Shipping Width | 0.600m |
Shipping Height | 0.250m |
Shipping Length | 0.590m |
Shipping Cubic | 0.089904000m3 |
Type | Smart-UPS |
