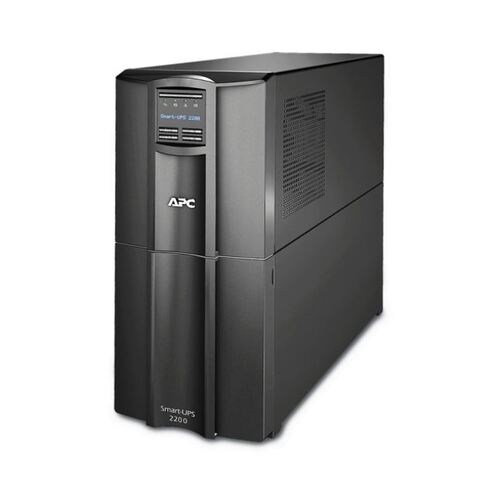

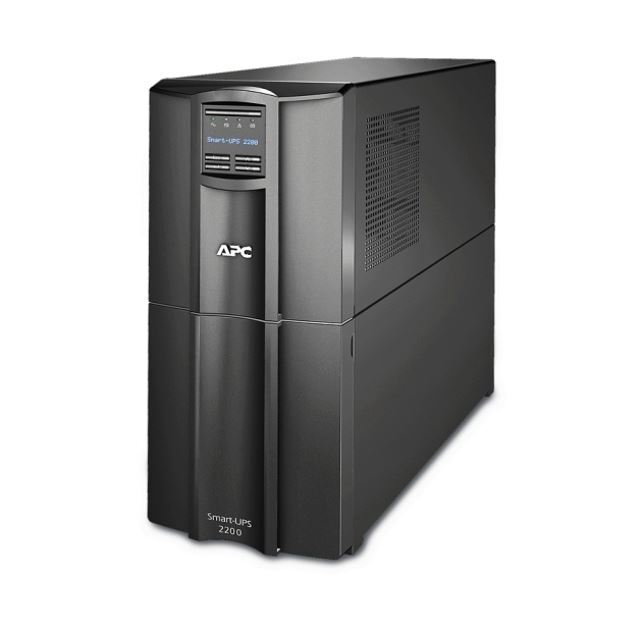

APC SMT2200IC Smart-UPS 2200VA/1980W Tower UPS Battery Backup

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

APC Smart-UPS 2200VA, Tower, LCD 230V with SmartConnect Port

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Features:
Run time for load: 1980W
Min-max: 198-1980 W
Max. Capacity Used: 100%
Output power capacity: 1.98kWatts / 2.2kVA

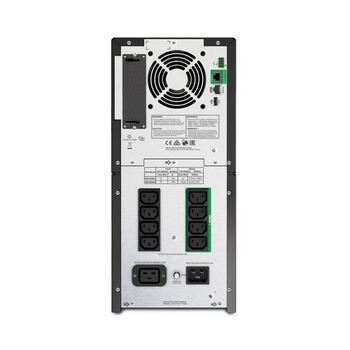

Output Connections

  • (2) IEC Jumpers (Battery Backup)
  • (8) IEC 320 C13 (Battery Backup)
  • (1) IEC 320 C19 (Battery Backup)

Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Input Connections: BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P

  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency: Reduces utility costs, generates less heat.
  • Intelligent Card Slot: Customize UPS capabilities with management cards.
  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot: Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group: Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect: Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • StruxureWare Data Center Expert compatible: Enables centralized management via StruxureWare Data Center Expert.
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits
Manageability

  • Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
  • Serial connectivity: Provides management of the UPS via a serial port.
  • Audible alarms: Provides notification of changing utility power and UPS conditions.
  • USB connectivity: Provides management of the UPS via a USB port (not available on all models).
  • LED status indicators: Quickly understand unit and power status with visual indicators.

Includes:

  • 1x APC Smart-UPS 2200VA Tower LCD 230V
  • 1x USB Cable

(UPAPC-SMT2200IC)

Standard Consumer Warranty

Output

  • Max Configurable Power (Watts): 1.98kWatts / 2.2kVA

  • Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage

  • Output Voltage Distortion: Less than 5 %

  • Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains

  • Other Output Voltages: 220 V, 240 V

  • Topology: Line interactive

  • Waveform type: Sine wave

  • Transfer Time: 6 ms typical : 10 ms maximum

Input

  • Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing

  • Input voltage range for main operations: 151 - 302 Adjustable, 160 - 286V

  • Number of Power Cords: 1

  • Other Input Voltages: 220 V, 240 V

Batteries & Runtime

  • Battery type: Lead-acid battery

  • Typical recharge time: 3hour(s)

  • Replacement Battery: RBC55

  • Expected Battery Life (years): 3 - 5

  • RBC Quantity: 1

  • Battery Charge Power (Watts): 260 Watts

  • Runtime: View Runtime Graph

  • Efficiency: View Efficiency Graph

Communications & Management

  • Interface Port(s): RJ-45 Serial, SmartSlot, USB

  • Control panel: Multifunction LCD status and control console

  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

  • Emergency Power Off (EPO): Yes

  • Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

  • Surge energy rating: 365Joules

  • Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height: 435MM, 43.5CM

  • Maximum Width: 197MM, 19.7CM

  • Maximum Depth: 544MM, 54.4CM

  • Net Weight: 50.2KG

  • Shipping weight: 61.9KG

  • Shipping Height: 699MM, 69.9CM

  • Shipping Width: 381MM, 38.1CM

  • Shipping Depth: 762MM, 76.2CM

  • Colour: Black

  • Units per Pallet: 9.0

Environmental

  • Operating Temperature: 0 - 40 °C

  • Operating Relative Humidity: 0 - 95 %

  • Operating Elevation: 0 - 3048meters

  • Storage Temperature: -15 - 45 °C

  • Storage Relative Humidity: 0 - 95 %

  • Storage Elevation: 0 - 15240meters

  • Audible noise at 1 meter from surface of unit: 45.0dBA

  • Online thermal dissipation: 275.0BTU/hr

Model # UPAPC-SMT2200IC
Barcode # 731304337317
Brand APC
Shipping Weight 61.9000kg
Shipping Width 0.760m
Shipping Height 0.700m
Shipping Length 0.380m
Shipping Cubic 0.202935000m3
Type Smart-UPS
