PowerShield Commander 2000VA/1800W Line Interactive Tower UPS
or 4 payments of $362.75 with Learn more
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
PowerShield Commander 2000VA/1800W Line Interactive Tower UPS is a sophisticated pure sine wave, line interactive UPS.
Besides providing Automatic Voltage Regulation (AVR) it also provides for a Pure Sine Wave output while in backup mode.
This UPS is a cost effective solution for protecting applications such as networking, telecom, security and motors to name a few.
-
Pure Sine Wave Output
-
Output Power Factor 0.9
-
Free, programmable Power Management
-
Ultra Modern, Informative LCD – Shows Battery Time Remaining
-
ECO Mode
-
Smart AVR
-
Emergency Power Off Function
-
Multiple Communication Available with faster SNMP Card
Includes:
-
1x PowerShield Commander 2000VA/1800W Line Interactive Tower UPS
(UPPS-C2000VA)
-
Colour: Black
-
Capacity (PF = 0.9): 2000 VA / 1800 W
-
Nominal Voltage: 240Vac
-
Acceptable Voltage Range: 162-290 VAC
-
Frequency Range: 50/60Hz ± 5Hz (auto sensing)
-
Voltage Regulation (AC Mode) 240Vac (Selectable 208/220/230Vac) ± 10% AVR
-
Voltage Regulation (Batt. Mode): ± 1.5% (before battery alarm)
-
Frequency Range (Batt. Mode): 50 Hz or 60 Hz ± 1 Hz
-
Current Crest Ratio: 3:1
-
Total Harmonic Distortion: 2% max @ 100% linear load, 5% max @ 100% non-linear load (before low battery alarm)
-
Transfer Time: 6ms (Typical), 10ms max.
-
Waveform (Batt. Mode): Pure Sine Wave
-
IEC Outlets: 10A, C13 x 3
-
Australian Sockets: 2
-
AC Mode: 98% (Advanced ECO design)
-
Battery Mode: 91%
-
Battery Type & Number: 12V / 9AH (x4)
-
Recharge Time: 4 hours recover to 90% capacity
-
Full Protection: Overload, thermal, short circuit, discharge and overcharge protection
-
Surge Protection: 1968 Joules / 39000 Amps
-
Operation Temperature: 0 - 40°C
-
Relative Humidity: 0-90% (RH non-condensing)
-
Noise Level: < 45dB
-

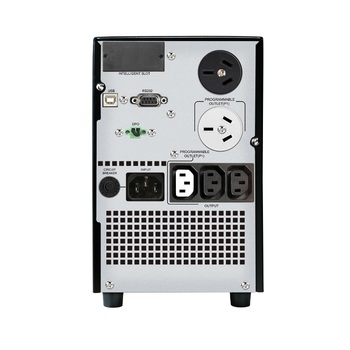

Interface: USB and RS-232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact
-
Software: PowerShield NetGuard® software - supports Windows based operating system, Linux, Unix and Mac
-
HID: Supports Windows, Apple, Linux, NAS and various industrial controllers
-
LCD Display/Alarm: AC mode, Batt. Mode, Load Level, Input Voltage, Output Voltage, Overload, Fault,
-
Battery Replacement, Low Batt., Batt. Time Remaining
-
Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Battery Replacement, Fault, Overload
-
Dimensions Approx.: 455 x1 45 x 220 mm(DxWxH)
Model # | UPPS-C2000VA |
Barcode # | 9346909000637 |
Brand | POWERSHIELD |
Shipping Weight | 21.2400kg |
Shipping Width | 0.550m |
Shipping Height | 0.340m |
Shipping Length | 0.240m |
Shipping Cubic | 0.044927000m3 |
Type | Desktop/Freestanding UPS |
