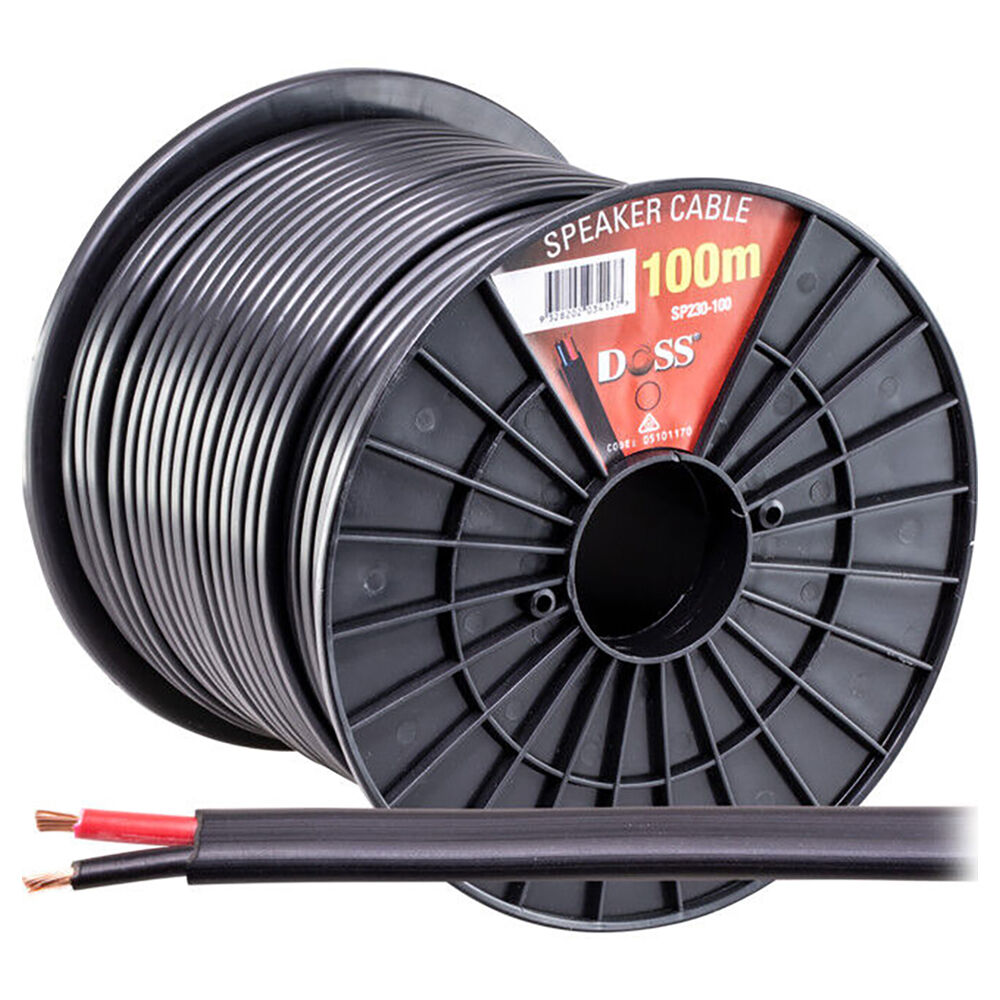

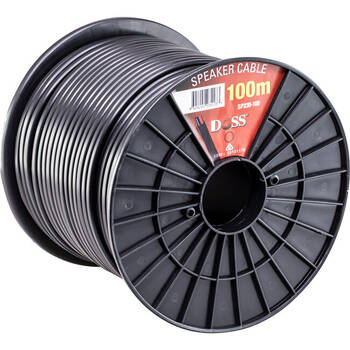

Doss 16AWG 100V Speaker Cable Double Insulated Cord Reel Roll Black 100M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss 16AWG 100V Speaker Cable Double Insulated Cord Reel Roll Black 100M

Features

  • 2x 1.5mm2 conductors composed of 30 strands of 0.25mm oxygen-free copper suit more for the 110V line speaker installation

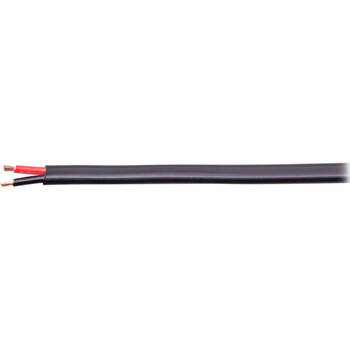

  • Double insulated fig 8 flat cable makes it easy to run
  • Black outer jacket clour makes it easy to distinguish from other cables
  • Reverse metre marking. Less scrap! See how much cable has been used and how much is left - before you pull the cable

Specifications

Inner conductor

Material

Oxygen-free copper

Construction

2-core 30strand/0.25mm

Section

1.5mm2

American wire guage

16AWG

Insulation

Material

PVC

Colours

Black / Red

Nominal Diameter

2.7mm

Nominal wall thickness

0.6mm

Outer Jacket

Material

PVC

Colour

Black

Diameter

4.4mm x 7.0mm

Nominal Wall Thickness

0.8mm

Other Characteristics

Max DC resistance

12.8 Ω/M

Rated voltage

300/600V

Operating temperature

70°C

Compliance

ROHS








Includes:
1 x Cable Roll Reel

(RP-05101170)

12 Months

Model # RP-05101170
Barcode # 9328202034137
Brand DOSS
Shipping Weight 11.5000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.007500000m3
Type Cable
