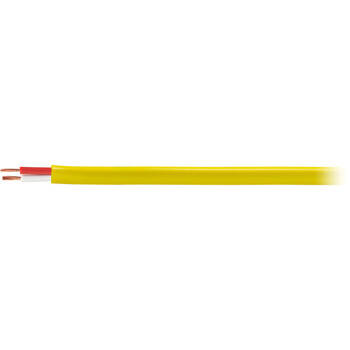

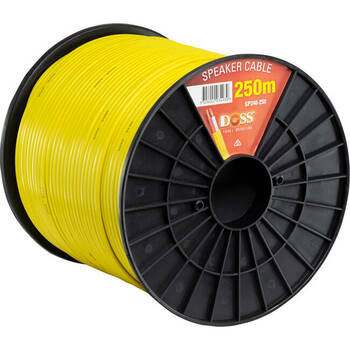

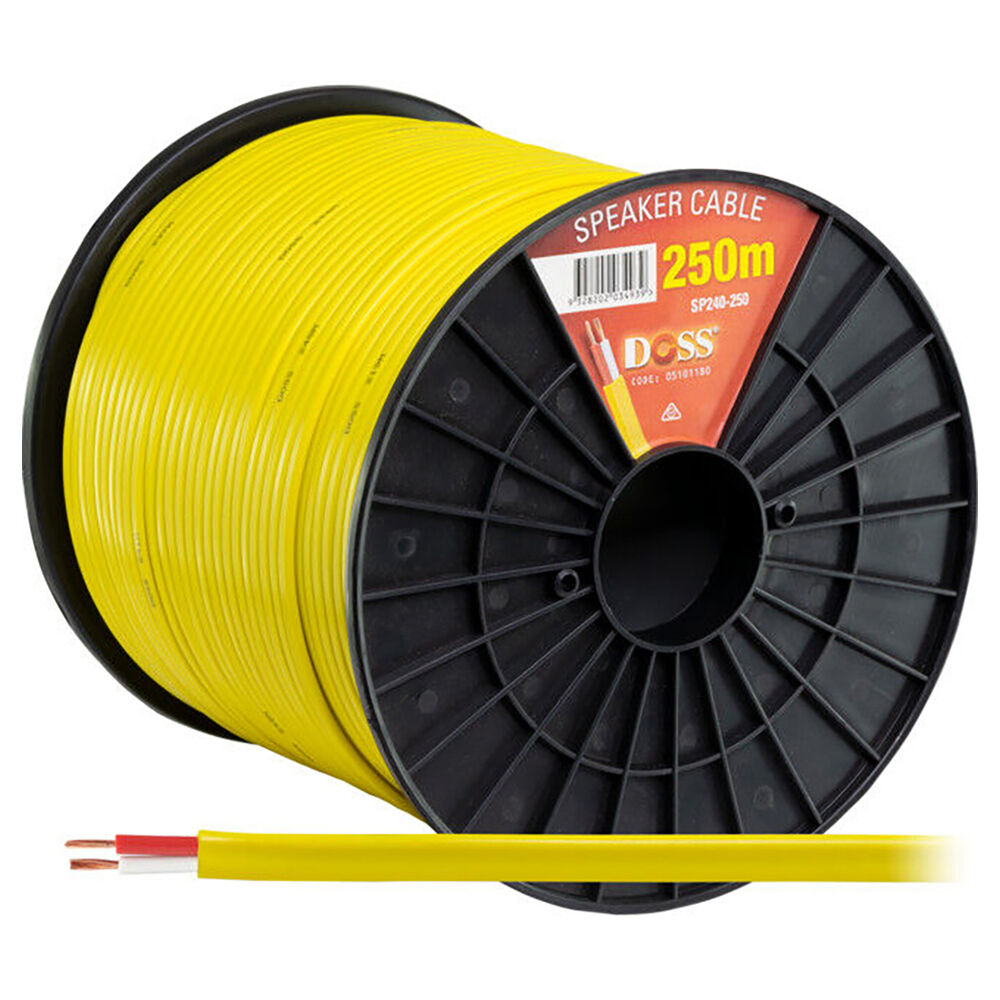

Doss 18AWG 100V Speaker Cable Double Insulated Cord Reel Roll Yellow 250M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss 18AWG 100V Speaker Cable Double Insulated Cord Reel Roll Yellow 250M

Features

  • 2x 0.75mm2 conductors composed of 24 strands of 0.20mm oxygen-free copper suit more for the 110V line speaker installation
  • Double insulated fig 8 flat cable makes it easy to run
  • Yellow outer jacket clour makes it easy to distinguish from other cables
  • Reverse metre marking, less scrap! See how much cable has been used and how much is left - before you pull the cable

Specifications

Inner conductor

Material

Oxygen-free copper

Construction

2-core 24strand/0.20mm

Section

0.75mm2

American wire guage

18AWG

Insulation

Material

PVC

Colours

Black / Red

Nominal Diameter

2.1-2.2mm

Nominal wall thickness

0.4mm

Outer Jacket

Material

PVC

Colour

Yellow

Diameter

3.1mm x 4.9mm

Nominal Wall Thickness

0.6mm

Other Characteristics

Max DC resistance

28 Ω/M

Rated voltage

300/500V

Operating temperature

70°C

Compliance

ROHS




Spool dimensions181 (H) x 200 ⌀ mm

Includes:
1 x Cable Roll Reel

(RP-05101180)

12 Months

Model # RP-05101180
Barcode # 9328202034939
Brand DOSS
Shipping Weight 11.5000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.007500000m3
Type Cable
