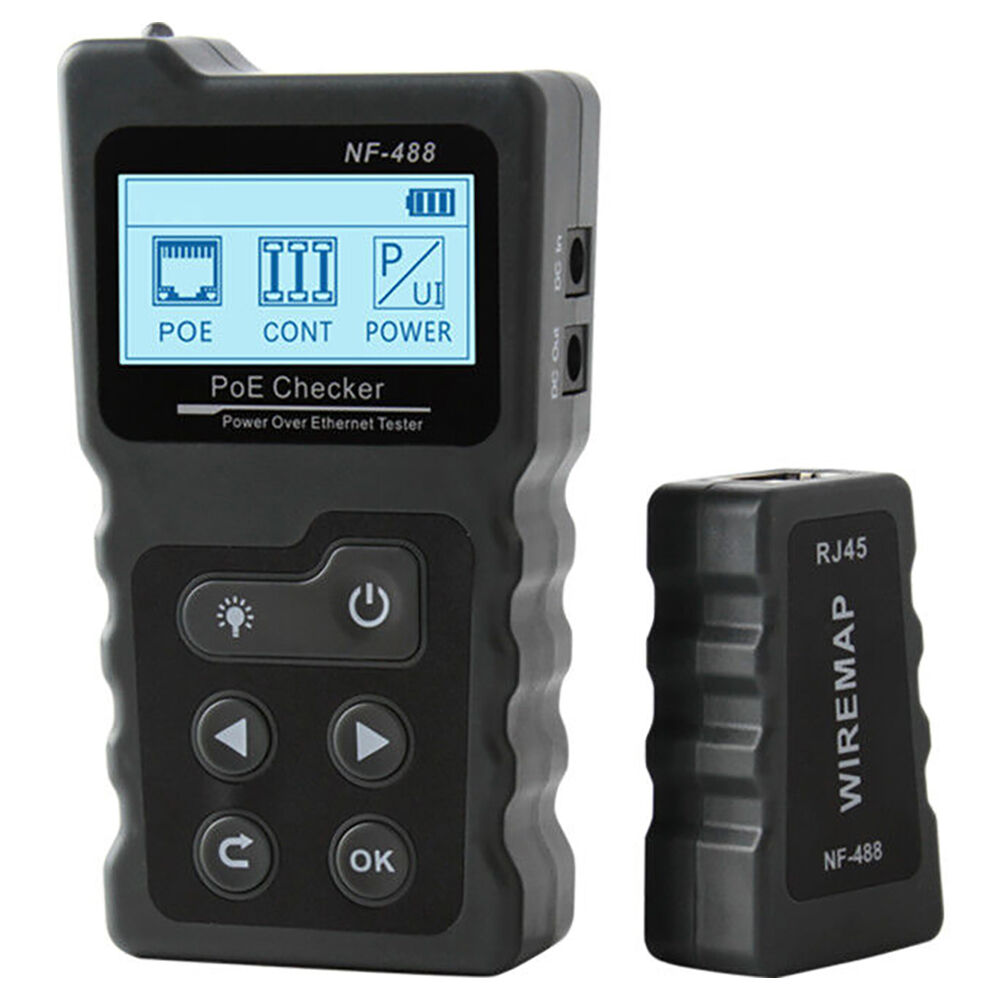

Doss NF488 3-in-1 PoE Power Tester Portable For LAN Network Cable Black
Features:- Test the information of the standard PoE device, such as af\at standard, power supply voltage, power supply polarity, and crossover mode.
- Identify the supply voltage, power supply polarity, and crossover mode of non-standard PoE devices.

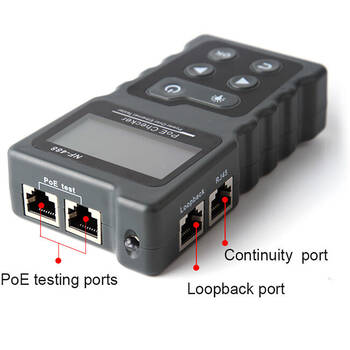

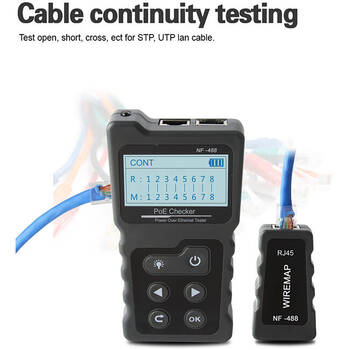

- Check the short circuit, crossover and open circuit status in the network cable with the far end.

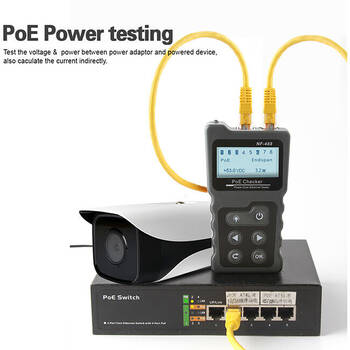

- Test the power consumed by DC appliances.
- The loop-back test function of the switch.
Specification:
NF-488 Transmitter specification | ||
Indictor | LCD 128x64 mm, with back light | |
Continulity function | Cable types | CAT5,CAT6 |
Check UTP/STP cable | YES | |
Cable short indicate | YES | |
Max testing range | 600m | |
Wire mapping | Emitter +Remote | |
Emitter + switch/routor | ||
PoE function | Test range | DC5-60V POE switch |
Standard identify | 802.3af/at ( standard/non-standard) | |
Test range power | 0-18W | |
Output interface | YES | |
Power function | Voltage test range | DC0-60V |
Current test range | 0-3A | |
power test range | 0-180W | |
Input voltage protection | DC48V 5mA | |
Max working current | =80mA | |
Loopback | Compatible with 10M ,100M,1000M switch | |
Power | 3*AAA battery (included) | |
NF-488 Remote Specification | ||
Ports | RJ45 | |
Function | Wire mapping for network cable | |
Input voltage protection | DC48V 5mA |
Includes:
1 x Power Tester
(44365142)
12 Months
Model # | 44365142 |
Barcode # | 9328202031785 |
Brand | DOSS |
Shipping Weight | 0.3100kg |
Shipping Width | 0.150m |
Shipping Height | 0.040m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000600000m3 |
Type | Power Supply Tester |
