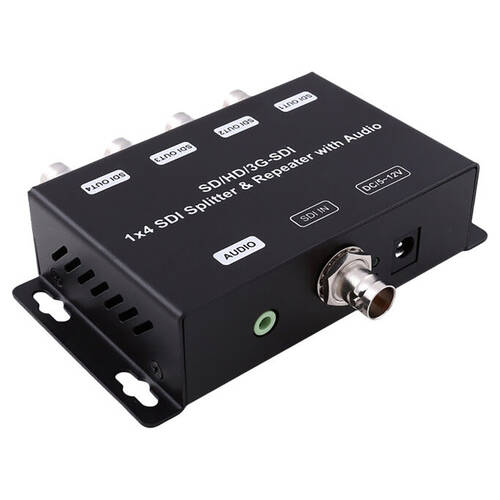

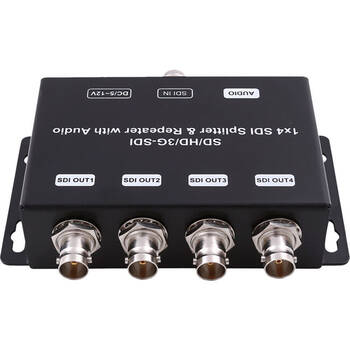

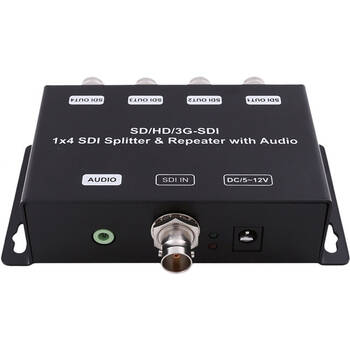

Doss 4-Way SDI Splitter & Repeater 1-IN 4-OUT w/ Audio Extraction Black

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss 4-Way SDI Splitter & Repeater 1-IN 4-OUT w/ Audio Extraction Black

Features

Features

  • Distributes 1 SDI input to 4 SDI outputs simultaneously
  • With Audio extraction (3.5mm stereo audio output)
  • Single unit can transmit up to 120m(Beldon 1694A)
  • Re-clocking function capability---unlimited repeater connection
  • Support SDI Standard :SD-SDI,HD-SDI, 3D-SDI
  • Data Rates: 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
  • Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
  • DC 5V 1A (included, Power consumption less than 2W)
  • With mounting ears

Specifications

Re-clocking Function Yes
SDI Standards SD-SDI, HD-SDI, 3G-SDI
HD/SD-SDI Detection Auto
Supported Protocols SMPTE 259M
SMPTE 292M
SMPTE 424M
Data Rates 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
Video Support 480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz,
1080p@23.98/24/25/29.97/30/50/59.94/60hz
SDI Signal Type SMPTE-292M, SMPTE-259M, SMPTE-424M
Output Impedance 75 ohms
Cable Equalization HD-SDI up to 120m
SD-SDI up to 200m
Unlimited repeater connection
Audio Sampling rate 48Khz
Impedance 75 ohms
Input 1x BNC [SDI]
Output 4x BNC [SDI], 3.5mm stereo audio jack
Power Adapter 5V1A DC
Power Consumption(Max) 2W
Dimension(LxWxH) L115xW64xH30mm
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 20~90% RH (no condensation)
Housing Material Metal case

Includes:
1 x Splitter/Repeater

(43151176)

12 Months

Model # 43151176
Barcode # 9328202020031
Brand DOSS
Shipping Weight 0.5400kg
Shipping Width 0.270m
Shipping Height 0.050m
Shipping Length 0.150m
Shipping Cubic 0.002025000m3
Type AV Splitter/Switcher
