Doss 5MP IR30M IP66 Bullet IP Camera Human Detect Surveillance CCTV White

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss 5MP IR30M IP66 Bullet IP Camera Human Detect Surveillance CCTV White

Features

  • Up to 5MP@20fps and 4MP/3MP/2MP@25fps frame rate
  • HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
  • Hikvision private protocol supported, plug and play with popular Hikvision NVRs
  • H.265/H.264 supported, saves bandwidth and storage space
  • 1/2.7" Megapixels CMOS and 3.6mm fixed lens
  • Humanoid detection
  • IR-Cut (Infrared-cut) filters for producing accurate color images
  • IP66 rating
  • 6x Normal IR Array Leds, IR distance up to 30-40m
  • DC12V or POE power options
  • Detection frame 5fps, detect 5 people at the same time
  • Support low bit rate and low latency
  • Support Smart IR to avoid Infrared over-exposure at night
  • Support ICR auto switch, realize D&N surveillance
  • Support 3D DNR and digital WDR
  • Support auto-electronic shutter to suit different surveillance environment
  • Support HTTPS transmission with password, default password 123456

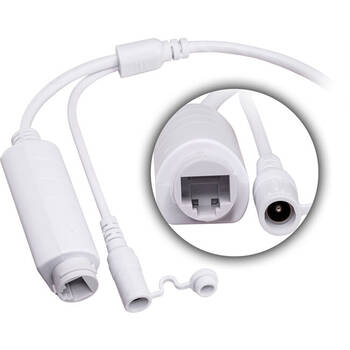

CONNECTIONS

  • [DC] 12V DC power input
  • [RJ45] Ethernet port



Specifications



Camera

Sensor 1/2.7" Megapixels CMOS
Lens 3.6mm lens
IR Distance 6x IR Array leds, IR distance up to 30-40 meters
D-WDR D-WDR (off/low/middle/high)
IR Led Control Auto/Manual/Off
DNR Off/Low/Middle/High/Higher
Defog Off/Low/Middle/High
Mirror Off/ Horizontal Mirror/Vertical Mirror/180 degree flip
Image Setting Brightness, Contrast,Sharpness,Saturation, Chroma

Humanoid Detection
Detection Quantity ≤5 people humanoid
Humanoid Size Humanoid Pixel≥40X40
Detection Ratio ≥99%(meet above requirement)
Capture Speed ≤1s
Max Detection Frame 5fps/s
Fault Detection Ratio ≤2%
Detection Part People with any posture including half body, head, hand, shoulder
Track People Support
Detection Mode Support static and dynamic humanoid detection
Detection method Support visible light image detection, and near infrared image detection
Detection Area Appointed area, default full-screen
Upload Method Upload it under private protocol
Trigger Method Video trigger

Audio & Video Encoding
Video Encode Standard H.265/H.264
Encoding Feature Main code stream: 5MP 2560x1920@20fps, 4MP 2560x1440@25fps, 3MP 2304x1296@25fps,
Sub-code stream:D1(720*576),VGA(640*360)
Video Code Rate Fixed code rate,variable code rate (Main stream code:160Kbps-4000kbps)
Video Type Composited stream/video stream

Network Function
Protocol TCP/IP,UDP,HTTP,HTTPS,DHCP,RTSP,DDNS,NTP,PPPOE,UPNP,SMTP
Connection Protocol ONVIF, SLINK, HIK
Preview Video Quantity Up to 5 users web login
Security Mode Authorized user name and password, HTTPS with password, AES connecting
with password, RTSP verification
Motion Detection Set detection area, can set multi-level sensitivity
Privacy Mask Alarm
Support 1 area setting
Privacy Mask Support 4 area privacy mask
Schedule Linkage Capture, email
Equipment Anomaly
Inspection		 Support network broken alarm, IP conflict alarm, illegal visiting alarm
Character Overlay(OSD) Title,time and date overlay, multi-line OSD, OSD color is optional

Port
Network Port RJ45 10M/100M network self-adjustable

General
Power Supply DC12V /POE Option
Protection IP66

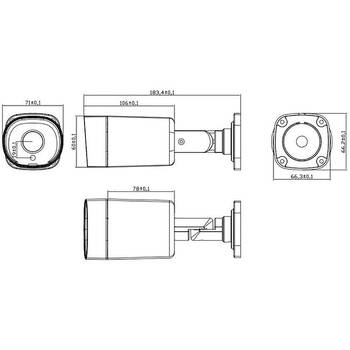

Size 183.00(L)*60.00(H)mm
Working Temperature -20°C ~ 50°C
Working Humidity 0%~90%

Includes:
1 x Camera

(43160609)

12 Months

Model # 43160609
Barcode # 9328202034335
Brand DOSS
Shipping Weight 0.4600kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
