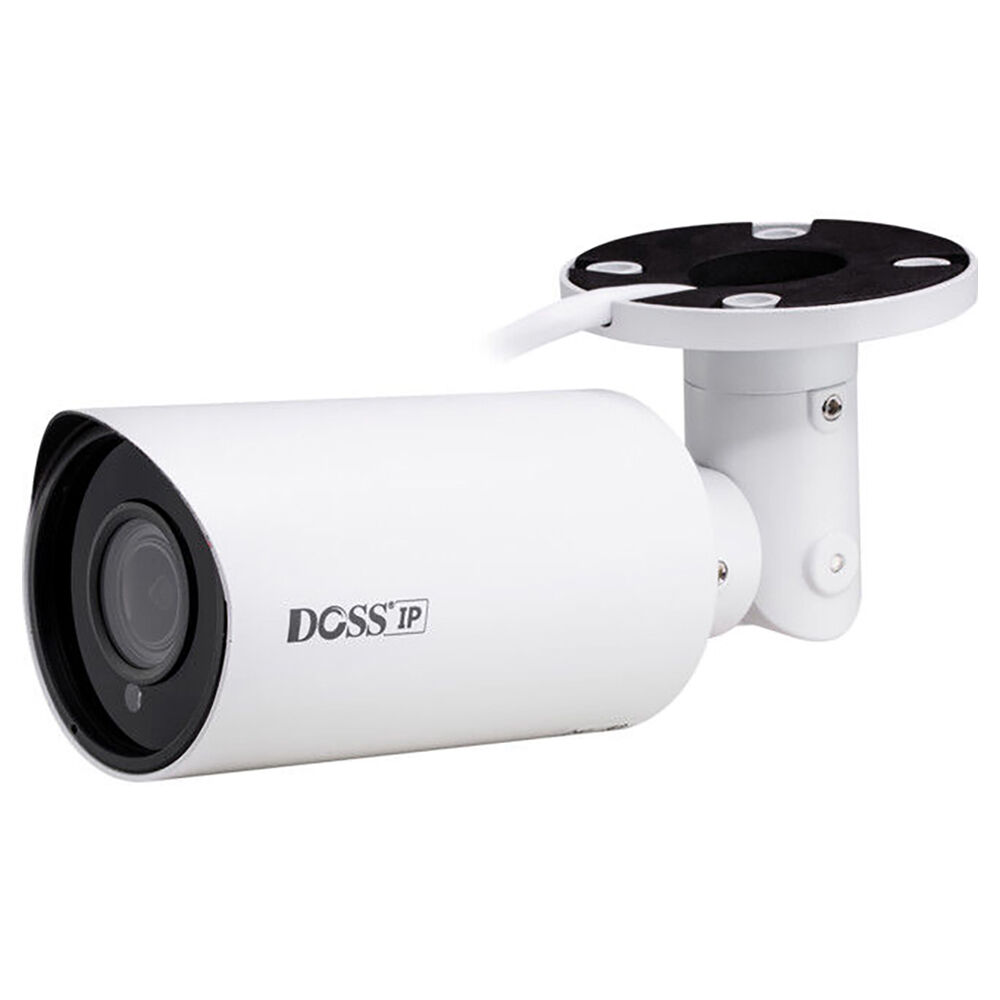

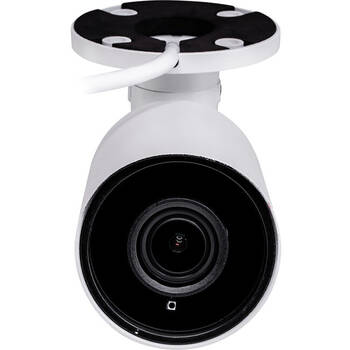

Doss 8MP IR30M IP66 Bullet IP Camera Human Detect Surveillance CCTV White

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss 8MP IR30M IP66 Bullet IP Camera Human Detect Surveillance CCTV White



Features

  • 8MP 3840*2160@ 20fps, 5MP(2592*1904@25fps)
  • HTML5 supported, no more ActiveX installation required, compatible with Chrome/Edge/Firefox/Safari internet explorer
  • Hikvision private protocol supported, plug and play with popular Hikvision NVRs
  • The 2.7-13.5mm motorized lens makes easy to adjust the focal length and zoom level
  • H.265/H.264 supported, saves bandwidth and storage space
  • 1/2.8" SONY Progressive Scan CMOS sensor
  • Humanoid detection
  • Support human alert voice broadcast
  • IR-Cut (Infrared-cut) filters for producing accurate color images
  • IP66 rating
  • 6x Normal IR Array Leds, IR distance up to 30-40m
  • DC12V or POE power options
  • Detection frame 5fps, detect up to 5-10 people at the same time
  • Support low bit rate and low latency
  • Support Smart IR to avoid Infrared over-exposure at night
  • Support ICR auto switch, realize D&N surveillance
  • Support 3D DNR and digital WDR
  • Support auto-electronic shutter to suit different surveillance environments
  • Support HTTPS transmission with the password, default password 123456

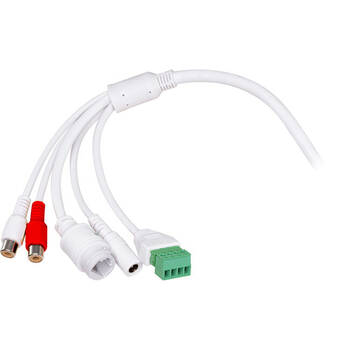

CONNECTIONS

  • [DC] 12V DC power input
  • [RJ45] Ethernet port
  • Alarm input/output
  • Audio output
  • Audio input



Specifications



CAMERA
Image sensor 1/2.8" SONY 8MP Progressive Scan CMOS
Min.illumination 0 Lux/F1.4 (IR ON) Color: 0.1Lux/F1.4, B/W: 0.05Lux/F1.4
IR distance 30-40m (6x IR Array leds)
Electronic shutter Auto/ Manual (1/25~1/10000),FLK
Day/ Night ICR switch, auto, color, B/W, ext
Lens 2.7-13.5mm Motorized lens
Lens interface Φ14
Output PAL/ NTSC adjustable
WDR WDR (Off/ Low/ Middle/ High)
Light board control Auto/ Manual/ Off / Support 0-100 brightness adjust
3D N/R Off/ Low/ Middle/ High/ Higher
Defog Off/ Low/ Middle/ High
Mirror Off/ Horizontal/ Vertical/ 180° rotation/ Corridor mode (90° rotation, 270° rotation)
Slow Shutter Off/On
Exposure control Auto/ Manual
Image setting Brightness, Contrast, Saturation, Sharpness, Hue

Humanoid Detection
Detection Quantity ≤10 person
Humanoid Size Humanoid pixel≥40X40
Detection Ratio ≥99% (meet above requirement)
Capture Corresponding speed ≤1s
Max Detection Frame 5fps/s
Fault Detection Ratio ≤2%
Detect Part People with any posture including half body,head,hand shoulder
Track People Support
Detection Mode Support static and dynamic humanoid detection
Detection Method Image detection during day or night time with lights or IR Leds
Detection Area Appointed area, default full-screen
Upload Method Upload it under private protocol
Trigger Method Video trigger

AUDIO/VIDEO ENCODING
Video compression H.265/H.264
H.265 Encoding Main Profile
H.264 Encoding BaseLine / Main Profile / High Profile
Encoding features Main stream:8MP(3840*2160)20fps,5MP(2592*1904), 4MP(2560*1440)\3MP(2304*1296)\2MP(1920*1080) 25fps
Sub-stream:D1(720*576),VGA(640*480),Q720P(640*360),CIF(352*288),QVGA(320*240)
Max. Resolution 3840*2160
Video bit rate Constant bit rate, variable bit rate (32Kbps~16Mbps)
Video type Complex stream/ Video stream
Audio compression G.711u
Audio bit rate 64Kbps

NETWORK
Network protocol TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,FTP
Access protocol ONVIF, SLINK, HIK
Browser Support IE, Chrome, Firefox, Safari
Video web preview 4 users max web login
User permission User add/modify/delete, permission management
Safe mode Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
Motion detection Set detection zone, multi-level sensitivity can be set
Tampering alarm 1 zone
Privacy Mask 4 zones
Event linkage Snapshot, FTP upload or email sending, alarm output linkage, preset linkage
ANR Support,match with NVR
Device exception Support network disconnected, IP conflict, illegal access alarm
OSD Title, time and date overlay, multi-line OSD, OSD color optional
DST Support
Snapshot Support snapshot, snapshot resolution is encoding resolution
System Upgrade Support remote upgrade

INTERFACE
Network Interface RJ45 10M/100M network adaptive
Power 12V DC power input
Audio 1ch input/1ch output
Alarm input 1ch
Alarm output 1ch

GENERAL
Operating temperature -20°C ~ 55°C
Operating humidity 0%-90%
Protection grade IP66
Power supply DC12V /PoE
Power consumption (max) <9W

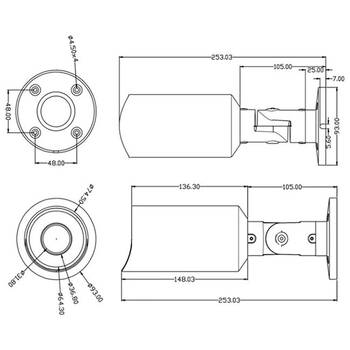

Dimensions(mm) 253mm(L)x93mm(H)

Includes:
1 x Camera

(43160905)

12 Months

Model # 43160905
Barcode # 9328202034298
Brand DOSS
Shipping Weight 0.8900kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
