Doss Dual CH UHF PLL Wireless Handheld Mic System w/ 2xMicrophone Kit Black

Doss Dual CH UHF PLL Wireless Handheld Mic System w/ 2xMicrophone Kit Black

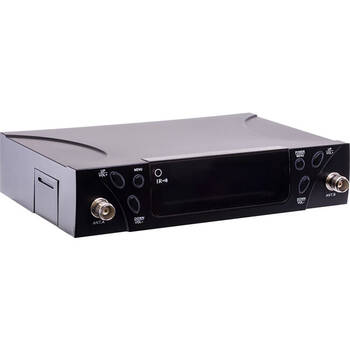

Dual Channel PLL Wireless System

• Diversity
• Tone control squelch
• Working range adjustable

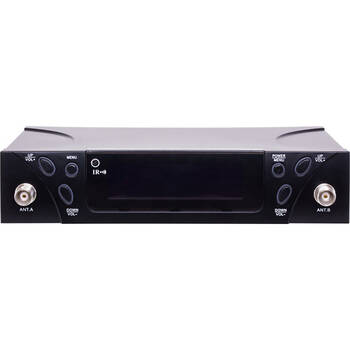

• LCD display

• 1600 channel selectable
• Group and channel selectable
• Smart option (Infrared SYNC)


Match with Stage Professional Handheld Microphone

• Adopting unidirectional condenser element, it createssuperb isolation and unsurpassed gain-before-feedback effect, optimized for vocal and speaking performances.
• Convenient multi-channel selector. You can choose the best frequency from the hundreds available forthe best performance effect.
• Noise absorption design eliminates external and handing noise completely.
• Elegant steel grille provides durable protection to its own shape and element.
• Durable structure modular design is easy for assembly and detachment, especially convenient to after-sales service.
• Low battery consumption, Adopting two 1.5V AA batteries, it works a longer time than expected.


Match with Body Pack Transmitter

• Innovated design of the body-pack transmitter can be matched with lavalier, headset or instrument connector, providing another option besides handheld microphone; further more, it sets your hand free!
• Professional TA4F connector prevents the connector from dropping off and creating unwanted noise.
• Low battery consumption. Adopting two 1.5V AA batteries, it works a longer time than expected.


SPECIFICATIONS
OVERALL SYSTEM

Carrier Frequency Range: UHF 654-694MHz

Stability: ±0.005%

Max Deviation: ±80KHz

S/N Ratio: <-110dB

T.H.D: <0.5%

Squelch: Tone control and noise lock dual squelch

Frequency Response: 30Hz - 20KHz

Operating Range: 100m(approximately 300 feet under typical conditions)

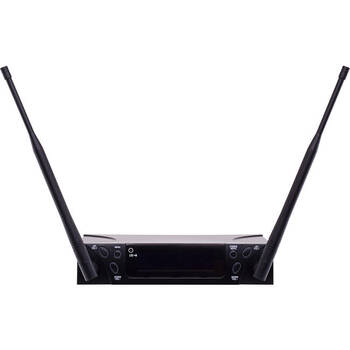

Receiving Mode: PLL Diversity (Dual Antenna)

Sensitivity: >-107dB

Image Rejection: Over 90dB

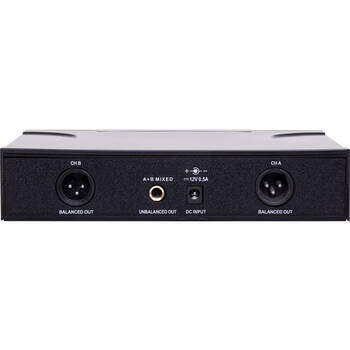

Audio Output: Balanced and Unbalanced

Power Requirement: AC 110-120V/220-240V
(50-60) External DC 12V 500mA

Dimensions (W x D x H): 240 x 130 x 42mm

Net Weight: Approx. 1.5kg

Cartridge: Dynamic

Antenna: Built-in

RF Output: <10mW

Spurious Emissions: <45dBc

Normal Deviation: ±35KHz

Maximum Deviation: ±80 KHz

Battery: Two 1.5V AA battery or 1.2V AA rechargeable battery

Battery Life: >8 Hours

Includes:
1 x Microphone System Kit
