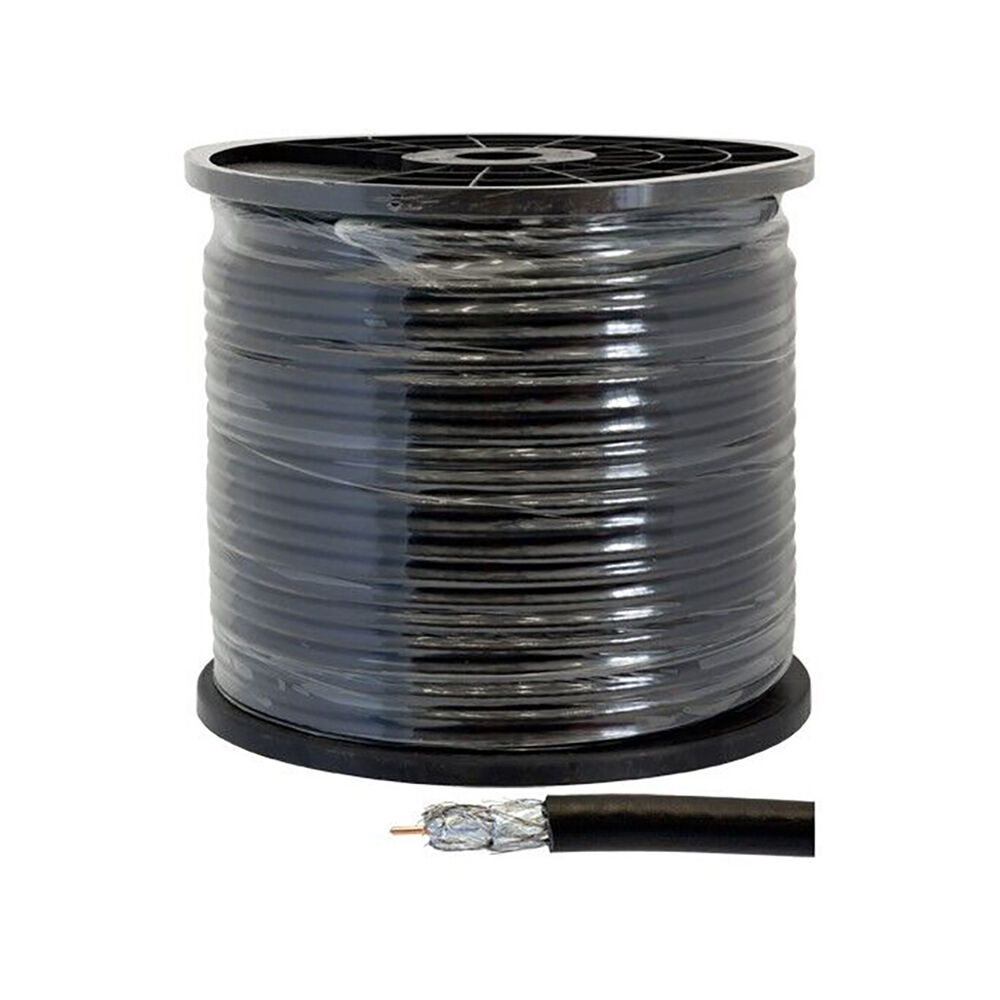

Doss Quad Shield RG6 75 OHM Coaxial Cable Cord Lead Reel Roll Black 100M

Doss RG6QUAD – 100m Roll

Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The sheilding is 2 x screening of aluminium tapecovered with woven aluminium braid outer conductor.

  • 1.02mm copper clad steel centre conductor (Conductivity 20%)
  • 2 x Aluminium 45% braid & 2 x Sealed APA tape
  • Dielectric: 4.57mm Foam Polyethylene
  • First Shield: Bonded AL Foil
  • Second Shield: 45% AL Braiding
  • Thrid Shield: AL/PET
  • Fourth Shield: 45% AL Braiding
  • Suitable for UHF, Pay, Satellite – Ø7.40mm Jacket
  • Nominal Impedance: 75Ω ±3
  • Nominal Velocity of Propagation: 85%
  • Nominal Capacitance: 50pF/M
  • Speaker Test: 4000V AC
  • Attenuation (dB/100m):
    • 4.538 @ 55MHz
    • 8.522 @ 211MHz
    • 12.828 @ 450MHz
    • 18.254 @ 870MHz
    • 19.642 @ 1000MHz
    • 23.899 @ 1440MHz
    • 29.673 @ 2150MHz
    • 35.386 @ 3000MHz



Available In



  • 305m Dispensing Box with Reversed Metre Marking (RG6QDB-305M)
  • 100m Roll (RG6QDR-100M)
  • 30m Roll (RG6QDR-30M)
  • By the metre (RG6QDB-1M)

Includes:
1 x Cable Roll Reel

(RP-05052076)

12 Months

Model # RP-05052076
Barcode # 9328202014351
Brand DOSS
Shipping Weight 5.5000kg
Shipping Width 0.180m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.002700000m3
Type Coaxial Raw
