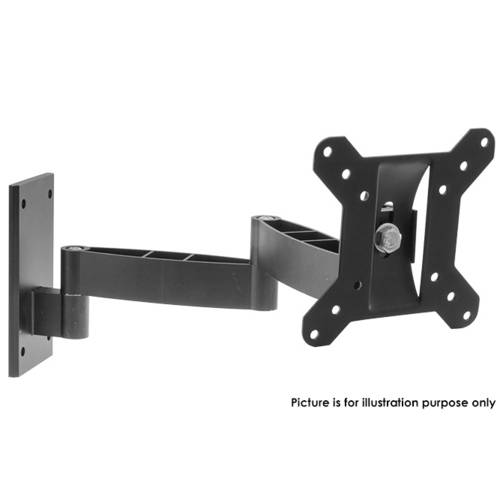

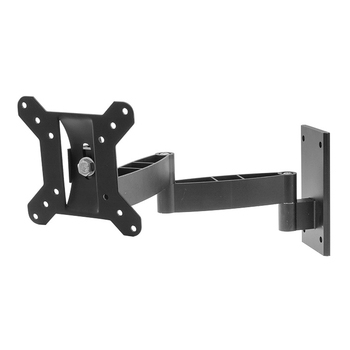

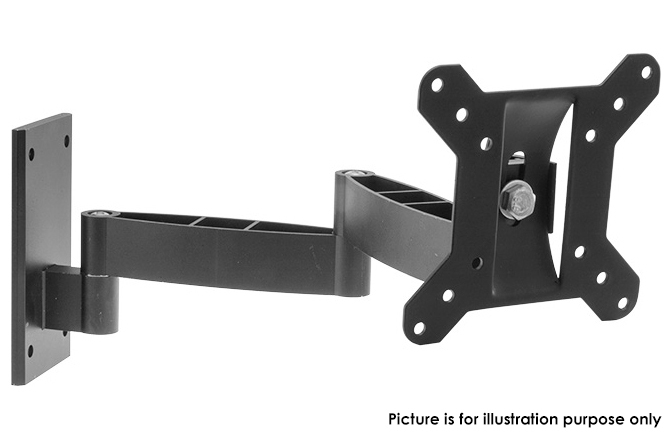

Lcd Led Wall Mount Bracket For Sony Tv 19-22" Series: Bx , S5700, S4000

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Perfect for Most LED & LCD TVs

This tilting & swivelling bracket which sits close to the wall with enough breathing space for the TV. It is designed for use with most 15" up to 22" screens in the market, it is also suitable for use with the bigger range of LED & LCDs . However, please note that NOT all bigger screens will fit, you will have to make sure the VESA messurments on the back of the screen is not bigger then 100mmX100mm and the wight is suitable. .

Vertical Tilting Action

This bracket also offers a -20 to +20 degree vertical tilt. Perfect if you wish to mount your TV high on the wall and tilt it down, for example in the bedroom or in the presence of curious young children with sticky fingers. The tilting action can also help to avoid annoying reflections on the screen

Swivel Action

This quality articulated dual arm bracket is perfect for mounting LCD / LED TV's or Monitors in Bedrooms, games rooms, offices or anywhere else you need to mount a screen in the corner on the wall!

The strong extension arm's allows you to have the screen up to 330mm from the wall or for areas that are tight for space the bracket can be folded against the wall to a minium of 95mm plus the width of your LCD or LED.

The versatile design allows for vertical tilt 20 degrees and horizontal tilt up to 180 degrees (dependant on screen size)

Brands Suitable for this Bracket

This Bracket is suitable for: Panasonic, Philips, Samsung, Sony, TCL, Kogan, Hisence, Sharp, Toshiba, Conia, Soniq, Hitachi and many more....


As with all wall brackets it is essential that this bracket is fixed to a timber stud when mounting on plaster board walls.


  • Easily adjustable
  • Forward and backwards tilt



This Item comes with 1 Year Warranty


  • Class: Small/ 3 Pivot
  • Mount: Wall/ Single Stud
  • Max Weight: 20 kg
  • Recommended TV Size: 15 ~ 22"
  • Compliance: Vesa
  • Vesa sizes (mm): 50 x 50 / 75 x 75 / 100 x 100
  • Tilt: 20°
  • Turn: 180°
  • Distance from Wall: 330 mm (max)
  • Material: Aluminium alloy
  • Bracket Weight: 0.69 kg
Model # LCD02AB
Barcode # 9328202007858
Brand DOSS
Shipping Weight 0.8500kg
Shipping Width 0.140m
Shipping Height 0.220m
Shipping Length 0.050m
Shipping Cubic 0.001540000m3
