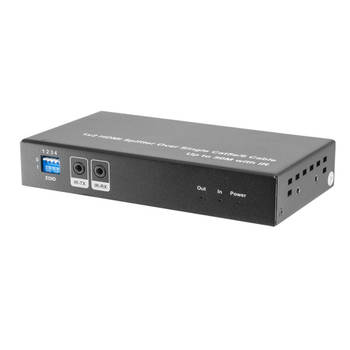

2 WAY HDMI OVER CAT5 SPLITTER w Loop out (TRANSMITTER ONLY)

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Extend the signal range or add more displays by using PRO2 (H2SPC5L) 2-way HDMI Over Cat5 Splitter (transmitter only).

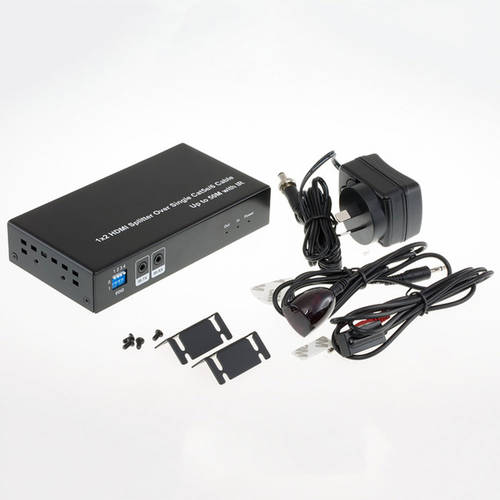

Item includes 1x2 HDMI splitter over single Cat5e/6 cable enables to split your source up to 50 meters with IR passes through. H2SPC5L also provides a local HDMI loop out for viewing locally.  Which means you can now view the video source locally as well as on the extended end!

Supports 480i/480p/720p/1080i/1080p at 60Hz video resolutions, VESA resolution and 3D video support!

Easy installation with no driver required!


Features:

  • Distribute 1 HDMI signal to 2 identical UTP outputs synchronously, with 1 HDMI loop output
  • Transmit over 50m using single Cat5E/6 cable.
  • Can be cascaded for 4 layers

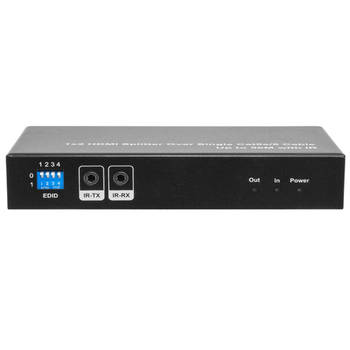

  • With wide-band Bi-Direction IR control(36-56kHz)
  • Supports full HD 1080p, VESA resolution 1920x1200
  • Supports Dolby TrueHD, DTS-HD Master Audio
  • Supports 3D

(H2SPC5L)

This item comes with a 12-month warranty.

H2SPC5L also provides a local HDMIloop out for viewing locally

  • Operating Temperature Range: -5 to +35℃(+23 to +95℉)

  • Operating Humidity Range: 5 to 90%RH (No Condensation)

  • Video Amplifier Bandwidth: 140MHz

  • Input Video Signal: 0.5-1.0 Volts P-P

  • Input DDC Signal :5 volts p-p(TTL)

  • Data transfer speed rate: 6.75Gbps(Maximum)

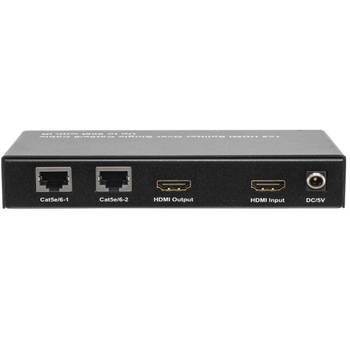

  • Input port: 1xHDMI

  • Output ports: 2xCat5e/6, 1xHDMI

  • Video Format Supported: DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P VESA resolution:1920x1200① 3D video support

  • Vertical Frequency range: 60Hz Support Audio Format DTS-HD

  • Master Audio, Dolby True HD, multi-channel 5.1, stereo etc ②

  • Transmission Distance: 1080P 8-bit 50m Over single cat5e or cat6 cable/24AWG/Solid③

  • Power consumption: 4W(Max)

  • Dimension: (L×W×H) L149xW79xH28mm

  • Net Weight: 317.7g

Model # H2SPC5L
Barcode # 9328202001047
Brand PRO2
Shipping Weight 0.6750kg
Shipping Width 0.220m
Shipping Height 0.070m
Shipping Length 0.180m
Shipping Cubic 0.002772000m3
Type HDMI Splitter
