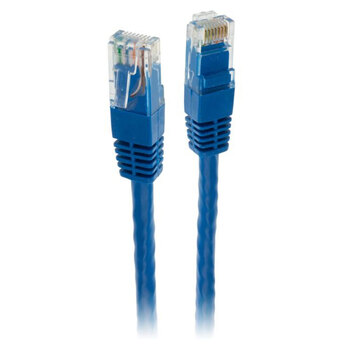

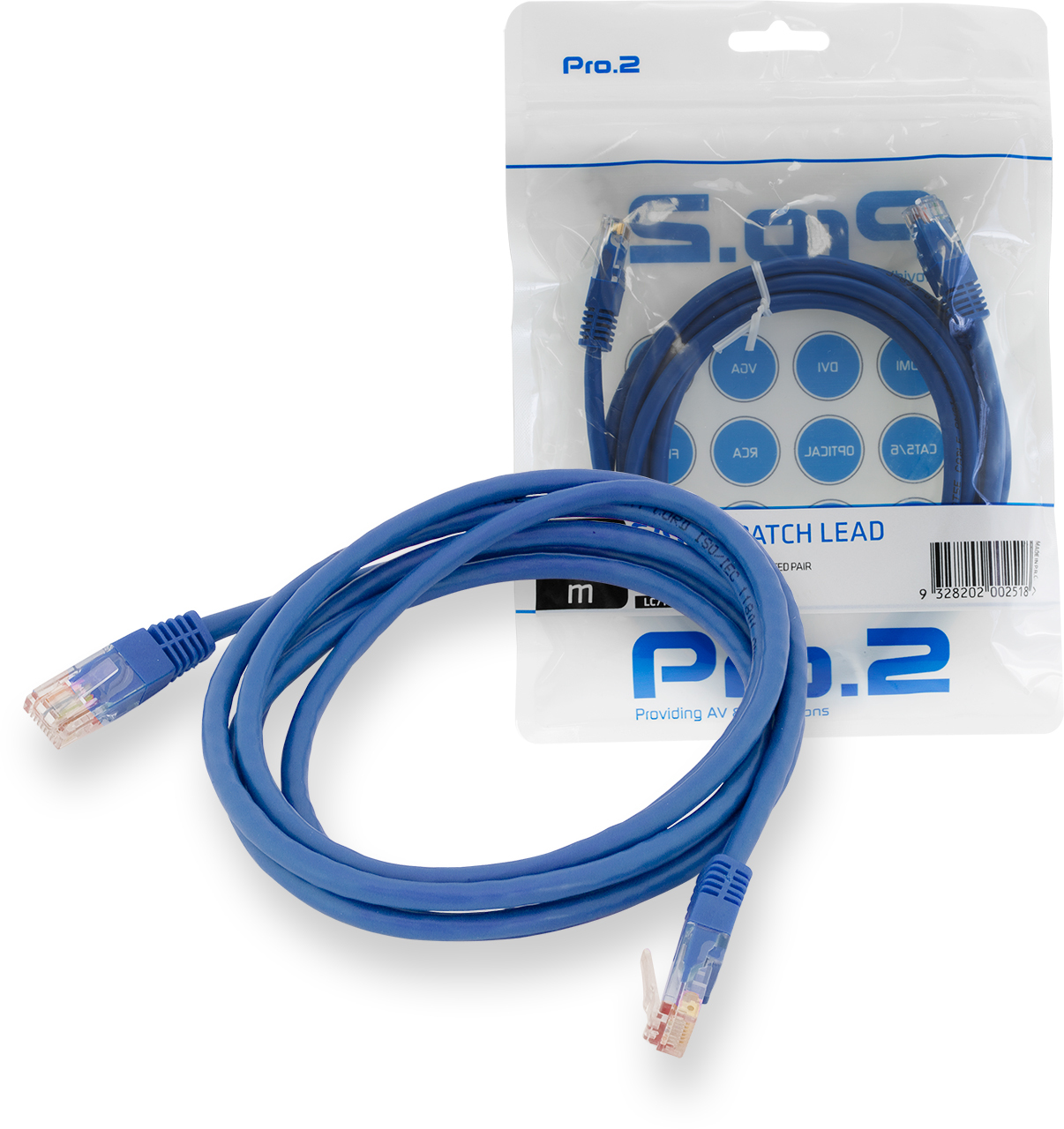

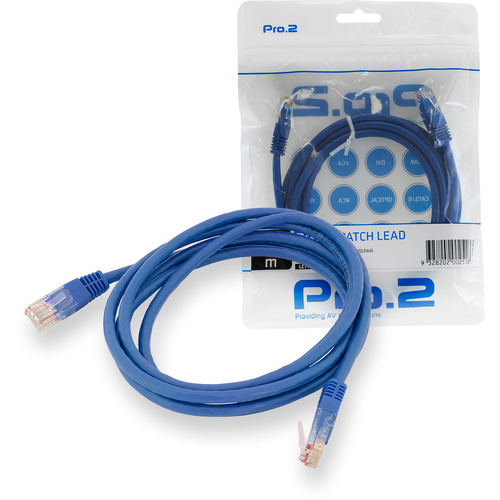

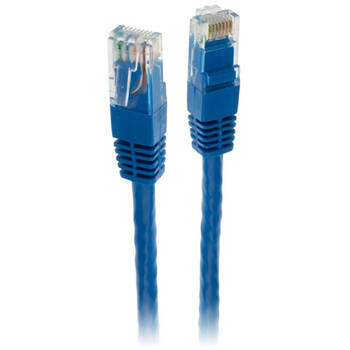

2M Blue CAT5E Patch Lead Network Cable

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Our coloured moulded patch cables provide the ultimate in reliability and can stand up to almost anything that comes their way.

Features

  • UTP stranded conductor Cat-5E patch cords with 4 twisted pairs using T568A colour code
  • Injection-molded plug boots provide excellent strain relief
  • Packaged in heat-sealed hang-sell bags
  • Complying Standards
    • AS/ACIF S 008:2001
    • ISO/IEC 11801
    • TIA/EIA 568C.2
  • Up to 100MBps data rate
  • Unshielded 24-gauge twisted pair
  • Austel approved
  • Wires per cable: 8 wires
    • Pairs per cable: 4 pairs
  • For high speed data applications
  • Kink resistant easy to install jacket
  • Impedance: 100 ±15 Ohms
  • Attenuation: 22.0 dB/ 100 m @ 100 MHz
  • Supports a variety of network systems i.e. Ethernet, Token Ring and X-DDT
  • Connector: RJ-45 Male connectors

(LC7112B)

This item comes with 3 months Warranty

UTP stranded conductor Cat-5E patch cords with 4 twisted pairs using T568A colour code

Length: 2M



Characteristic Impedence: 100±15Ω @ 1 ~ 350MHz



Conductor Construction: Bare Stranded Copper



Conductor Resistance: 89.2Ω/km/20°C max



Conductor Size: 24AWG x 4pairs



Dielectric Strength: AC 1.75kV/0.15sec



Insulation Material: HDPE



Jacket Material: PVC



Mutual Capacitance: 56pF/m max



Propagation Delay: 538nS/100m max @ 350MHz



Standards Compliance: ISO/IEC 11801; TIA/EIA-568-B.2



Structural Return Loss: 19.0dB min at 350MHz



Jacket Diameter: 5.5±0.15mm



Connector Type(s): 50 micron gold-plated connector

Model # A3L791B02M-YLWS
Barcode # 9328202002518
Brand PRO2
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.110m
Shipping Length 0.020m
Shipping Cubic 0.000220000m3
Type Ethernet Patch (RJ-45)
