Samson MD1 Mono Passive Direct Box

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

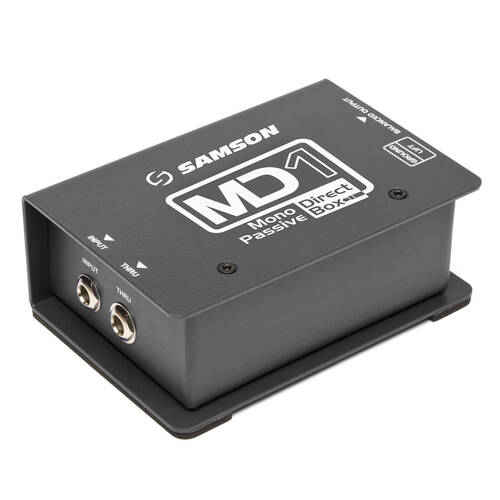

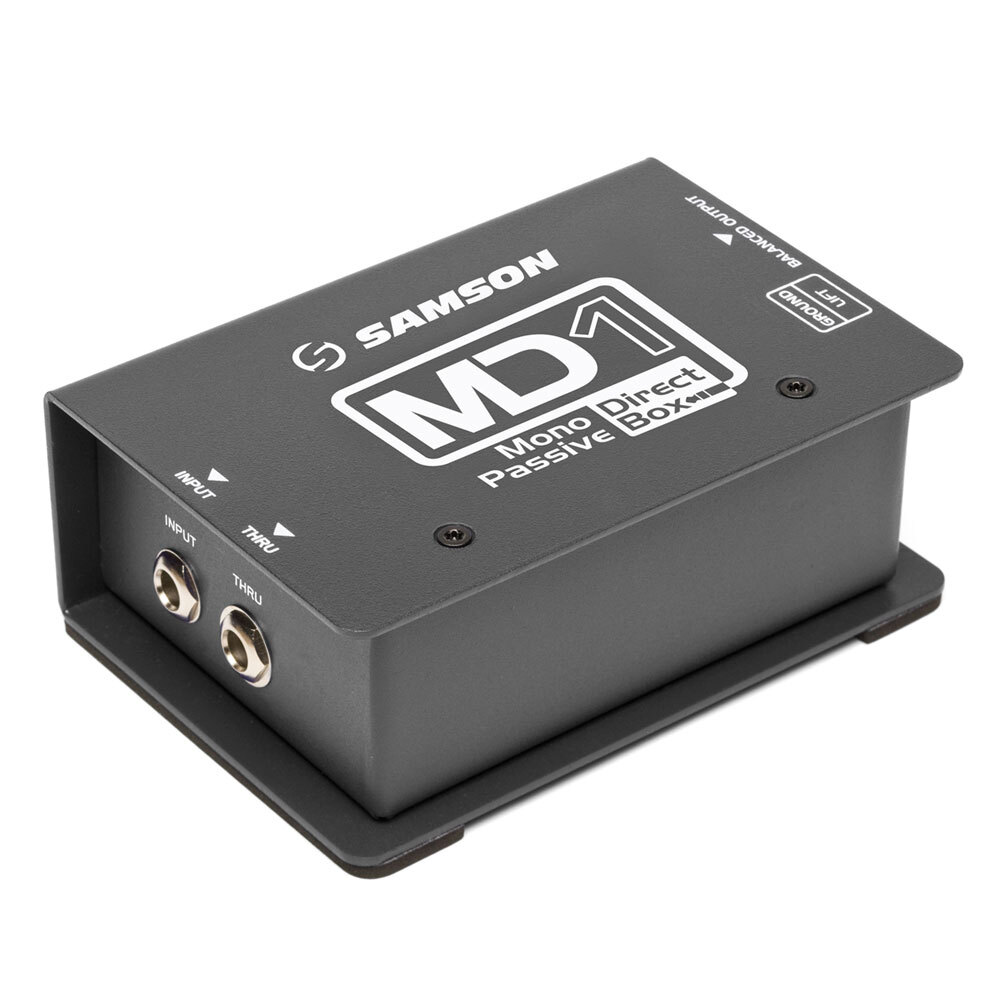

Samson MD1 Mono Passive Direct Box features Samson’s STL transformer, which allows you to send your instrument and amp signals to the main mixing board with confidence.

The MD1 provides both parallel throughputs and outputs to simultaneously route your signal to an onstage amplifier and mixer.

The STL transformer gives the MD1 a flat frequency response that will maintain the natural sound of your instrument and provide excellent isolation from electrical and RF interference.

  • All-metal, impact-resistant design

  • Samson STL transformer

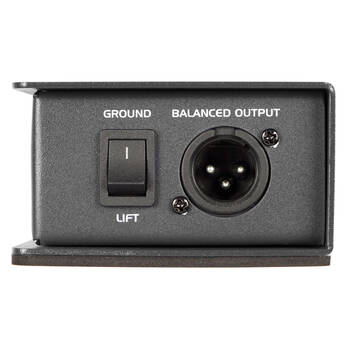

  • Ground Lift switch

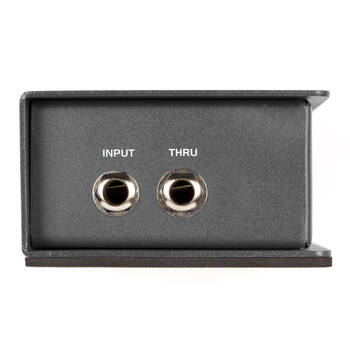

  • 1/4" Input and Thru

  • Balanced XLR output

  • No Phantom or Battery power required

  • Frequency response of 18Hz–40kHz

Includes:

  • MD1 Direct Box

  • Manual

(SAMD1)

This item comes with a 12-month warranty.

The STL transformer gives the MD1 a flat frequency response that will maintain the natural sound of your instrument and provide excellent isolation from electrical and RF interference.

  • Colour: Black

  • Type: Mono Passive Direct Box

  • Frequency Response: 18Hz to 40kHz ±0.1dB

  • Maximum Input: +20dBu 0.35% THD

  • Dynamic Range: >100dB @ Balanced Output

  • Noise Floor: -117dB

  • Total harmonic distortion: <0.03% from 20Hz to 40kHz

  • Input impedance: 400kΩ

  • Output Impedance: 250Ω ±20%

  • Transformer: Samson STL

  • Transformer Ratio: 15:1

  • Ground Lift: Disconnects XLR pin-1 (Output)

  • Connectors: 1/4” Phone Jack, unbalanced (In & Thru) XLR, balanced (Output)

  • Construction 14 Gauge Steel Chassis

  • Dimensions: 127 x 86 x 49.6 mm

  • Weight: 680g

Model # SAMD1
Barcode # 809164018070
Brand SAMSON
Shipping Weight 0.7550kg
Shipping Width 0.140m
Shipping Height 0.060m
Shipping Length 0.110m
Shipping Cubic 0.001000000m3
Type Mono Passive Direct Box
