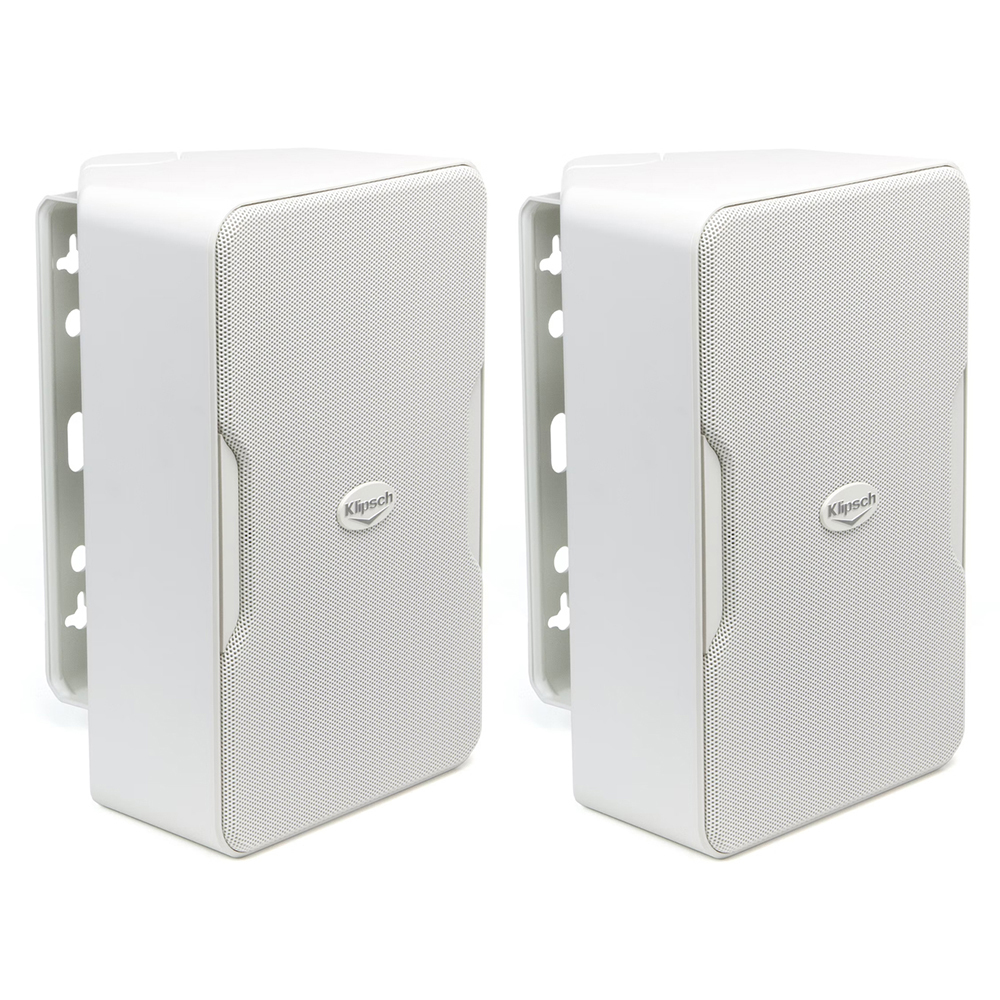

Klipsch CP-6 Indoor/Outdoor Speaker Pair White

COMPACT, HIGH PERFORMANCE INDOOR/OUTDOOR 70/100 VOLT LOUDSPEAKER

The Klipsch Compact Performance CP-6T cabinet speaker, with its weather-resistant design combined with its small stature, is the perfect 70/100 Volt distributed audio solution for retail, hospitality, restaurants and bars, whether operation is indoors or out. The proprietary Tractrix® Horn assures a highly efficient design that reproduces sound with unmatched low-distortion clarity and detail at both foreground and background volume levels. The conical-shaped, long-throw woofer is designed for minimal cone breakup for more accurate low frequency response and is reinforced with dual, front-firing ports in a bass-reflex design for maximum bass output wherever the speaker is located. The 90° x 90° horn dispersion assures wide, even coverage pattern in either a horizontal or vertical position. Traditional Klipsch efficiency provides maximum output with minimum wattage.

FAST, EASY INSTALLATION WITH A REFINED LOOK
The CP-6T makes a highly aesthetic statement, designed to have an appealing look from all angles with its integrated bracket and its ability to be tightly mounted into a wall-to-wall or wall-toceiling corner due to its V-shaped rear profile. The front bracket attachment combined with front baffle speaker terminals assures a safe, easy, one-screwdriver installation. Tool-free 15° increment angle adjustment makes positioning a breeze. Tap settings are also conveniently front-baffle placed for quick access. If needed, the CP-6T is provided with dual 1/4”, 20 thread, rear-positioned inserts for utilization of a third party bracket and/or a safety cable attachment.

OUTPUT THAT OUTPACES ITS DIMINUTIVE SIZE
With high sensitivity combined with multiple tap settings, the CP-6T is the perfect choice for numerous commercial applications of varying sizes. Its 8 ohm bypass allows quick adaptability for venues that specify separate 70/100 Volt and low impedance zones in the same system.

• FREQUENCY RESPONSE1 83Hz-22kHz +/- 3dB
• POWER HANDLING2 75 w (300 peak) (8 ohm bypass)
• MAX CONTINUOUS OUTPUT3 111 dB (8 ohm bypass)
• 30 watt Tap 105 dB 70 V/108 dB 100V
• 15 watt Tap 102 dB 70 V/105 dB 100V
• 7v Tap 99 dB 70 V/102 dB 100V
• 3.75 watt Tap 96 dB 70V/99 dB 100V
• SENSITIVITY4 94 dB
• NOMINAL IMPEDANCE 8 ohm (8 ohm bypass)
• TWEETER .75" (1.9cm) aluminum dome tweeter
• HIGH FREQUENCY HORN 90° x 90° Tractrix® Horn
• WOOFER 5.25" (13.3cm) long-throw IMG woofer
• CROSSOVER FREQUENCY 3kHz 12dB octave
• ENCLOSURE TYPE Bass-reflex via dual front-firing ports
• ENCLOSURE MATERIAL Anti-resonant, mineral-filled PPC; paintable, weather resistant
• GRILLE Powder-coated aluminum w/rotatable logo
• TERMINALS Front baffle mounted accessed via rear pull-through
• WIRE GAUGE ACCOMMODATED up to 16AWG

Item Dimensions Approx (Speaker): 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.1"(15.5cm) D

Includes:

2x Speakers
2x Grilles
2x Brackets
1x Manual
1x Mounting Template
4x Bracket Retaining Screws
